Product Information

Manufacturer

MSI

Series

B650

Variant

B650 EDGE WIFI

Release Year

Unknown

Manufacturer Color

Unknown

UPC

824142301074

EAN

0824142301074

Part Numbers

MPG B650 EDGE WIFI 7E10-001R B650 EDGE WIFI 911-7E10-002 B650EDGEWIFI

BuildCores ID

5ukx0sf72

General Specifications

Socket

AM5

Form Factor

ATX

Chipset

AMD B650

Max Memory

256 GB

Memory Type

DDR5

Memory Slots

Colors

BLACK GREY

PCIe Slots

1 x PCIe 4.0 x16 1 x PCIe 4.0 x2 1 x PCIe 3.0 x1

M.2 Slots

M 2280/2260 PCIe 5.0 x4 M 2280/2260 PCIe 4.0 x4 M 2280/2260 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek RTL8125BG 2.5 Gb/s

WiFi

Wifi 6E Bluetooth 5.3

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Main Power

24-pin

CPU Power

8-pin 8-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Audio Chipset

Realtek ALC4080

Audio Channels

7.1

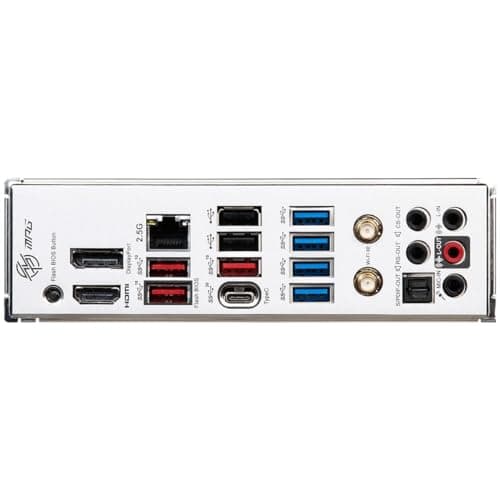

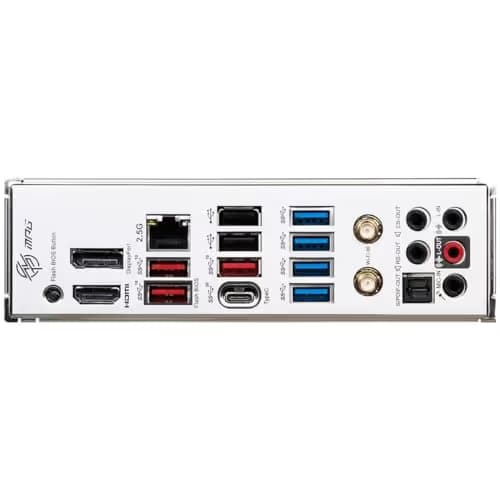

Back Panel Ports

1 x Flash BIOS Button 1 x DisplayPort 1.4 1 x HDMI 2.1 port 3 x USB 3.2 Gen 2 10Gbps Type-A ports 1 x USB 3.2 Gen 2x2 20Gbps Type-C port 4 x USB 3.2 Gen 1 5Gbps Type-A ports 2 x USB 2.0 Type-A ports 1 x 2.5 Gbps LAN (RJ45) port 2 x Wi-Fi Antenna connectors 5 x Audio jacks 1 x Optical S/PDIF Out connector

See an issue?Report an issue on OpenDB

Motherboard

MSI B650 MPG EDGE WIFI AM5 DDR5 ATX

Name: MSI B650 MPG EDGE WIFI AM5 DDR5 ATX
Brand: MSI
SKU: 5ukx0sf72

Best Price

$249.74

via

	—	$249.74
Loading... Loading
	FREE s/h	$239.99
Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	In stock	$249.74 via Amazon Loading... Loading
	FREE s/h	—	Out of stock	$239.99 via B&H Photo Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	In stock	$249.74 via Amazon Loading... Loading
	FREE s/h	—	Out of stock	$239.99 via B&H Photo Loading... Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History

Loading chart...

* Amazon pricing is not included in price history graphs.

Product Information

Manufacturer

MSI

Series

B650

Variant

B650 EDGE WIFI

Release Year

Unknown

Manufacturer Color

Unknown

UPC

824142301074

EAN

0824142301074

Part Numbers

MPG B650 EDGE WIFI 7E10-001R B650 EDGE WIFI 911-7E10-002 B650EDGEWIFI

BuildCores ID

5ukx0sf72

General Specifications

Socket

AM5

Form Factor

ATX

Chipset

AMD B650

Max Memory

256 GB

Memory Type

DDR5

Memory Slots

Colors

BLACK GREY

PCIe Slots

1 x PCIe 4.0 x16 1 x PCIe 4.0 x2 1 x PCIe 3.0 x1

M.2 Slots

M 2280/2260 PCIe 5.0 x4 M 2280/2260 PCIe 4.0 x4 M 2280/2260 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek RTL8125BG 2.5 Gb/s

WiFi

Wifi 6E Bluetooth 5.3

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Main Power

24-pin

CPU Power

8-pin 8-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Audio Chipset

Realtek ALC4080

Audio Channels

7.1

Back Panel Ports
