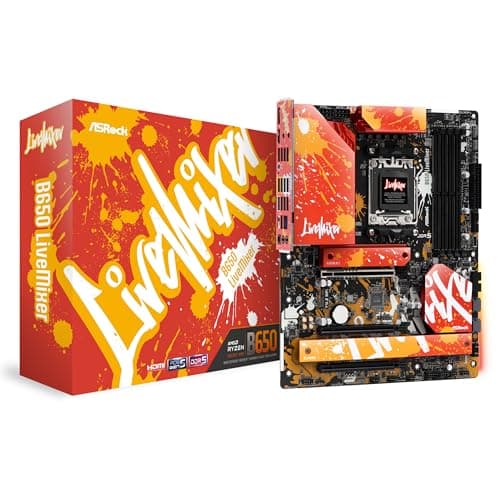

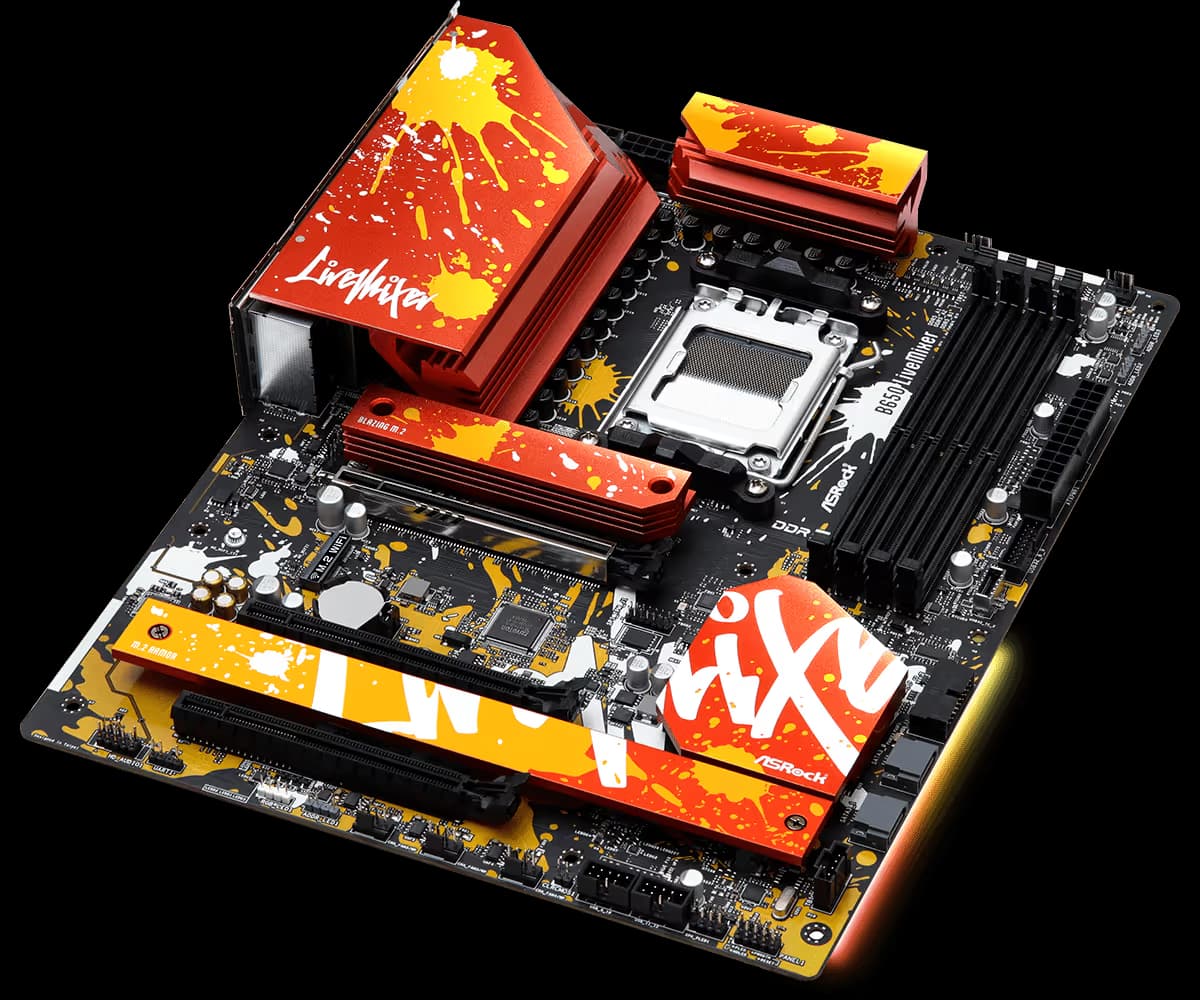

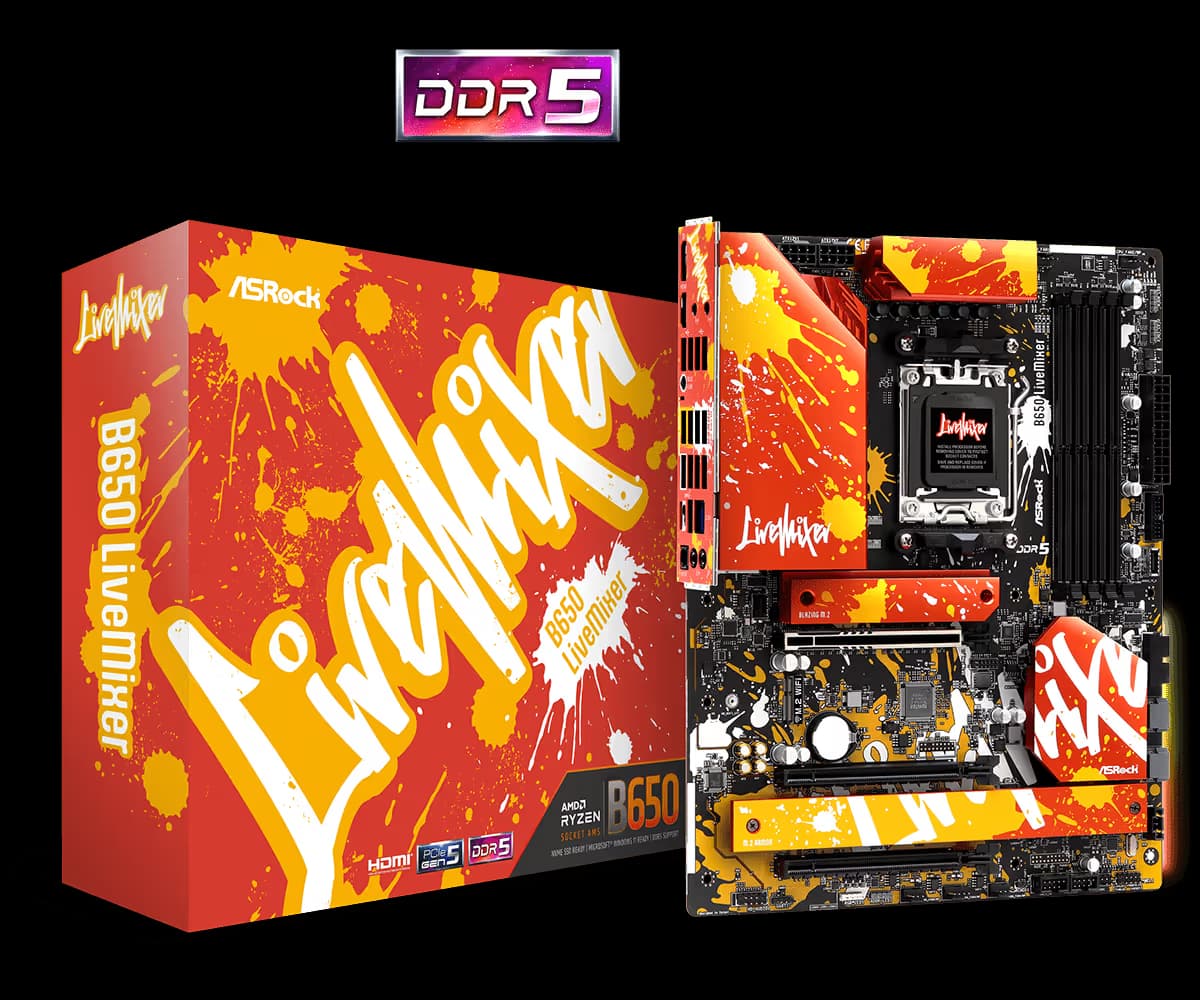

ASRock B650 LiveMixer AM5 DDR5 ATX image

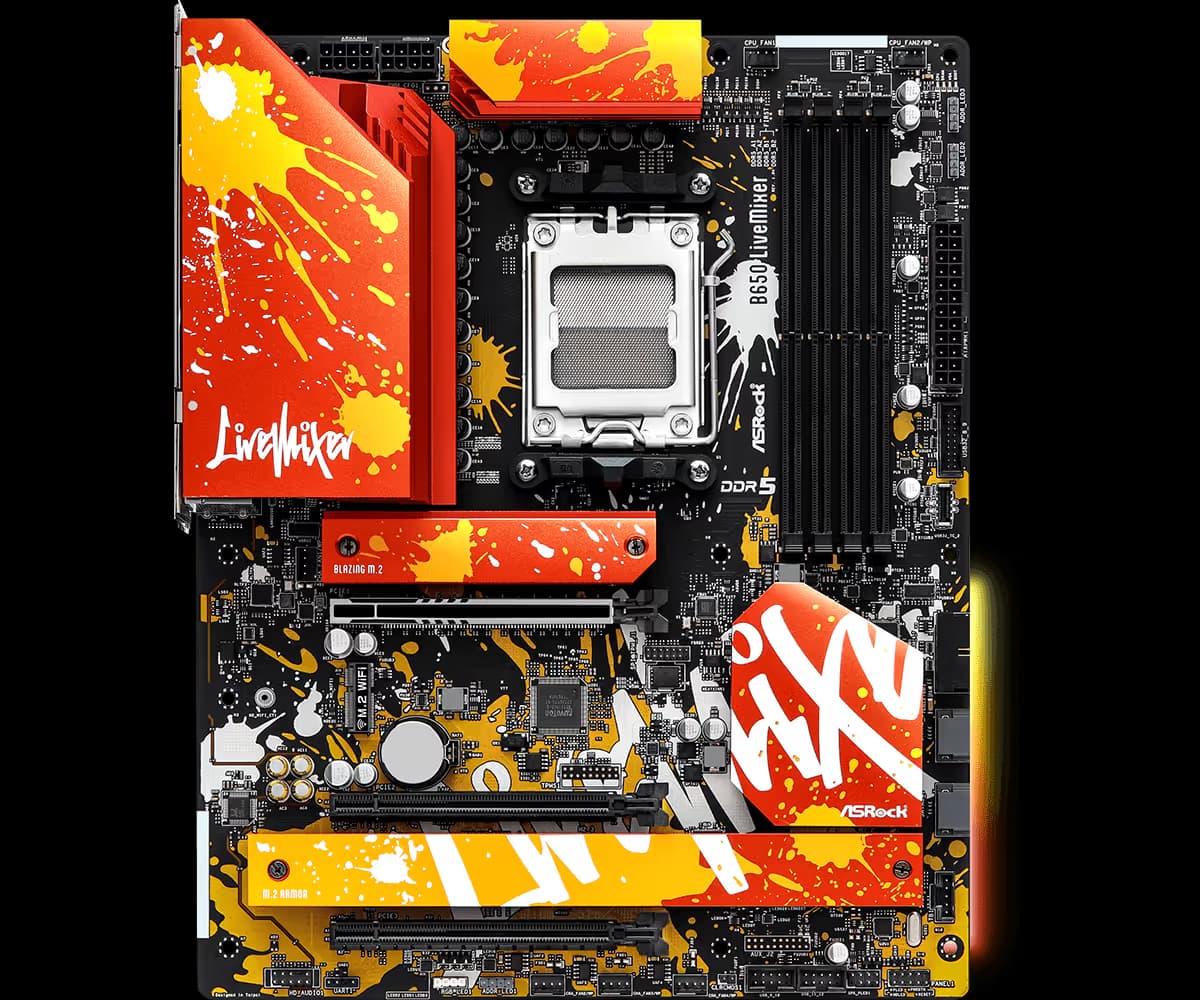

ASRock B650 LiveMixer AM5 DDR5 ATX main image

Product Information

Manufacturer

ASRock

Series

B650

Variant

LiveMixer

Release Year

2022

Manufacturer Color

Unknown

UPC

None

EAN

4710483941016

Part Numbers

B650 LiveMixer 90-MXBJ50-A0UAYZ

BuildCores ID

6fgwaimcf

General Specifications

Socket

AM5

Form Factor

ATX

Chipset

AMD B650

Max Memory

256 GB

Memory Type

DDR5

Memory Slots

Colors

ORANGE BLACK YELLOW

PCIe Slots

1 x PCIe 4.0 x16 2 x PCIe 4.0 x4

M.2 Slots

M 2260/2280 PCIe 4.0 x4 M 2260/2280 PCIe 4.0 x4 M 2260/2280 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek Dragon RTL8125BG 2.5 Gb/s

WiFi

Unknown

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

RGB 12V Headers

Unknown

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Unknown

Thunderbolt Headers

COM Port Headers

Unknown

Main Power

24-pin

CPU Power

8-pin 8-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Clear CMOS Button

Audio Chipset

Realtek ALC897

Audio Channels

7.1

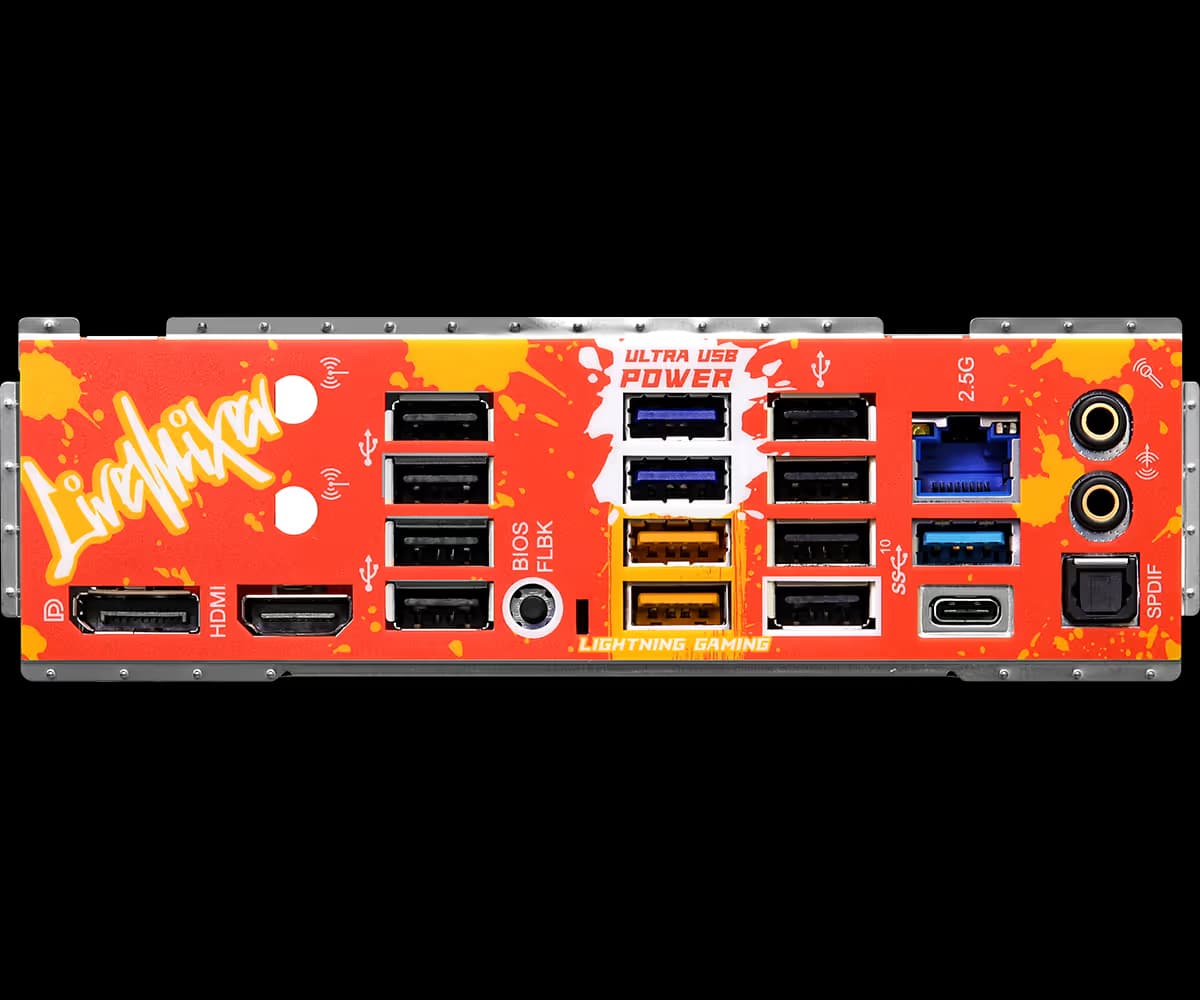

Back Panel Ports

2 x Antenna Mounting Points 1 x HDMI Port 1 x DisplayPort 1.4 1 x Optical SPDIF Out Port 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s 4 x USB 3.2 Gen1 Ports 8 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x BIOS Flashback Button 1 x Line Out Jack 1 x Microphone Input Jack
