Product Information

Manufacturer

Gigabyte

Series

B365

Variant

DS3H

Release Year

2022

Manufacturer Color

Unknown

UPC

889523017203

EAN

0889523017203

Part Numbers

B365M DS3H 889523017203 B365M-DS3H

BuildCores ID

6ml74yvoj

General Specifications

Socket

LGA 1151

Form Factor

Micro ATX

Chipset

Intel B365

Max Memory

64 GB

Memory Type

DDR4

Memory Slots

Colors

None

PCIe Slots

1 x PCIe 3.0 x16 1 x PCIe 3.0 x4 1 x PCIe 3.0 x1

M.2 Slots

M 2242/2260/2280 PCIe x4/x2 SATA

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek GbE LAN 1 Gb/s

WiFi

Unknown

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Unknown

Case Fan Headers

Unknown

Pump Headers

Unknown

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

Unknown

RGB 12V Headers

Unknown

Power Button Header

Unknown

Reset Button Header

Unknown

Power LED Header

Unknown

HDD LED Header

Unknown

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

Unknown

CPU Power

None

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Clear CMOS Button

Yes

Audio Chipset

Realtek ALC887

Audio Channels

7.1

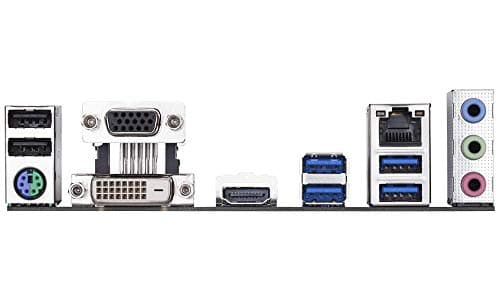

Back Panel Ports

PS/2 keyboard/mouse D-Sub DVI-D HDMI USB 3.1 Gen 1 USB 2.0/1.1 RJ-45 Audio jacks

See an issue?Report an issue on OpenDB

Motherboard

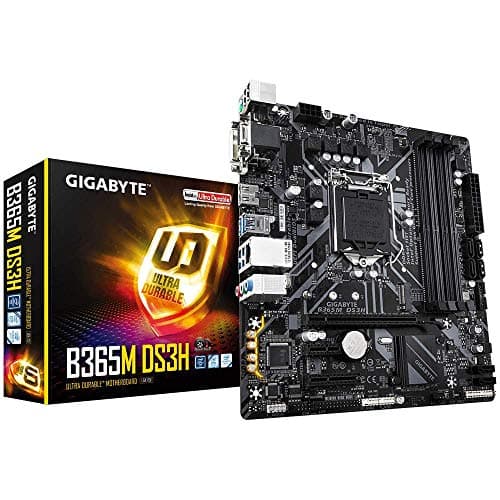

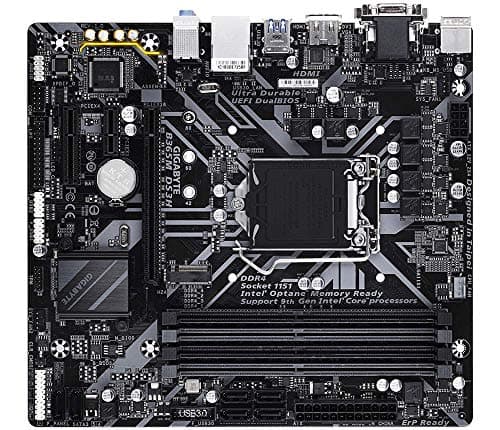

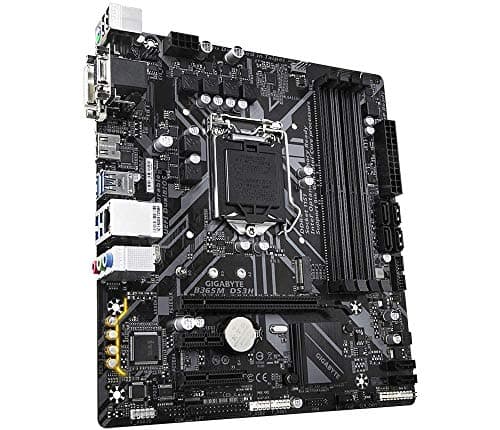

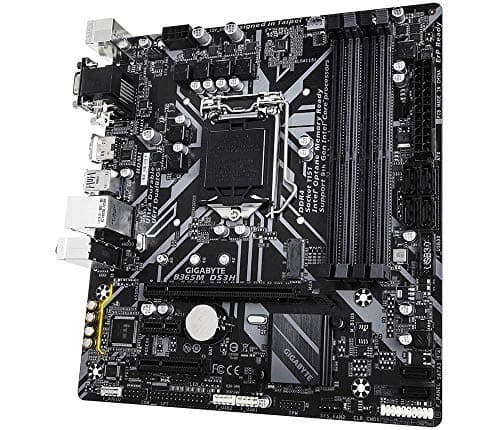

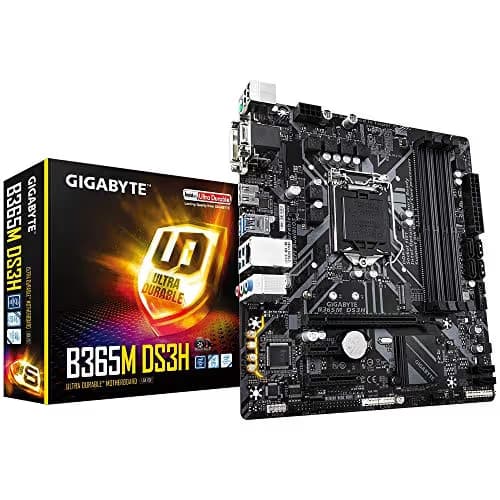

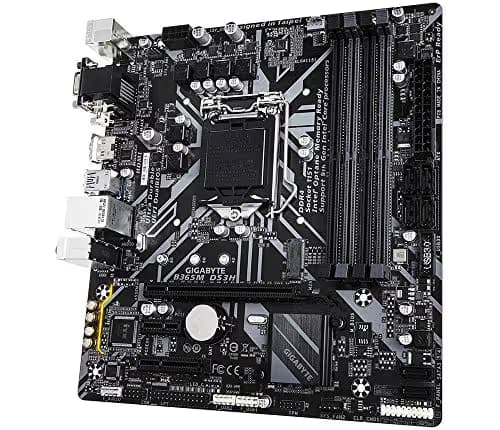

Gigabyte B365M DS3H

	—	N/A
Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	Out of stock	N/A via Amazon Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	Out of stock	N/A via Amazon Loading... Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History

Loading chart...

* Amazon pricing is not included in price history graphs.

Additional Features

• Supports 9th and 8th Gen Intel Core processors

• Dual channel non-ECC unbuffered DDR4

• New hybrid digital PWM design

• High quality audio capacitors and audio noise guard with LED trace path lighting

• Ultra-fast M.2 with PCIe Gen3 x4 and SATA interface

Additional Features

• Supports 9th and 8th Gen Intel Core processors

• Dual channel non-ECC unbuffered DDR4

• New hybrid digital PWM design

• High quality audio capacitors and audio noise guard with LED trace path lighting

• Ultra-fast M.2 with PCIe Gen3 x4 and SATA interface
