Product Information
Manufacturer
ASUS
Series
ROG Strix
Variant
Z490-I Gaming
Release Year
2020
Manufacturer Color
Unknown
UPC
192876683439
EAN
0192876683439
Part Numbers
ROG Strix Z490-I Gaming
BuildCores ID
6wwca8fn6
General Specifications
Socket
LGA 1200
Form Factor
Mini-ITX
Chipset
Intel Z490
Max Memory
64 GB
Memory Type
DDR4
Memory Slots
2
Colors
None
PCIe Slots
1 x PCIe 3.0 x16
M.2 Slots
M 2242-2280 PCIe 3.0 x4 M 2242-2280 SATA & PCIe 3.0 x4
SATA 6Gb/s
4
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Intel I225-V Gigabit LAN 2.5 Gb/s
WiFi
Unknown
USB 2.0
0
USB 3.2 Gen 1
1
USB 3.2 Gen 2
4
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
Unknown
Case Fan Headers
Unknown
Pump Headers
Unknown
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
Unknown
RGB 12V Headers
Unknown
Power Button Header
Unknown
Reset Button Header
Unknown
Power LED Header
Unknown
HDD LED Header
Unknown
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
Unknown
CPU Power
None
ECC Support
No
RAID Support
No
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
Yes
Audio Chipset
SupremeFX S1220A CODEC
Audio Channels
7.1
Back Panel Ports
DisplayPort 1.4 HDMI™ 2.0a BIOS FlashBack™ button USB 3.2 Gen 2 Type-A Type-C Intel® I225-V Gigabit LAN LED-Illuminated Audio Jacks
Motherboard

ASUS ROG Strix Z490-I Gaming

Loading...
Loading
Loading...
Loading
Amazon

N/A

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
Out of stock

N/A

via Amazon

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
Out of stock

N/A

via Amazon

Loading...
Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History
Loading chart...
* Amazon pricing is not included in price history graphs.

Additional Features

Intel LGA 1200 socket: Designed to unleash the maximum performance of 10th Gen Intel Core processors

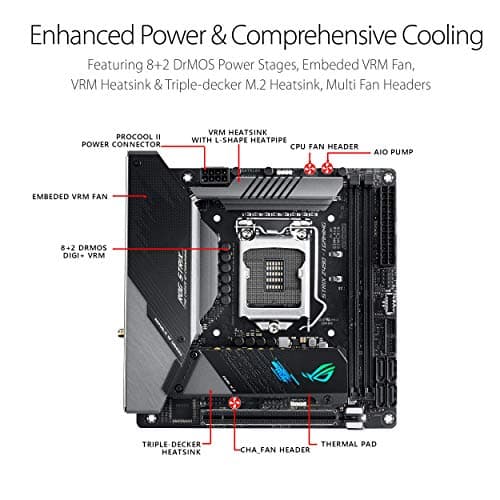

Robust Power Solution: 8+2 Dr. MOS power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to provide reliable power when pushing CPU performance

Optimized Thermal Design: Embed custom Delta Superflo VRM fan, Mos heatsink, L-shaped heat pipe and fan headers, features low-noise AI cooling to balance thermals and acoustics by reducing fan speeds and maintaining a 5 Celsius delta

High-performance Gaming Networking: On-board Intel WiFi 6 AX201 (802. 11 ax), Intel 2. 5 Gb Ethernet with ASUS LANGuard

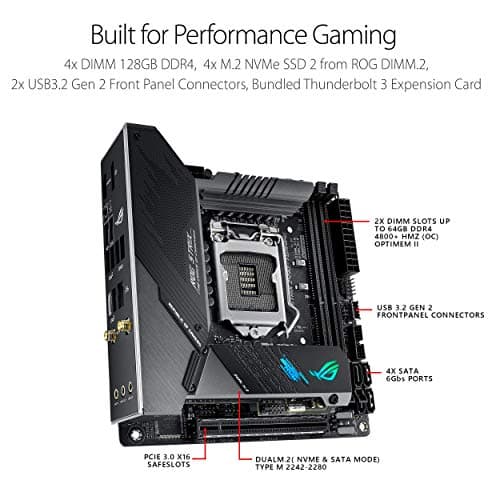

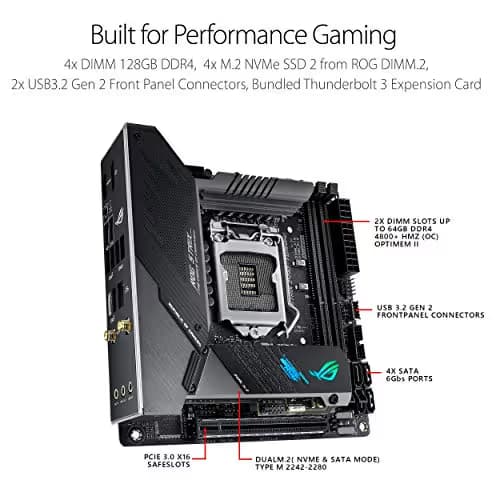

Best Gaming Connectivity: Supports HDMI 2. 0a and DisplayPort 1. 4 output, and featuring dual M. 2 , front panel USB 3. 2 Gen 2 Type-C connector

Additional Features

Intel LGA 1200 socket: Designed to unleash the maximum performance of 10th Gen Intel Core processors

Robust Power Solution: 8+2 Dr. MOS power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to provide reliable power when pushing CPU performance

Optimized Thermal Design: Embed custom Delta Superflo VRM fan, Mos heatsink, L-shaped heat pipe and fan headers, features low-noise AI cooling to balance thermals and acoustics by reducing fan speeds and maintaining a 5 Celsius delta

High-performance Gaming Networking: On-board Intel WiFi 6 AX201 (802. 11 ax), Intel 2. 5 Gb Ethernet with ASUS LANGuard

Best Gaming Connectivity: Supports HDMI 2. 0a and DisplayPort 1. 4 output, and featuring dual M. 2 , front panel USB 3. 2 Gen 2 Type-C connector

Product Information
Manufacturer
ASUS
Series
ROG Strix
Variant
Z490-I Gaming
Release Year
2020
Manufacturer Color
Unknown
UPC
192876683439
EAN
0192876683439
Part Numbers
ROG Strix Z490-I Gaming
BuildCores ID
6wwca8fn6
General Specifications
Socket
LGA 1200
Form Factor
Mini-ITX
Chipset
Intel Z490
Max Memory
64 GB
Memory Type
DDR4
Memory Slots
2
Colors
None
PCIe Slots
1 x PCIe 3.0 x16
M.2 Slots
M 2242-2280 PCIe 3.0 x4 M 2242-2280 SATA & PCIe 3.0 x4
SATA 6Gb/s
4
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Intel I225-V Gigabit LAN 2.5 Gb/s
WiFi
Unknown
USB 2.0
0
USB 3.2 Gen 1
1
USB 3.2 Gen 2
4
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
Unknown
Case Fan Headers
Unknown
Pump Headers
Unknown
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
Unknown
RGB 12V Headers
Unknown
Power Button Header
Unknown
Reset Button Header
Unknown
Power LED Header
Unknown
HDD LED Header
Unknown
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
Unknown
CPU Power
None
ECC Support
No
RAID Support
No
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
Yes
Audio Chipset
SupremeFX S1220A CODEC
Audio Channels
7.1
Back Panel Ports
DisplayPort 1.4 HDMI™ 2.0a BIOS FlashBack™ button USB 3.2 Gen 2 Type-A Type-C Intel® I225-V Gigabit LAN LED-Illuminated Audio Jacks
