Product Information

Manufacturer

MSI

Series

MEG X299

Variant

CREATION

Release Year

2018

Manufacturer Color

Unknown

UPC

824142169872

EAN

0824142169872

Part Numbers

MEG X299 CREATION

BuildCores ID

78p9cmvp8

General Specifications

Socket

LGA 2066

Form Factor

EATX

Chipset

Intel X299

Max Memory

256 GB

Memory Type

DDR4

Memory Slots

Colors

None

PCIe Slots

4 x PCIe 3.0 x16 1 x PCIe 3.0 x1

M.2 Slots

M 2242/ 2260/ 2280/ 22110 PCIe 3.0 x4 SATA 6Gb/s M 2242/ 2260/ 2280/ 22110 PCIe 3.0 x4 SATA 6Gb/s M 2242/ 2260/ 2280 PCIe 3.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Intel I219-V 1 Gb/s Realtek RTL8125-CG 2.5 Gb/s

WiFi

Unknown

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Unknown

Case Fan Headers

Unknown

Pump Headers

Unknown

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

Unknown

RGB 12V Headers

Unknown

Power Button Header

Unknown

Reset Button Header

Unknown

Power LED Header

Unknown

HDD LED Header

Unknown

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

Unknown

CPU Power

None

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Clear CMOS Button

Yes

Audio Chipset

Realtek ALC1220

Audio Channels

7.1

Back Panel Ports

Clear CMOS Button PS/2 Port USB 3.1 Gen1 Ports 2.5G LAN Port Intel® LAN Ports Intel® WiFi/ Bluetooth Module HD Audio Connectors Flash BIOS Button USB 2.0 Ports USB 3.1 Gen1 Ports Intel Turbo USB 3.1 Gen 2 Type A + C Optical S/PDIF-Out

See an issue?Report an issue on OpenDB

Motherboard

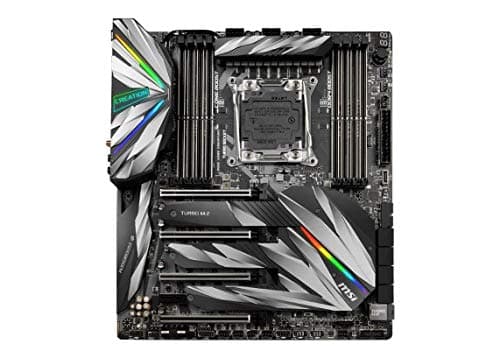

MSI MEG X299 CREATION

	—	N/A
Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	Out of stock	N/A via Amazon Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	Out of stock	N/A via Amazon Loading... Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History

Loading chart...

* Amazon pricing is not included in price history graphs.

Additional Features

• Supports Intel Core X-Series Processor Family for LGA 2066 socket

• Support 8 DIMMs, Quad Channel DDR4

• Mystic Light: 16.8 million colors/ 17 effects controlled in one click. Mystic Light extension support both RGB and rainbow LED strip

• Lightning fast transfer experience: 3x Turbo M.2 with shield frozr, AMD Turbo USB 3.1

• Multi-gpu: With Steel Armor PCI-E slots. Supports 4-way NVIDIA SLI & 4-way AMD Crossfire

Additional Features

• Supports Intel Core X-Series Processor Family for LGA 2066 socket

• Support 8 DIMMs, Quad Channel DDR4

• Mystic Light: 16.8 million colors/ 17 effects controlled in one click. Mystic Light extension support both RGB and rainbow LED strip

• Lightning fast transfer experience: 3x Turbo M.2 with shield frozr, AMD Turbo USB 3.1

• Multi-gpu: With Steel Armor PCI-E slots. Supports 4-way NVIDIA SLI & 4-way AMD Crossfire
