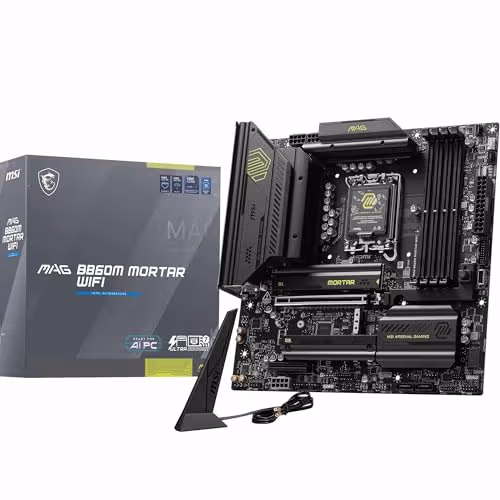

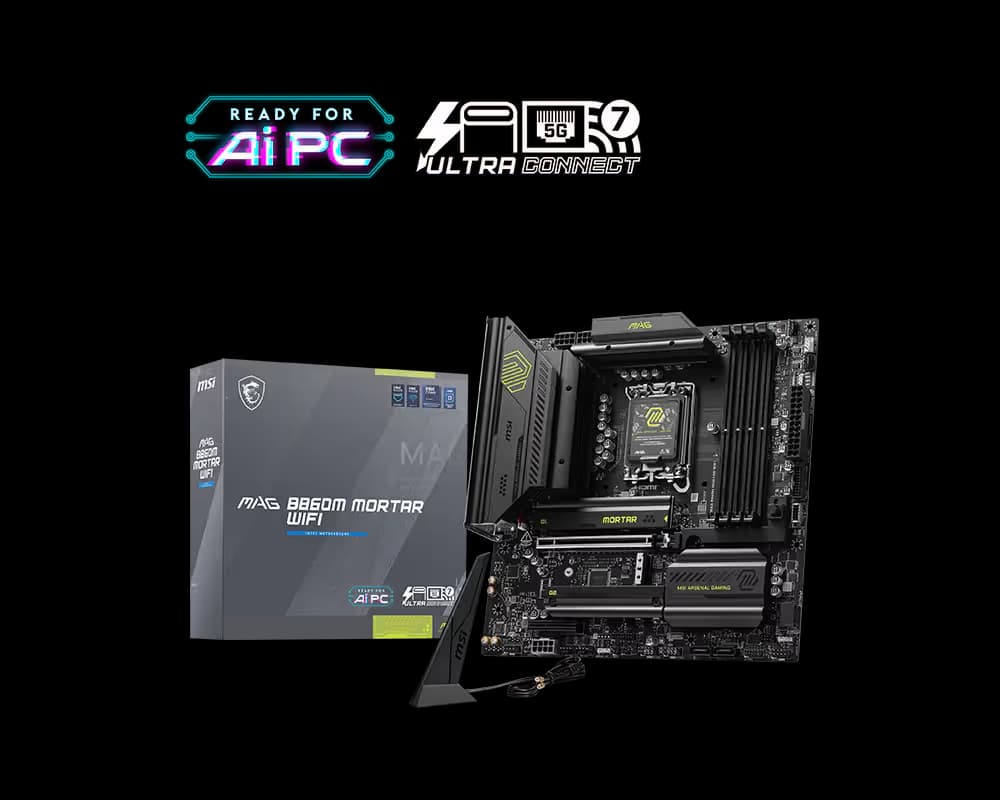

MSI B860 MAG B860M MORTAR WIFI DDR5 Micro ATX image

MSI B860 MAG B860M MORTAR WIFI DDR5 Micro ATX main image

Product Information

Manufacturer

MSI

Series

B860

Variant

B860M MORTAR WIFI

Release Year

2025

Manufacturer Color

Unknown

UPC

824142393895

EAN

0824142393895

Part Numbers

MAG B860M MORTAR WIFI MAG B860M MAG B860M Mortar WiFi

BuildCores ID

7gvuali4t

General Specifications

Socket

LGA 1851

Form Factor

Micro ATX

Chipset

Intel B860

Max Memory

256 GB

Memory Type

DDR5

Memory Slots

Colors

BLACK GREEN

PCIe Slots

1 x PCIe 5.0 x16 1 x PCIe 4.0 x4

M.2 Slots

M 2280/2260/2242 PCIe 5.0 x4 M 2280/2260 PCIe 4.0 x4 M 2260-2280 PCIe 4.0 x4 M 2280/2260 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Intel Killer E5000 5 Gb/s

WiFi

Wi-Fi 7 Bluetooth 5.4

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Unknown

Thunderbolt Headers

COM Port Headers

Unknown

Main Power

24-pin

CPU Power

8-pin 8-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Yes

Audio Chipset

Realtek ALC897

Audio Channels

7.1

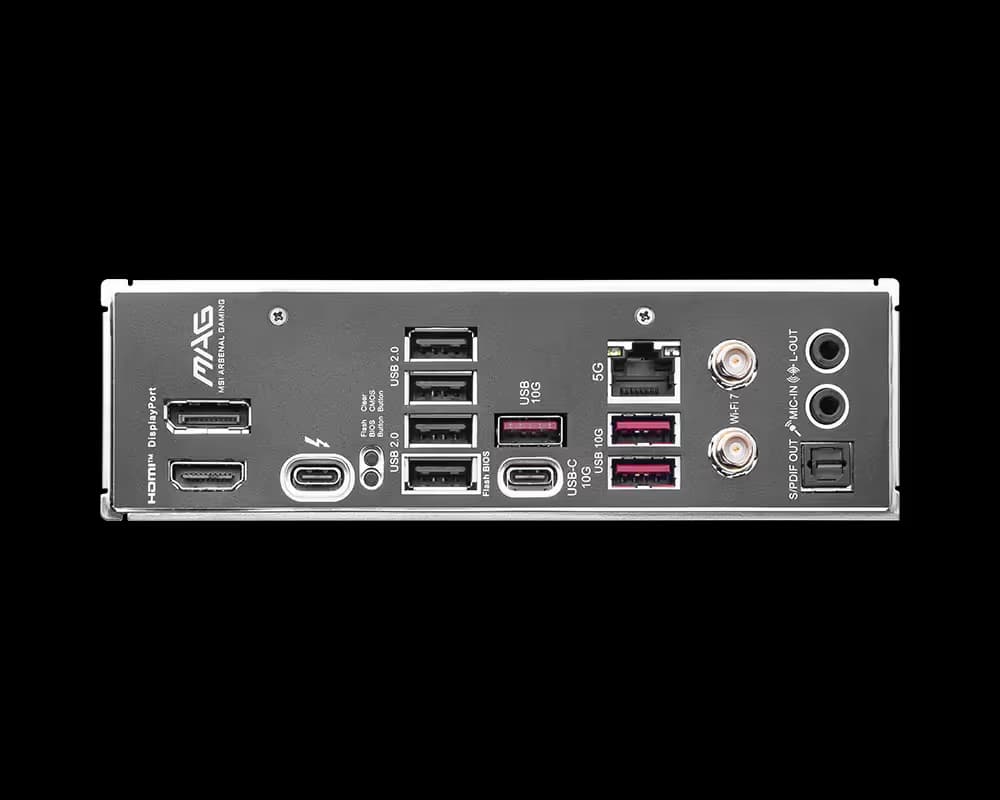

Back Panel Ports

1 x Clear CMOS button 1 x Flash BIOS button 1 x DisplayPort 1 x HDMI port 1 x Thunderbolt 4 USB-C port 3 x USB 10Gbps Type-A ports 1 x USB 10Gbps Type-C port 3 x USB 2.0 Type-A ports 1 x USB 2.0 Type-A port 1 x 5Gbps LAN (RJ45) port 2 x Wi-Fi Antenna connectors 2 x Audio jacks (Line-out Mic-in) 1 x Optical S/PDIF out connector
