General Specifications
Socket
LGA 1700
Form Factor
ATX
Chipset
Intel Z690
Weight
Unknown
Max Memory
256 GB
Memory Type
DDR5
Memory Slots
4
Colors
BLACK
GREY
PURPLE
BLUE
Lighting
RGB
ARGB
PCIe Slots
1 x PCIe 5.0 x16
2 x PCIe 3.0 x4
M.2 Slots
M 2260/2280/22110 PCIe 4.0 x4/x2
M 2260/2280/22110 PCIe 4.0 x4/x2
M 2260/2280/22110 PCIe 4.0 x4/x2
M 2260/2280/22110 SATA and PCIe 4.0 x4/x2
SATA 6Gb/s
6
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Intel 2.5 Gb/s
WiFi
Wifi 6
USB 2.0
2
USB 3.2 Gen 1
1
USB 3.2 Gen 2
0
USB 3.2 Gen 2x2
1
USB 4.0
0
USB 4 80Gbps
0
CPU Fan Headers
1
Case Fan Headers
4
Pump Headers
2
CPU Optional Fan Headers
1
ARGB 5V Headers
2
RGB 12V Headers
2
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
2
Thunderbolt Headers
2
COM Port Headers
1
Main Power
24-pin
CPU Power
8-pin
4-pin
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
No
Audio Chipset
Realtek ALC4080
Audio Channels
7.1

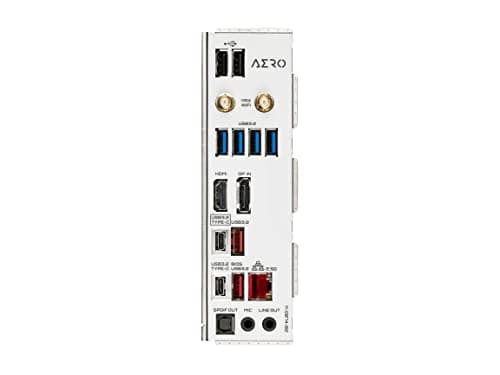

Back Panel Ports
2 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)
4 x USB 3.2 Gen 1 ports
1 x DisplayPort In port
1 x HDMI port
2 x USB 3.2 Gen 2 Type-A ports (red)
1 x USB Type-C port (USB 3.2 Gen 2x2)
1 x USB Type-C port (USB 3.2 Gen 1)
1 x RJ-45 port (2.5GbE)
1 x Optical S/PDIF Out connector
2 x Audio jacks
Display Outputs
Unknown
Product Information
Manufacturer
Gigabyte
Series
AERO
Variant
Z690 G
Release Year
2021
Manufacturer Color
White / Silver
UPC
889523030486
EAN
0889523030486
Part Numbers
Z690 AERO G
Z690
BuildCores ID
7nexc7e6y
Motherboard
3D

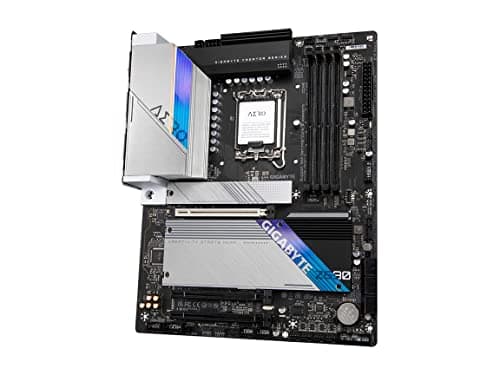

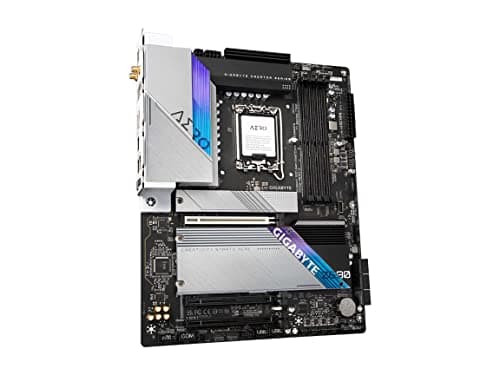

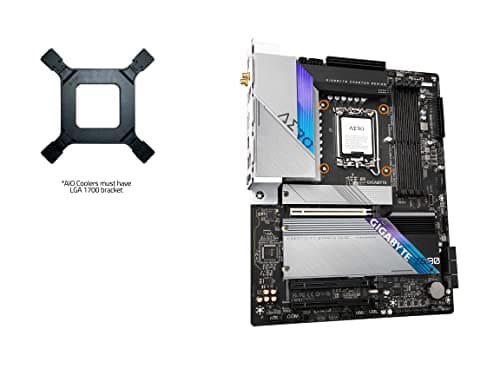

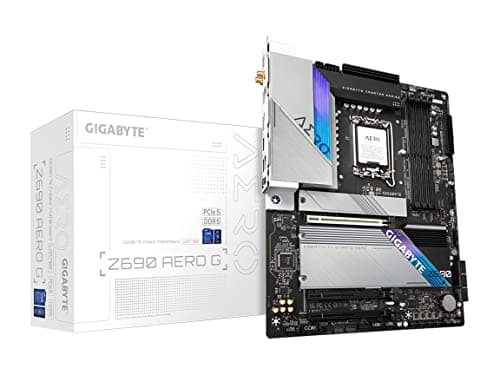

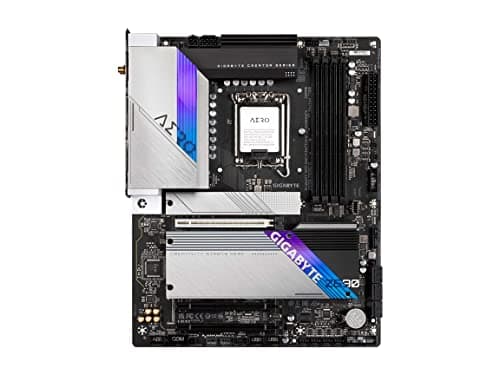

Gigabyte Z690 AERO G LGA1700 DDR5 ATX
SocketLGA 1700
Form FactorATX
ChipsetIntel Z690
  | — | N/A |
MERCHANT | SHIPPING | PROMO | AVAILABILITY | TOTAL |
| — | — | Unavailable | N/A via Amazon |
MERCHANT | SHIPPING | PROMO | AVAILABILITY | TOTAL |
| — | — | Unavailable | N/A via Amazon |
* BuildCores may receive compensation for affiliate sales through these linksReport a pricing issue
Price History
Loading price history...
* Amazon pricing is not included in price history graphs.
