Product Information

Manufacturer

Gigabyte

Series

B760M D3H

Release Year

2023

Manufacturer Color

Unknown

UPC

889523040454

EAN

0889523040454

Part Numbers

B760M D3H

BuildCores ID

7x9ng93ud

General Specifications

Socket

LGA 1700

Form Factor

Micro ATX

Chipset

Intel B760

Max Memory

192 GB

Memory Type

DDR5

Memory Slots

Colors

None

PCIe Slots

1 x PCIe 4.0 x16 1 x PCIe 3.0 x4 1 x PCIe 3.0 x1

M.2 Slots

M 22110/2280 PCIe 4.0 x4/x2 M 2280 PCIe 4.0 x4/x2

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

2.5 Gb/s 1 Gb/s

WiFi

Unknown

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Unknown

Case Fan Headers

Unknown

Pump Headers

Unknown

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

Unknown

RGB 12V Headers

Unknown

Power Button Header

Unknown

Reset Button Header

Unknown

Power LED Header

Unknown

HDD LED Header

Unknown

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

Unknown

CPU Power

None

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Yes

Audio Channels

7.1

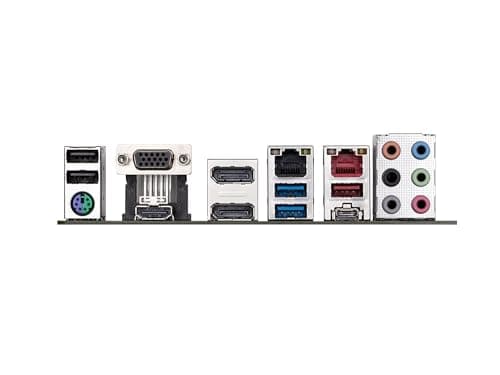

Back Panel Ports

PS/2 keyboard/mouse port USB Type-C port with USB 3.2 Gen 2 support USB 3.2 Gen 2 Type-A port (red) USB 3.2 Gen 1 ports USB 2.0/1.1 ports D-Sub port HDMI port DisplayPorts RJ-45 ports audio jacks Q-Flash Plus button Clear CMOS button

See an issue?Report an issue on OpenDB
