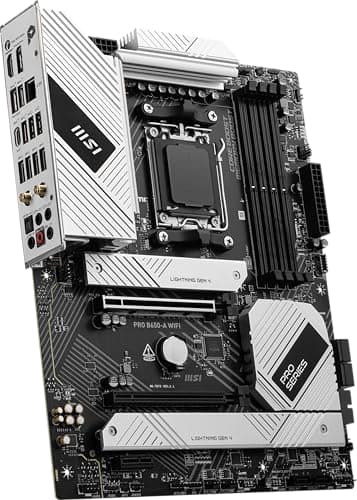

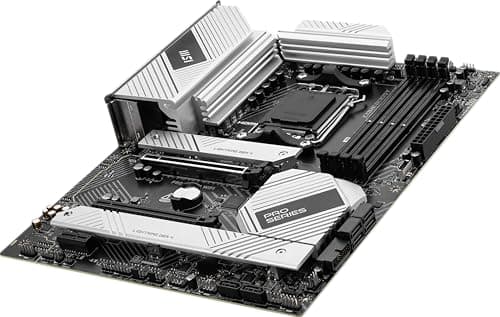

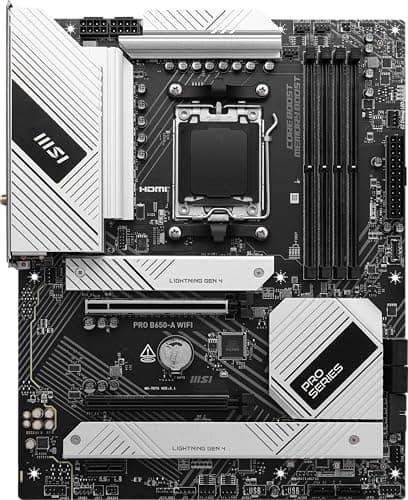

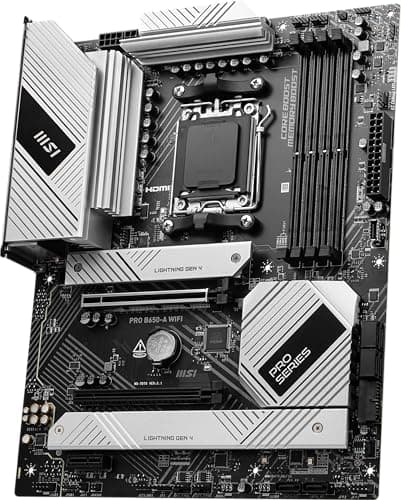

MSI PRO B650-A WIFI AM5 DDR5 ATX main image

Product Information

Manufacturer

MSI

Series

PRO

Variant

B650-A WIFI

Release Year

2022

Manufacturer Color

Unknown

UPC

824142376324

EAN

0824142376324

Part Numbers

PRO B650-A WIFI B650AWIFI PRO B650-A WiFi

BuildCores ID

7z0zs1ui9

General Specifications

Socket

AM5

Form Factor

ATX

Chipset

AMD B650

Max Memory

256 GB

Memory Type

DDR5

Memory Slots

Colors

BLACK GREY

PCIe Slots

1 x PCIe 4.0 x16 1 x PCIe 4.0 x2 1 x PCIe 3.0 x1

M.2 Slots

M 2280-22110 PCIe 4.0 x4 M 2260-2280 PCIe 4.0 x4 M 2260-2280 PCIe 4.0 x4 E 2230 Wi-Fi Module

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek RTL8125B 2.5 Gb/s

WiFi

Wifi 6E Bluetooth 5.3

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Thunderbolt Headers

COM Port Headers

Main Power

24-pin

CPU Power

8-pin 8-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Audio Chipset

Realtek ALC4080

Audio Channels

7.1

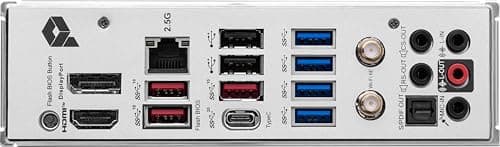

Back Panel Ports

1 x Flash BIOS Button 1 x DisplayPort 1 x HDMI 1 x USB 20Gbps Type-C 3 x USB 10Gbps Type-A 4 x USB 5Gbps Type-A 2 x USB 2.0 1 x 2.5G LAN (Realtek RTL8125B) 2 x Wi-Fi / Bluetooth Antenna Connectors Audio Connectors 1 x Optical S/PDIF Out

See an issue?Report an issue on OpenDB

Motherboard

MSI PRO B650-A WIFI AM5 DDR5 ATX

Name: MSI PRO B650-A WIFI AM5 DDR5 ATX
Brand: MSI
SKU: 7z0zs1ui9

Best Price

$199.99

via

	—	$199.99
Loading... Loading
	FREE s/h	$209.99
Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	In stock	$199.99 via Amazon Loading... Loading
	FREE s/h	—	Out of stock	$209.99 via B&H Photo Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	In stock	$199.99 via Amazon Loading... Loading
	FREE s/h	—	Out of stock	$209.99 via B&H Photo Loading... Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History

Loading chart...

* Amazon pricing is not included in price history graphs.
