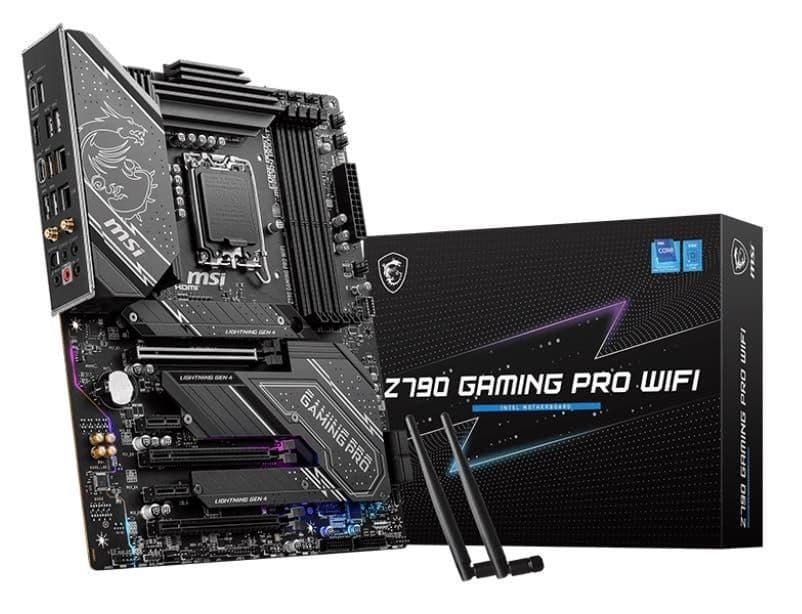

MSI Z790 GAMING PRO WIFI LGA1700 DDR5 ATX image
MSI Z790 GAMING PRO WIFI LGA1700 DDR5 ATX main image
General Specifications
Socket
LGA 1700
Form Factor
ATX
Chipset
Intel Z790
Weight
Unknown
Max Memory
256 GB
Memory Type
DDR5
Memory Slots
4
Colors
BLACK
Lighting
ARGB RGB
PCIe Slots
1 x PCIe 4.0 x16 2 x PCIe 4.0 x4 2 x PCIe 3.0 x1
M.2 Slots
M 22110/2280/2260/2242 PCIe 4.0 x4 M 2280/2260/2242 PCIe 4.0 x4 M 2280/2260/2242 PCIe 4.0 x4 / SATA
SATA 6Gb/s
4
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Realtek RTL8125BG 2.5 Gb/s RTL8111H 1 Gb/s
WiFi
Wifi 6E
USB 2.0
2
USB 3.2 Gen 1
1
USB 3.2 Gen 2
1
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
5
Pump Headers
1
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
2
RGB 12V Headers
1
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
24-pin
CPU Power
8-pin 8-pin
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
No
Audio Chipset
Realtek ALC897
Audio Channels
7.1
Back Panel Ports
∙ 1x Flash BIOS button ∙ 1x HDMI™ port ∙ 4x USB 3.2 Gen 1 5Gbps Type-A ports (From Z790 chipset) 3x USB 3.2 Gen 2 10Gbps Type-A ports (From Z790 chipset) ∙ 2x LAN ports ∙ 1x USB 3.2 Gen 2x2 20Gbps Type-C port (From ASM3241) ∙ 2x Wi-Fi Antenna connectors ∙ 5x OFC audio jacks ∙ 1x Optical S/PDIF Out connector
Display Outputs
Connector: hdmi Count: 1 Version Label: HDMI 1.4 Video Signal: hdmi Transport: native Graphics Route: integrated Mode Claims: Resolution: 3840 × 2160 px Refresh Rate: 30 Claim: maximum_at_resolution Hdr: supported Conditions: Maximum 3840 × 2160 @ 30 Hz; HDR supported; requires processor integrated graphics
Product Information
Manufacturer
MSI
Series
GAMING
Variant
Z790 PRO WIFI
Release Year
2023
Manufacturer Color
Black
UPC
None
EAN
None
Part Numbers
Z790 GAMING PRO WIFI 7D93-001R
BuildCores ID
827gma0hu
Motherboard

MSI Z790 GAMING PRO WIFI LGA1700 DDR5 ATX
