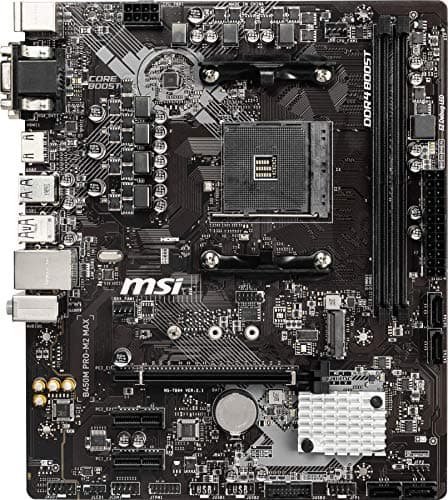

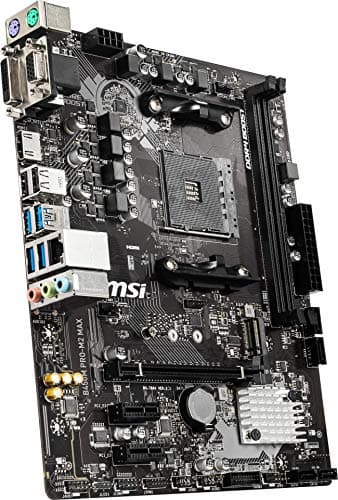

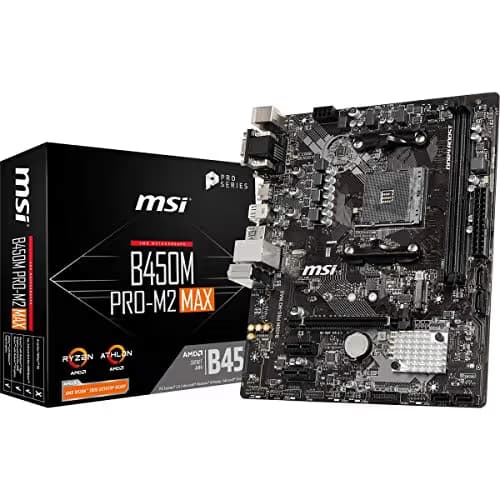

MSI B450M PRO-M2 MAX image
MSI B450M PRO-M2 MAX image
MSI B450M PRO-M2 MAX image
MSI B450M PRO-M2 MAX image
MSI B450M PRO-M2 MAX image
MSI B450M PRO-M2 MAX image

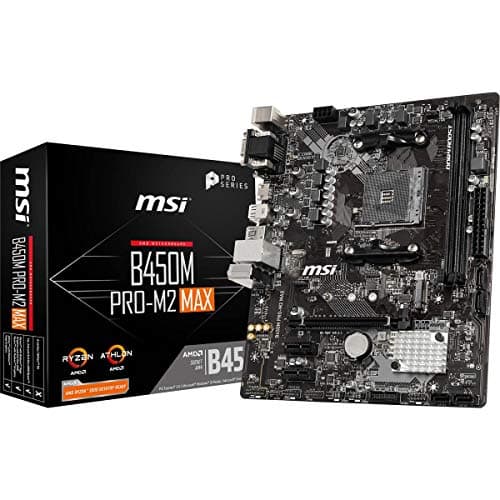

MSI B450M PRO-M2 MAX main image
MSI B450M PRO-M2 MAX image
MSI B450M PRO-M2 MAX image
MSI B450M PRO-M2 MAX image
MSI B450M PRO-M2 MAX image
MSI B450M PRO-M2 MAX image
MSI B450M PRO-M2 MAX image
Product Information
Manufacturer
MSI
Series
B450
Variant
PRO-M2 MAX
Release Year
2019
Manufacturer Color
Unknown
UPC
824142189689
EAN
0824142189689
Part Numbers
B450MPM2MAX B450M PRO-M2 MAX 7B84-017R
BuildCores ID
8mzehhfnk
General Specifications
Socket
AM4
Form Factor
Micro ATX
Chipset
AMD B450
Max Memory
128 GB
Memory Type
DDR4
Memory Slots
4
Colors
None
PCIe Slots
1 x PCIe 3.0 x16 1 x PCIe 2.0 x16 3 x PCIe 2.0 x1
M.2 Slots
M 2242 PCIe 3.0 x4 M 2280 PCIe 3.0 x4
SATA 6Gb/s
4
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Realtek 8111H 1 Gb/s
WiFi
Unknown
USB 2.0
2
USB 3.2 Gen 1
1
USB 3.2 Gen 2
0
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
Unknown
Case Fan Headers
Unknown
Pump Headers
Unknown
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
Unknown
RGB 12V Headers
Unknown
Power Button Header
Unknown
Reset Button Header
Unknown
Power LED Header
Unknown
HDD LED Header
Unknown
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
Unknown
CPU Power
None
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
Yes
Audio Chipset
Realtek ALC892/ALC897
Audio Channels
7.1

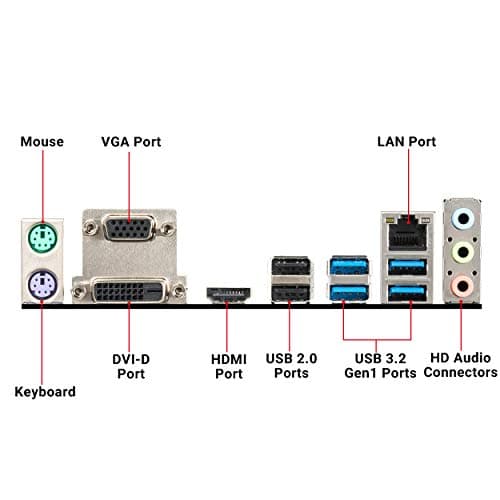

Back Panel Ports
1 x DVI-D 1 x HDMI 1 x LAN (RJ45) 1 x PS/2 Keyboard/Mouse Combo 1 x USB 3.2 Gen 2 Type-A 1 x USB 3.2 Gen 2 Type-C 2 x USB 2.0/1.1 2 x USB 3.2 Gen 1 Type-A 6 x Audio Jacks
Motherboard

MSI B450M PRO-M2 MAX

Best Price

$79.99

via
Loading...
Loading
Loading...
Loading
Loading...
Loading
B&H Photo
FREE s/h

$79.99

Loading...
Loading
Amazon

N/A

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

B&H Photo
FREE s/h
Out of stock

$79.99

via B&H Photo

Loading...
Loading
Amazon
Out of stock

N/A

via Amazon

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

B&H Photo
FREE s/h
Out of stock

$79.99

via B&H Photo

Loading...
Loading
Amazon
Out of stock

N/A

via Amazon

Loading...
Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History
Loading chart...
* Amazon pricing is not included in price history graphs.

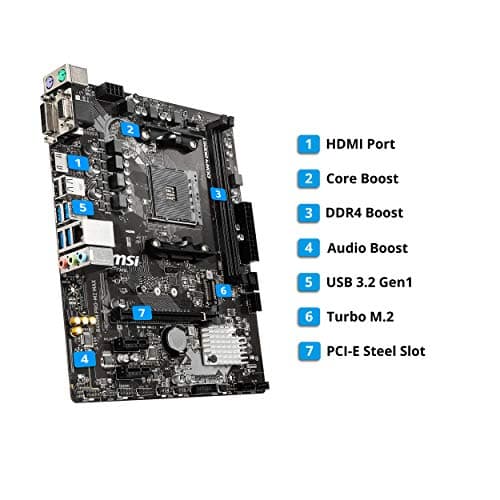

Additional Features

Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon graphics/ Athlon with Radeon Vega Graphics desktop processors for Socket AM4

Supports ddr4 memory, up to 3466+(oc) MHz

Ddr4 boost: Advanced technology to deliver pure data signals for the best performance and stability

Audio boost: Reward your ears with studio grade sound quality

Pci-e steel slot: Protecting VGA cards against bending

Memory storage capacity: 32

Additional Features

Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon graphics/ Athlon with Radeon Vega Graphics desktop processors for Socket AM4

Supports ddr4 memory, up to 3466+(oc) MHz

Ddr4 boost: Advanced technology to deliver pure data signals for the best performance and stability

Audio boost: Reward your ears with studio grade sound quality

Pci-e steel slot: Protecting VGA cards against bending

Memory storage capacity: 32
