General Specifications
Socket
LGA 1851

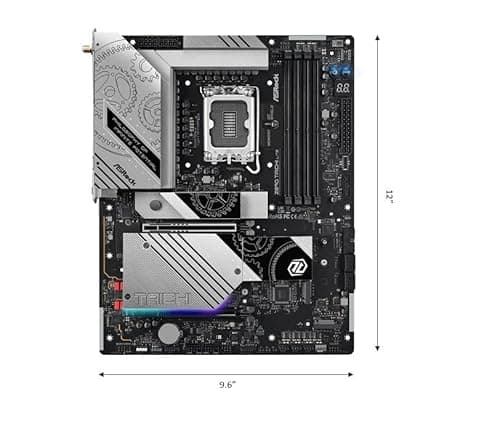

Form Factor
ATX
Chipset
Intel Z890
Weight
Unknown
Max Memory
256 GB
Memory Type
DDR5
Memory Slots
4
Colors
GREY
BLACK
Lighting
ARGB
RGB
PCIe Slots
1 x PCIe 5.0 x16
1 x PCIe 4.0 x4
M.2 Slots
M 2280 PCIe 5.0 x4
M 2260/2280 PCIe 4.0 x4
M 2230/2242/2260/2280 SATA3 / PCIe Gen4x4
M 2260/2280 PCIe 4.0 x4
M 2260/2280 PCIe 4.0 x4
M 2260/2280 PCIe 4.0 x4
E 2230 PCIe
SATA 6Gb/s
4
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Realtek RTL8126 5 Gb/s
Dragon RTL8125BG 2.5 Gb/s
WiFi
Wifi 7
USB 2.0
2
USB 3.2 Gen 1
2
USB 3.2 Gen 2
0
USB 3.2 Gen 2x2
1
USB 4.0
0
USB 4 80Gbps
0
CPU Fan Headers
2
Case Fan Headers
4
Pump Headers
2
CPU Optional Fan Headers
0
ARGB 5V Headers
3
RGB 12V Headers
1
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
3
Thunderbolt Headers
0
COM Port Headers
0
Main Power
24-pin
CPU Power
8-pin
8-pin
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
Yes
Audio Chipset
Realtek ALC4082
Audio Channels
5.1
Back Panel Ports
2 x Antenna Ports
1 x HDMI Port
1 x Optical SPDIF Out Port
2 x Thunderbolt 4 Type-C Port
4 x USB 3.2 Gen2 Type-A Ports
4 x USB 3.2 Gen1 Ports
2 x USB 2.0 Ports
2 x RJ-45 LAN Ports
1 x Clear CMOS Button
1 x BIOS Flashback Button
1 x Line Out Jack
1 x Microphone Input Jack
Display Outputs
Unknown
Product Information
Manufacturer
ASRock
Series
Taichi
Variant
Z890 Lite
Release Year
2024
Manufacturer Color
Black / Silver
UPC
4710483949692
EAN
4710483949692
Part Numbers
Z890 Taichi Lite
BuildCores ID
8ofvffpvt
Motherboard
3D
Modular

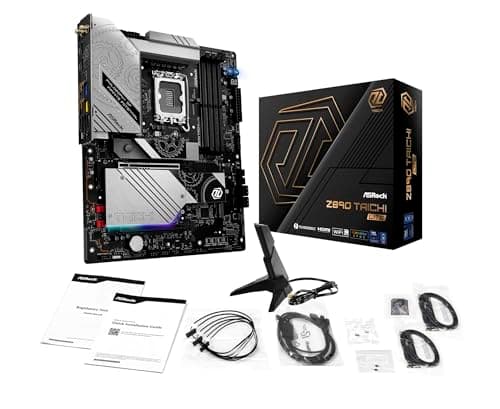

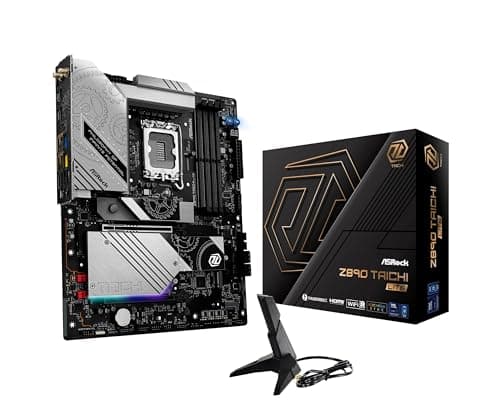

ASRock Z890 Taichi Lite LGA1851 DDR5 ATX
SocketLGA 1851
Form FactorATX
ChipsetIntel Z890
  | — | N/A |
MERCHANT | SHIPPING | PROMO | AVAILABILITY | TOTAL |
| — | — | Unavailable | N/A via Amazon |
MERCHANT | SHIPPING | PROMO | AVAILABILITY | TOTAL |
| — | — | Unavailable | N/A via Amazon |
* BuildCores may receive compensation for affiliate sales through these linksReport a pricing issue
Price History
Loading price history...
* Amazon pricing is not included in price history graphs.
