General Specifications
Socket
LGA 1700
Form Factor
Micro ATX
Chipset
Intel B760
Weight
Unknown
Max Memory
128 GB
Memory Type
DDR5
Memory Slots
4
Colors
WHITE
BLACK
Lighting
None
PCIe Slots
1 x PCIe 5.0 x16
1 x PCIe 3.0 x4
M.2 Slots
M 2242/2260/2280 PCIe 4.0 x4
M 2280 PCIe 4.0 x4
M 2280 PCIe 4.0 x4
SATA 6Gb/s
4
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Realtek Dragon RTL8125BG 2.5 Gb/s
WiFi
Wifi 6E+Bluetooth 5.3
USB 2.0
2
USB 3.2 Gen 1
1
USB 3.2 Gen 2
1
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
4
Pump Headers
1
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
3
RGB 12V Headers
1
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
Unknown
Thunderbolt Headers
1
COM Port Headers
Unknown
Main Power
24-pin
CPU Power
8-pin
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
No
Clear CMOS Button
No
Audio Chipset
Realtek ALC897
Audio Channels
7.1
Back Panel Ports
2 x Antenna Ports
2 x Antenna Mounting Points
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen1 Type-C Port
3 x USB 3.2 Gen1 Type-A Ports
2 x USB 2.0 Ports
1 x RJ-45 LAN Port
HD Audio Jacks: Line in / Front Speaker / Microphone
Display Outputs
Unknown
Product Information
Manufacturer
ASRock
Series
Pro
Variant
B760M-A WiFi
Release Year
2023
Manufacturer Color
Black
UPC
None
EAN
None
Part Numbers
B760M Pro-A WiFi
BuildCores ID
8p2wartbv
Motherboard

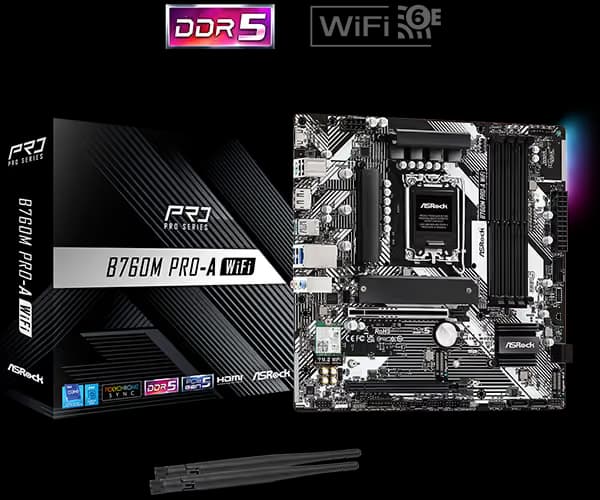

ASRock B760M Pro-A WiFi DDR5 Micro ATX
