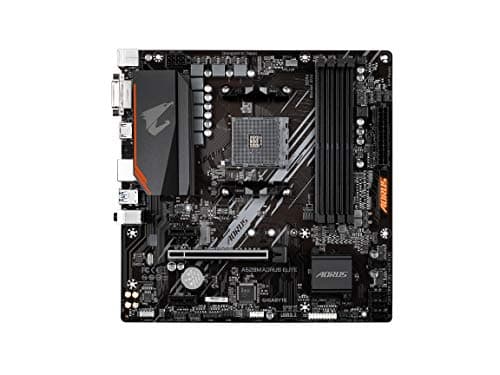

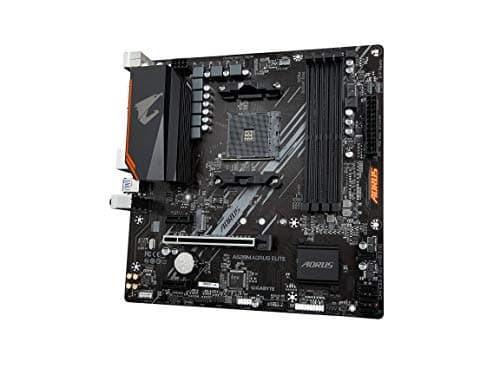

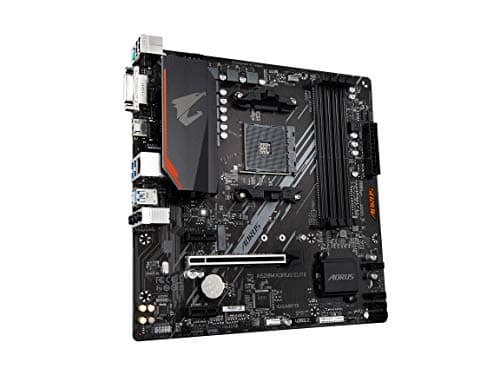

Gigabyte A520M AORUS ELITE DDR4 Micro ATX image
Gigabyte A520M AORUS ELITE DDR4 Micro ATX image
Gigabyte A520M AORUS ELITE DDR4 Micro ATX image
Gigabyte A520M AORUS ELITE DDR4 Micro ATX image
Gigabyte A520M AORUS ELITE DDR4 Micro ATX image

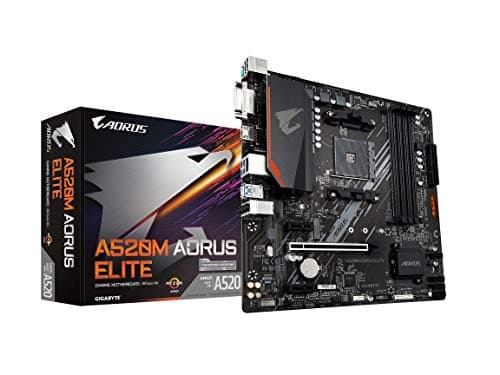

Gigabyte A520M AORUS ELITE DDR4 Micro ATX main image
General Specifications
Socket
AM4
Form Factor
Micro ATX
Chipset
AMD A520
Weight
Unknown
Max Memory
128 GB
Memory Type
DDR4
Memory Slots
4
Colors
BLACK ORANGE
Lighting
RGB
PCIe Slots
1 x PCIe 3.0 x16 2 x PCIe 3.0 x1
M.2 Slots
M 2242/2260/2280 SATA and PCIe 3.0 x4/x2
SATA 6Gb/s
4
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Realtek 1 Gb/s
WiFi
Unknown
USB 2.0
1
USB 3.2 Gen 1
1
USB 3.2 Gen 2
0
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
2
Pump Headers
Unknown
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
2
RGB 12V Headers
2
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
1
Main Power
24-pin
CPU Power
8-pin
ECC Support
Yes
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
No
Audio Chipset
Realtek
Audio Channels
7.1

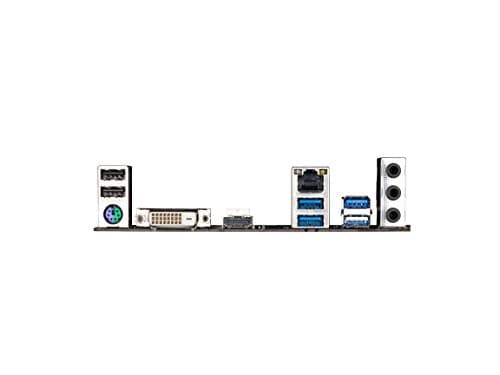

Back Panel Ports
1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
Display Outputs
Connector: dvi_d Count: 1 Version Label: DVI-D Video Signal: dvi Transport: native Graphics Route: integrated Mode Claims: Resolution: 1920 × 1200 px Refresh Rate: 60 Claim: maximum_at_resolution Conditions: Maximum 1920×1200 at 60 Hz; requires processor integrated Radeon Graphics Connector: hdmi Count: 1 Version Label: HDMI 2.1 Video Signal: hdmi Transport: native Graphics Route: integrated Mode Claims: Resolution: 4096 × 2160 px Refresh Rate: 60 Claim: maximum_at_resolution Hdr: supported Conditions: Maximum 4096×2160 at 60 Hz; HDR supported; requires processor integrated Radeon Graphics
Product Information
Manufacturer
Gigabyte
Series
AORUS ELITE
Variant
A520M
Release Year
2020
Manufacturer Color
Black
UPC
889523023631
EAN
0889523023631
Part Numbers
A520M AORUS ELITE GA-A520M-AORUS-ELITE
BuildCores ID
8r4ei52sz
