Product Information

Manufacturer

ASRock

Series

TRX40 Taichi

Release Year

2020

Manufacturer Color

Unknown

UPC

None

EAN

4717677339918

Part Numbers

TRX40 TAICHI

BuildCores ID

8tsifxw9w

General Specifications

Socket

sTRX4

Form Factor

ATX

Chipset

AMD TRX40

Max Memory

256 GB

Memory Type

DDR4

Memory Slots

Colors

None

PCIe Slots

3 x PCIe 4.0 x16 1 x PCIe 4.0 x1

M.2 Slots

M 2260/2280 PCIe4.0x4 M 2260/2280/22110 SATA3/PCIe4.0x4

SATA 6Gb/s

U.2 Ports

Onboard Ethernet

RTL8125AG 2.5 Gb/s IntelI211AT 1 Gb/s

WiFi

Unknown

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4 80Gbps

Unknown

CPU Fan Headers

Unknown

Case Fan Headers

Unknown

Pump Headers

Unknown

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

Unknown

RGB 12V Headers

Unknown

Power Button Header

Unknown

Reset Button Header

Unknown

Power LED Header

Unknown

HDD LED Header

Unknown

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

Unknown

CPU Power

None

BIOS Flashback

Yes

Clear CMOS Button

Yes

Audio Chipset

RealtekALC1220

Audio Channels

7.1

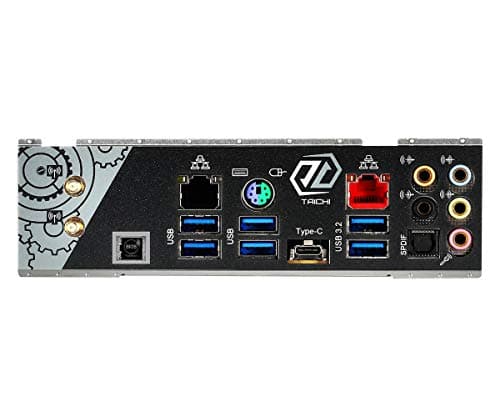

Back Panel Ports

2xAntennaports 1xOpticalSPDIFoutport 2xLAN(RJ45)port 1xUSB3.2(Gen2x2)Type-Cport 4xUSB3.2(Gen1)ports 2xUSB3.2(Gen2)Type-Aports 5x3.5mmaudiojacks

See an issue?Report an issue on OpenDB

Motherboard

ASRock TRX40 Taichi

	—	N/A
Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	Out of stock	N/A via Amazon Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	Out of stock	N/A via Amazon Loading... Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History

Loading chart...

* Amazon pricing is not included in price history graphs.

Additional Features

• CPU Socket Type sTRX4 / Chipset AMD TRX40 (Model = TRX40 TAICHI)

• Number of Memory Slots 8×288pin

• Memory Standard Supports DDR4 4666(OC)+/ 4600(OC)/ 4533(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory (U-DIMM)

• Maximum Memory Supported 256GB

• Channel Supported Quad Channel

Additional Features

• CPU Socket Type sTRX4 / Chipset AMD TRX40 (Model = TRX40 TAICHI)

• Number of Memory Slots 8×288pin

• Maximum Memory Supported 256GB

• Channel Supported Quad Channel
