LoadingProduct Information
Manufacturer
Gigabyte
Series
X870
Variant
AORUS STEALTH
Release Year
Unknown
Manufacturer Color
Unknown
UPC
None
EAN
None
Part Numbers
X870 AORUS STEALTH
BuildCores ID
90d4yr9eh
General Specifications
Socket
AM5
Form Factor
ATX
Chipset
AMD X870
Max Memory
256 GB
Memory Type
DDR5
Memory Slots
4
Colors
WHITE
PCIe Slots
1 x PCIe 5.0 x16
1 x PCIe 4.0 x4
M.2 Slots
M 25110/22110/2580/2280 PCIe 5.0 x4
M 22110/2280 PCIe 5.0 x4
M 22110/2280 PCIe 4.0 x4
M 22110/2280 PCIe 4.0 x4
SATA 6Gb/s
2
SATA 3Gb/s
Unknown
U.2 Ports
Unknown
Onboard Ethernet
None
WiFi
Wi-Fi 7 Bluetooth 5.4
USB 2.0
2
USB 3.2 Gen 1
1
USB 3.2 Gen 2
Unknown
USB 3.2 Gen 2x2
1
USB 4.0
Unknown
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
6
Pump Headers
1
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
3
RGB 12V Headers
1
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
2
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
24-pin
CPU Power
8-pin
8-pin
ECC Support
Unknown
RAID Support
Yes
Back-Connect Connectors
Unknown
BIOS Flashback
Yes
Clear CMOS Button
Yes
Audio Chipset
Unknown
Audio Channels
7.1

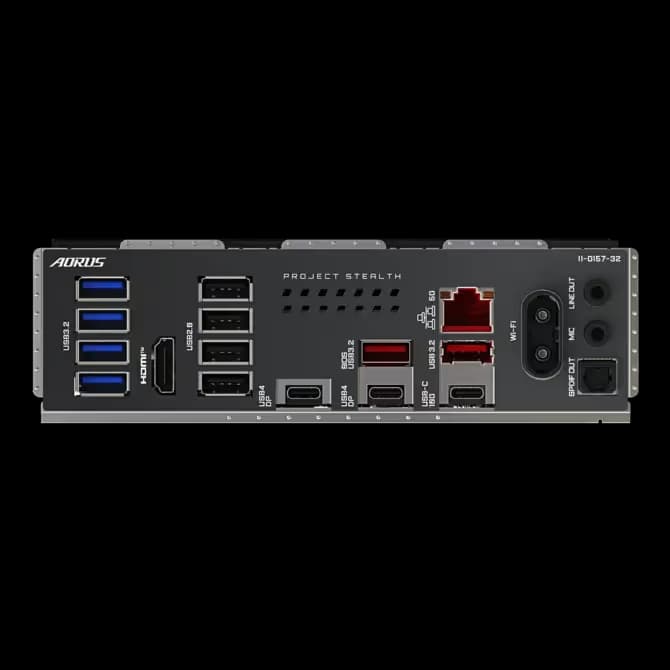

Back Panel Ports
1 x HDMI port
2 x antenna connectors
2 x USB4 USB Type-C ports
1 x USB Type-C header
with USB 3.2 Gen 2
2 x USB 3.2 Gen 2 Type-A ports
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
Motherboard
3D
Gigabyte X870 AORUS STEALTH
