General Specifications

Socket

LGA 1200

Form Factor

ATX

Chipset

Intel Z590

Max Memory

128 GB

Memory Type

DDR4

Memory Slots

Colors

None

Lighting

Unknown

PCIe Slots

1 x PCIe 4.0 x16 2 x PCIe 3.0 x16 2 x PCIe 3.0 x1

M.2 Slots

M 2242/2260/2280/22110 PCIe 4.0 x4 M 2242/2260/2280 PCIe 3.0 x4 and SATA 6Gb/s M 2242/2260/2280 PCIe 3.0 x4 and SATA 6Gb/s

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Intel I225-V 2.5 Gb/s

WiFi

Unknown

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Unknown

Case Fan Headers

Unknown

Pump Headers

Unknown

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

Unknown

RGB 12V Headers

Unknown

Power Button Header

Unknown

Reset Button Header

Unknown

Power LED Header

Unknown

HDD LED Header

Unknown

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

Unknown

CPU Power

None

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Yes

Audio Chipset

Realtek ALC4080

Audio Channels

7.1

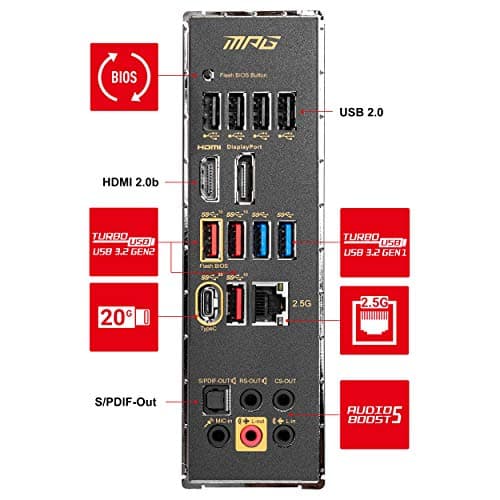

Back Panel Ports

DisplayPort HDMI LAN (RJ45) Optical S/PDIF Out USB 3.2 Gen 2x2 Type-C USB 2.0/1.1 USB 3.2 Gen 1 Type-A USB 3.2 Gen 2 Type-A Audio Jacks Flash BIOS Button

Product Information

Manufacturer

MSI

Series

MPG

Variant

GAMING PLUS

Release Year

2021

Manufacturer Color

Unknown

UPC

824142240991

EAN

0824142240991

Part Numbers

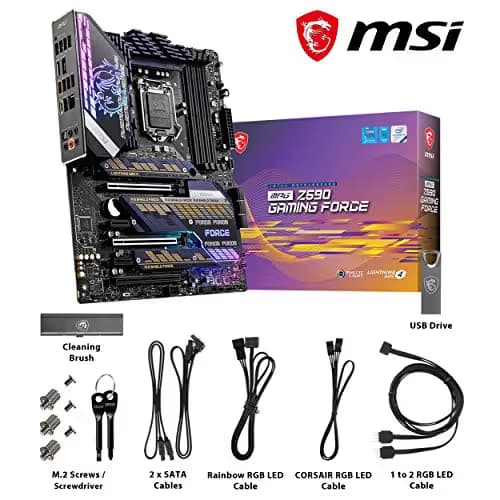

MPG Z590 GAMING FORCE MPG Z590 GAMING PLUS

BuildCores ID

9esvxjefw

See an issue?Report an issue on OpenDB

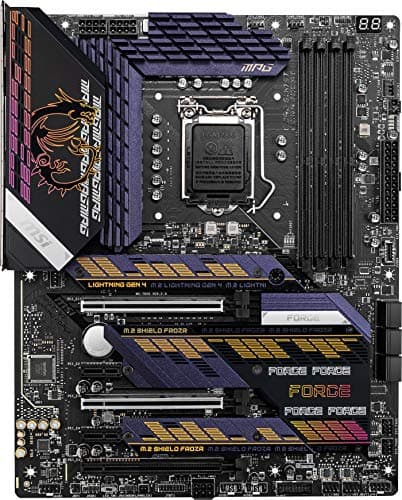

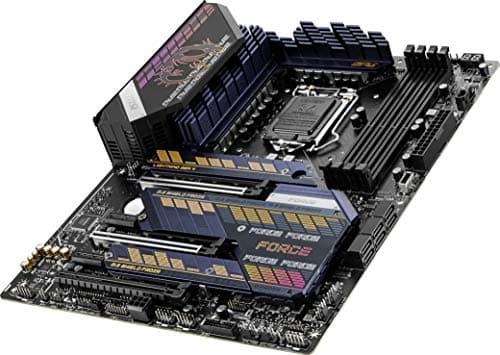

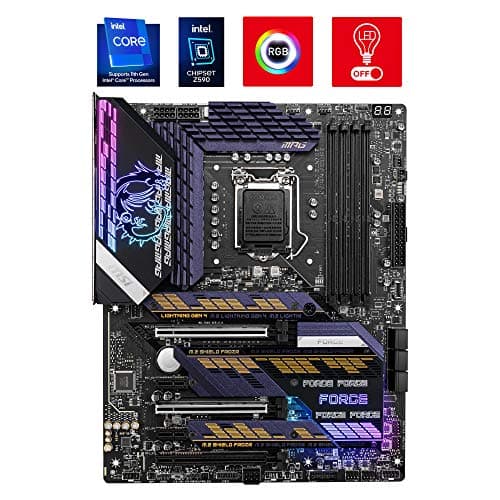

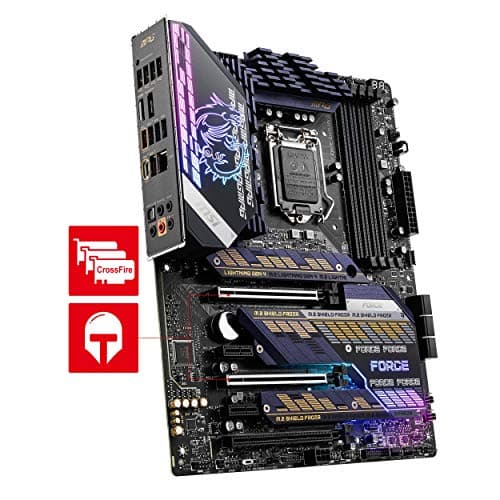

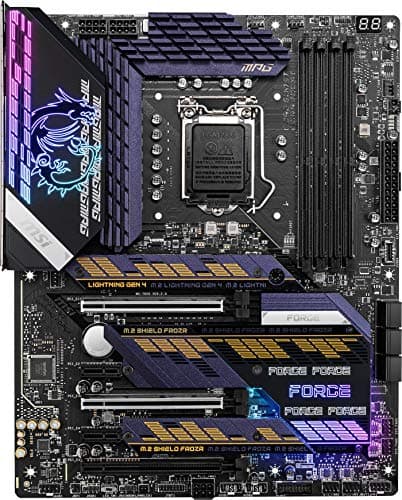

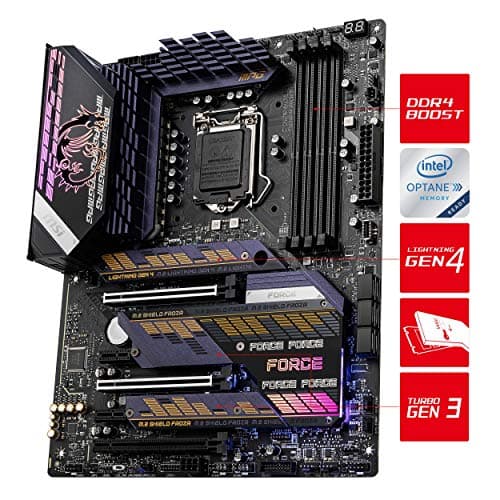

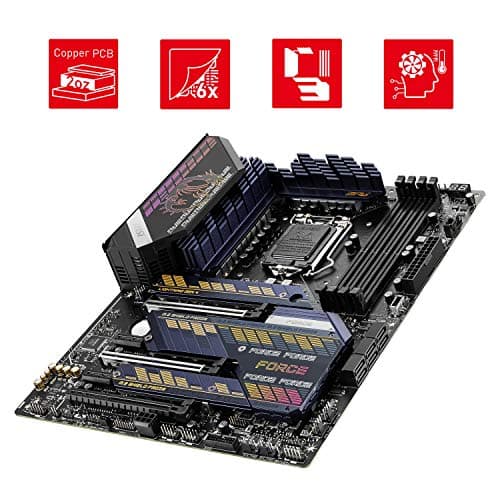

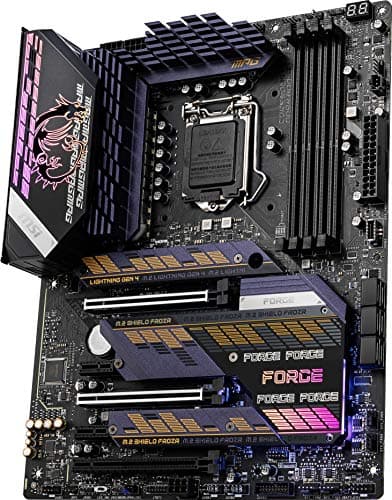

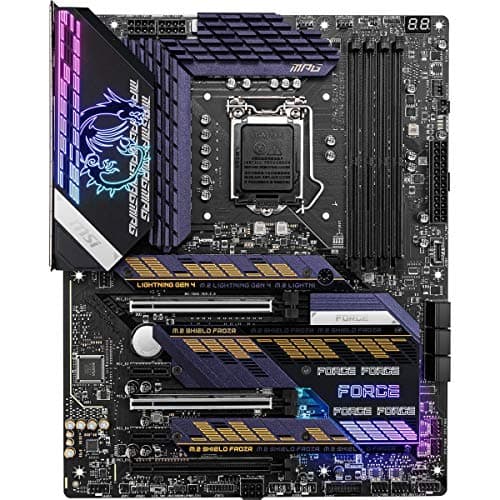

Motherboard

MPG Z590 GAMING PLUS

SocketLGA 1200

Form FactorATX

ChipsetIntel Z590

No retailers available yet

Price History

Loading price history...

* Amazon pricing is not included in price history graphs.

Additional Features

• Supports 11th and 10th Gen Intel Core/Pentium/Celeron processors for LGA 1200 Socket

• Supports DDR4 Memory, up to 5333(OC) MHz

• Enhanced Power Design: 16+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, DDR4 Boost

• MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip

• 2.5G LAN with LAN Manager: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

Additional Features

• Supports 11th and 10th Gen Intel Core/Pentium/Celeron processors for LGA 1200 Socket

• Supports DDR4 Memory, up to 5333(OC) MHz

• Enhanced Power Design: 16+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, DDR4 Boost

• MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip

• 2.5G LAN with LAN Manager: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
