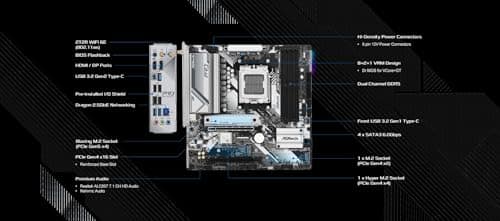

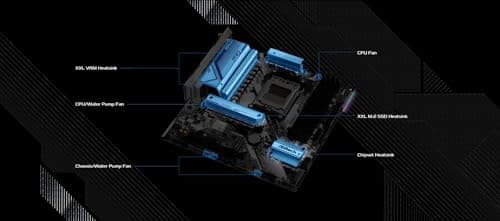

ASRock B650M Pro RS WiFi AM5 DDR5 Micro ATX image

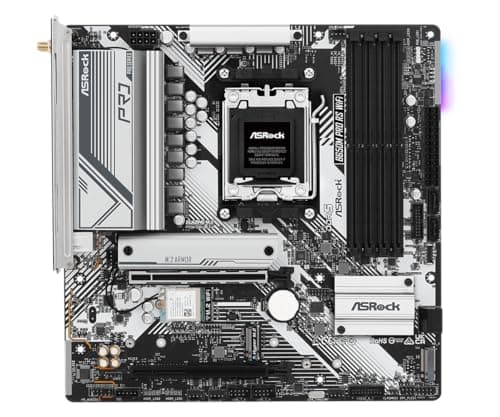

ASRock B650M Pro RS WiFi AM5 DDR5 Micro ATX main image

General Specifications

Socket

AM5

Form Factor

Micro ATX

Chipset

AMD B650

Max Memory

256 GB

Memory Type

DDR5

Memory Slots

Colors

BLACK WHITE

Lighting

RGB ARGB

PCIe Slots

1 x PCIe 4.0 x16 1 x PCIe 3.0 x4

M.2 Slots

M 2260/2280 PCIe 5.0 x4 M 2260/2280 PCIe 4.0 x4 E 2260/2280 PCIe 4.0 x2 E 2230 PCIe

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek Dragon RTL8125BG 2.5 Gb/s

WiFi

Wifi 6E

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Thunderbolt Headers

COM Port Headers

Main Power

24-pin

CPU Power

8-pin

ECC Support

Yes

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Audio Chipset

Realtek ALC897

Audio Channels

7.1

Back Panel Ports

2 x Antenna Ports 1 x HDMI Port 1 x DisplayPort 1.4 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) 2 x USB 3.2 Gen1 Ports 4 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x BIOS Flashback Button HD Audio Jacks: Line in / Front Speaker / Microphone

Product Information

Manufacturer

ASRock

Series

B650M PRO RS WIFI

Variant

B650M PRO RS WIFI

Release Year

2023

Manufacturer Color

Silver / Black

UPC

4710483943089

EAN

4710483943089

Part Numbers

B650M Pro RS WiFi 90-MXBLZ0-A0UAYZ B650M PRO RS WIFI

BuildCores ID

9nvw5xate
