Product Information
Manufacturer
ASUS
Series
ROG STRIX
Release Year
2020
Manufacturer Color
Unknown
UPC
192876715154
EAN
0192876715154
Part Numbers
ROG STRIX B460-H GAMING
BuildCores ID
a3tfk7qjo
General Specifications
Socket
LGA 1200
Form Factor
ATX
Chipset
Intel B460
Max Memory
128 GB
Memory Type
DDR4
Memory Slots
4
Colors
None
PCIe Slots
1 x PCIe 3.0 x16 1 x PCIe 3.0 x4 3 x PCIe 3.0 x1
M.2 Slots
M 2242-2280 PCIe 3.0 x4 & SATA M 2242-22110 PCIe 3.0 x4 E PCIe
SATA 6Gb/s
6
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Intel I219-V 1 Gb/s
WiFi
Unknown
USB 2.0
2
USB 3.2 Gen 1
1
USB 3.2 Gen 2
1
USB 3.2 Gen 2x2
1
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
Unknown
Case Fan Headers
Unknown
Pump Headers
Unknown
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
Unknown
RGB 12V Headers
Unknown
Power Button Header
Unknown
Reset Button Header
Unknown
Power LED Header
Unknown
HDD LED Header
Unknown
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
Unknown
CPU Power
None
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
No
Clear CMOS Button
No
Audio Chipset
ROG SupremeFX S1220A
Audio Channels
7.1
Back Panel Ports

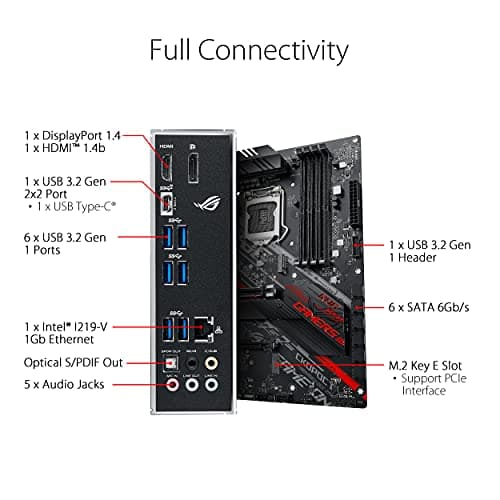

1 x DisplayPort 1 x HDMI 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 6 x USB 3.2 Gen 1 1 x Optical S/PDIF out 5 x Audio jack
Motherboard

ASUS ROG Strix B460-H Gaming

Loading...
Loading
Loading...
Loading
Amazon

N/A

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
Out of stock

N/A

via Amazon

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
Out of stock

N/A

via Amazon

Loading...
Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History
Loading chart...
* Amazon pricing is not included in price history graphs.

Additional Features

Intel LGA 1200 socket: Designed to unleash the maximum performance of 10th Gen Intel Core processors

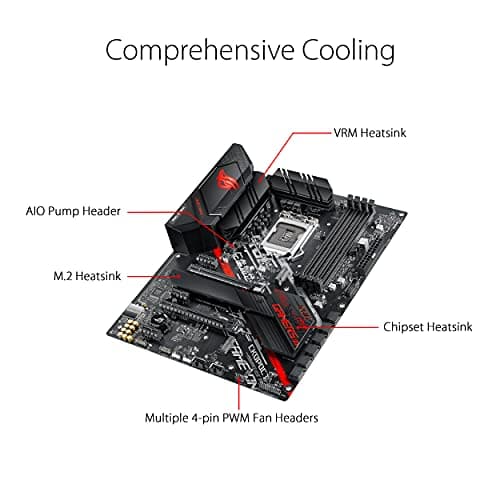

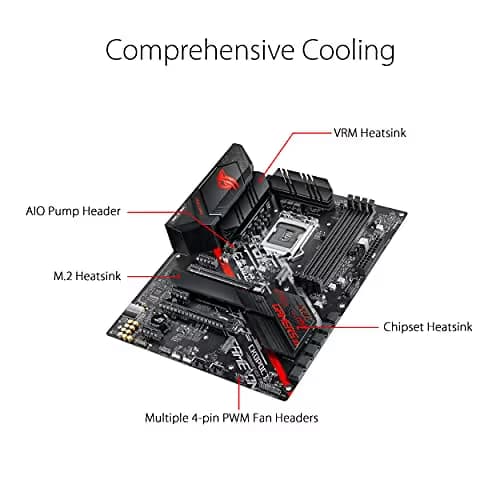

Optimized Thermal Design: VRM heatsink, PCH fanless heatsink, M. 2 heatsink, hybrid fan headers and Fan Xpert 4 utility

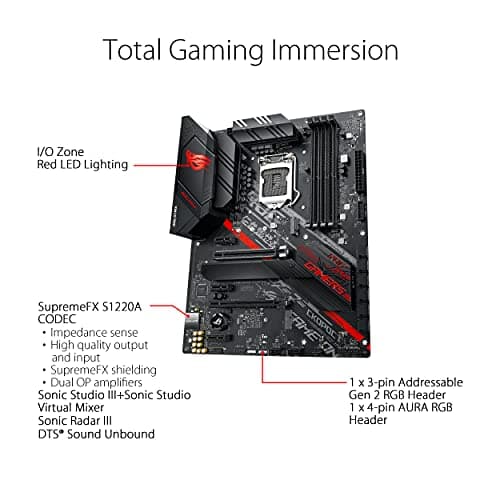

Industry-leading Gaming Audio: High fidelity audio with the SupremeFX S1220A codec, DTS Sound Unbound and Sonic Studio III draws you deeper into the game action

Unmatched Personalization: Time-honored red on black gaming look, ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers

High-performance Gaming Networking: On-board Intel 1Gb Lan with ASUS LANGuard

Fastest Connectivity: Supports HDMI 1. 4 and DisplayPort 1. 4 output, and featuring dual M. 2 , Thunderbolt 3 header

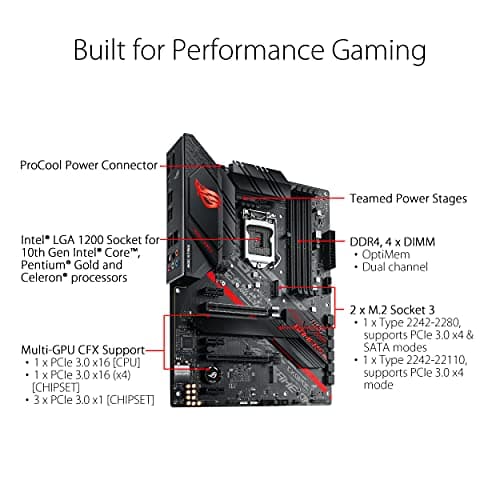

Robust Power Solution: 6+1+1 Dr. MOS power stages with ProCool power connector, high-quality alloy chokes and durable capacitors to provide reliable power when pushing CPU performance to the limit

Additional Features

Intel LGA 1200 socket: Designed to unleash the maximum performance of 10th Gen Intel Core processors

Optimized Thermal Design: VRM heatsink, PCH fanless heatsink, M. 2 heatsink, hybrid fan headers and Fan Xpert 4 utility

Industry-leading Gaming Audio: High fidelity audio with the SupremeFX S1220A codec, DTS Sound Unbound and Sonic Studio III draws you deeper into the game action

Unmatched Personalization: Time-honored red on black gaming look, ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers

High-performance Gaming Networking: On-board Intel 1Gb Lan with ASUS LANGuard

Fastest Connectivity: Supports HDMI 1. 4 and DisplayPort 1. 4 output, and featuring dual M. 2 , Thunderbolt 3 header

Robust Power Solution: 6+1+1 Dr. MOS power stages with ProCool power connector, high-quality alloy chokes and durable capacitors to provide reliable power when pushing CPU performance to the limit
