General Specifications
Socket
AM5
Form Factor
Micro ATX
Chipset
AMD B850
Max Memory
128 GB
Memory Type
DDR5
Memory Slots
2
Colors
WHITE
GREY
Lighting
None
PCIe Slots
1 x PCIe 5.0 x16
1 x PCIe 4.0 x4
M.2 Slots
M 2242/2260/2280 PCIe 5.0 x4
M 2280 PCIe 4.0 x4
SATA 6Gb/s
2
SATA 3Gb/s
Unknown
U.2 Ports
Unknown
Onboard Ethernet
Realtek 2.5 Gb/s
WiFi
Wi-Fi 7 Bluetooth 5.4
USB 2.0
2
USB 3.2 Gen 1
1
USB 3.2 Gen 2
1
USB 3.2 Gen 2x2
Unknown
USB 4.0
Unknown
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
3
Pump Headers
1
CPU Optional Fan Headers
1
ARGB 5V Headers
3
RGB 12V Headers
Unknown
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
1
Main Power
24-pin
CPU Power
8-pin
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
Yes
Audio Chipset
Realtek
Audio Channels
7.1

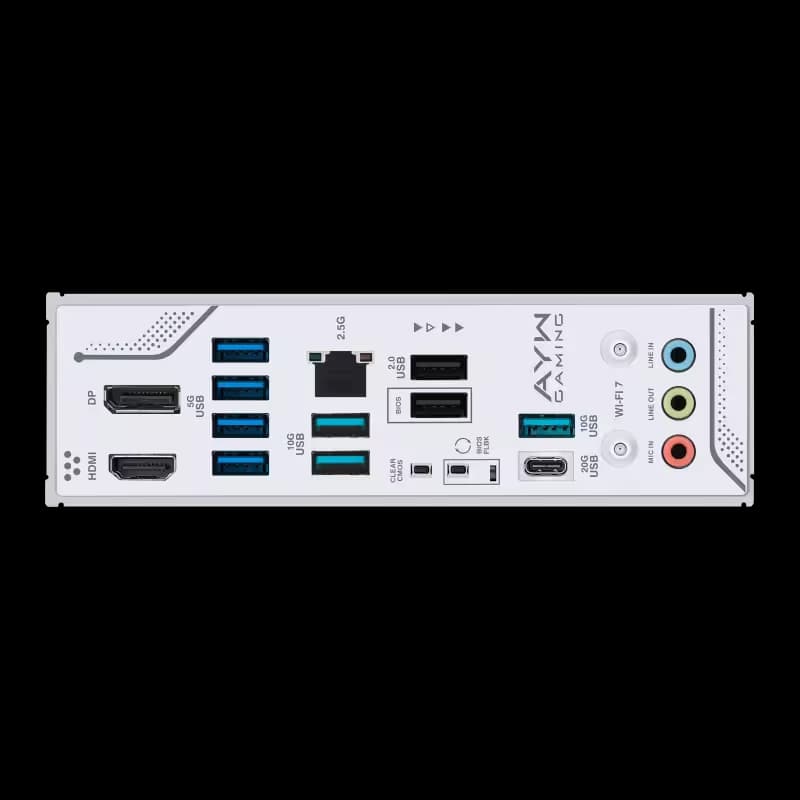

Back Panel Ports
1 x USB 20Gbps port (1 x USB Type-C)
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
1 x Clear CMOS button
Product Information
Manufacturer
ASUS
Series
Unknown
Variant
B850M AYW GAMING OC WIFI7 W
Release Year
2025
Manufacturer Color
White
UPC
None
EAN
None
Part Numbers
B850M-AYW-GAMING-OC-WIFI7-W
BuildCores ID
agx20ly5j
Motherboard
ASUS B850M AYW GAMING OC WIFI7 W
Loading...
LoadingLoading...
LoadingNo retailers available yet
Price History
Loading price history...
* Amazon pricing is not included in price history graphs.
