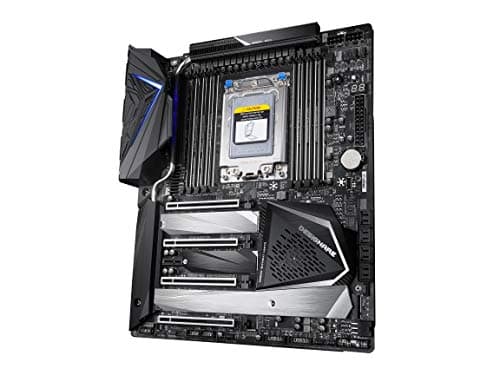

Gigabyte TRX40 DESIGNARE XL ATX sTRX4 image

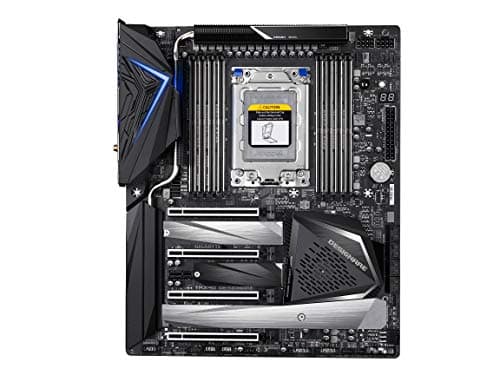

Gigabyte TRX40 DESIGNARE XL ATX sTRX4 image

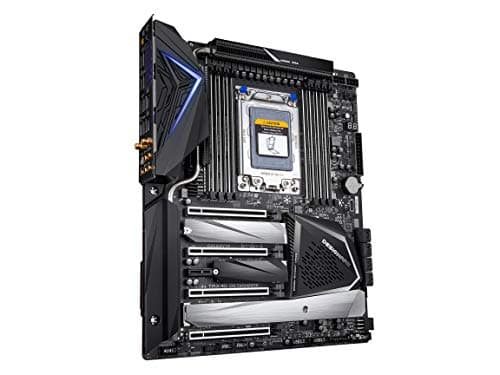

Gigabyte TRX40 DESIGNARE XL ATX sTRX4 image
Gigabyte TRX40 DESIGNARE XL ATX sTRX4 image
Gigabyte TRX40 DESIGNARE XL ATX sTRX4 image

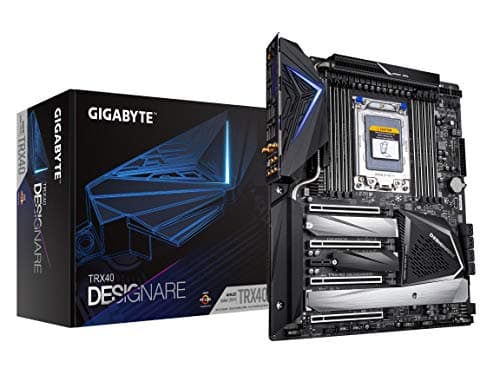

Gigabyte TRX40 DESIGNARE XL ATX sTRX4 main image
Gigabyte TRX40 DESIGNARE XL ATX sTRX4 image
Gigabyte TRX40 DESIGNARE XL ATX sTRX4 image
Gigabyte TRX40 DESIGNARE XL ATX sTRX4 image
Gigabyte TRX40 DESIGNARE XL ATX sTRX4 image
Gigabyte TRX40 DESIGNARE XL ATX sTRX4 image
Product Information
Manufacturer
Gigabyte
Series
TRX40 DESIGNARE
Variant
XL-ATX
Release Year
2019
Manufacturer Color
Unknown
UPC
889523020401
EAN
0889523020401
Part Numbers
TRX40 DESIGNARE 889523020401
BuildCores ID
aof8nksns
General Specifications
Socket
sTRX4
Form Factor
XL ATX
Chipset
AMD TRX40
Max Memory
256 GB
Memory Type
DDR4
Memory Slots
8
Colors
None
PCIe Slots
2 x PCIe 4.0 x16 2 x PCIe 4.0 x8 1 x PCIe 4.0 x1
M.2 Slots
M 2260 PCIe 4.0 x4 PCIe 4.0 x2 SATA M 2280 PCIe 4.0 x4 PCIe 4.0 x2 SATA M 22110 PCIe 4.0 x4 PCIe 4.0 x2 SATA M 2280 PCIe 4.0 x4 PCIe 4.0 x2
SATA 6Gb/s
8
U.2 Ports
0
Onboard Ethernet
Intel 1 Gb/s
WiFi
Unknown
USB 2.0
2
USB 3.2 Gen 1
4
USB 3.2 Gen 2
1
USB 4 80Gbps
Unknown
CPU Fan Headers
Unknown
Case Fan Headers
Unknown
Pump Headers
Unknown
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
Unknown
RGB 12V Headers
Unknown
Power Button Header
Unknown
Reset Button Header
Unknown
Power LED Header
Unknown
HDD LED Header
Unknown
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
Unknown
CPU Power
None
ECC Support
Yes
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
Yes
Audio Chipset
Realtek ALC1220-VB
Audio Channels
7.1

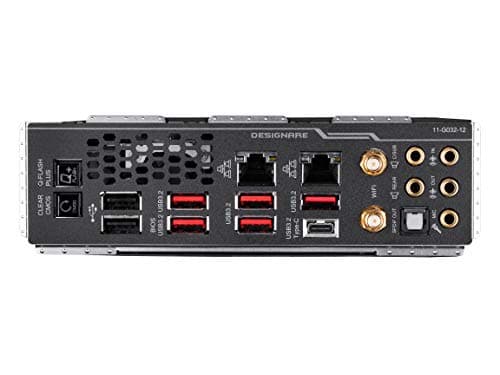

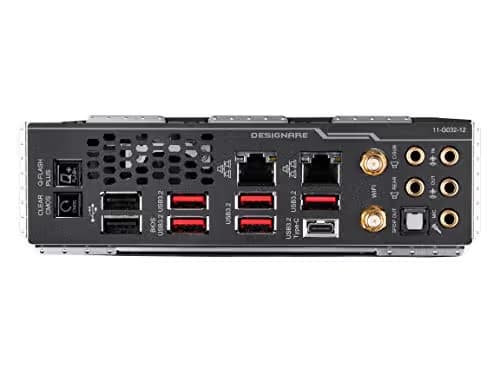

Back Panel Ports
1x USB-C (USB 3.1/3.2 Gen 2) 5x USB-A (USB 3.1/3.2 Gen 2) 2x USB-A (USB 2.0) 5x 1/8" / 3.5 mm 1x S/PDIF
Motherboard

Gigabyte TRX40 DESIGNARE XL ATX sTRX4

Loading...
Loading
Loading...
Loading
Amazon

N/A

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
Out of stock

N/A

via Amazon

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
Out of stock

N/A

via Amazon

Loading...
Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History
Loading chart...
* Amazon pricing is not included in price history graphs.

Additional Features

Supports 3rd Gen AMD Ryzen Threadripper Processors

Quad Channel ECC/ Non-ECC Unbuffered DDR4 8 DIMMs

16+3 Phases Infineon Digital VRM Solution with 70A Power Stage. Operating System Support for Windows 10 64-bit

Triple Thermal Protection with Fin-Arrays and 8mm Maga-Heatpipe

Dual Intel Gigabit LAN with cFosSpeed to shorten response time

Additional Features

Supports 3rd Gen AMD Ryzen Threadripper Processors

Quad Channel ECC/ Non-ECC Unbuffered DDR4 8 DIMMs

16+3 Phases Infineon Digital VRM Solution with 70A Power Stage. Operating System Support for Windows 10 64-bit

Triple Thermal Protection with Fin-Arrays and 8mm Maga-Heatpipe

Dual Intel Gigabit LAN with cFosSpeed to shorten response time
