General Specifications
Socket
AM5
Form Factor
Micro ATX
Chipset
AMD B650
Max Memory
96 GB
Memory Type
DDR5
Memory Slots
2
Colors
BLACK
RED
Lighting
None
PCIe Slots
1 x PCIe 4.0 x16
1 x PCIe 4.0 x1
M.2 Slots
M 2242-2260 PCIe 4.0 x4
M 2280 PCIe 4.0 x4
M 2242-2260 PCIe 4.0 x4
M 2280 PCIe 4.0 x4
SATA 6Gb/s
4
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
2.5 Gb/s
WiFi
Unknown
USB 2.0
2
USB 3.2 Gen 1
2
USB 3.2 Gen 2
0
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
0
CPU Fan Headers
1
Case Fan Headers
3
Pump Headers
0
CPU Optional Fan Headers
0
ARGB 5V Headers
0
RGB 12V Headers
0
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
0
Thunderbolt Headers
0
COM Port Headers
1
Main Power
24-pin
CPU Power
8-pin
ECC Support
Yes
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
No
Clear CMOS Button
No
Audio Chipset
Realtek
Audio Channels
7.1

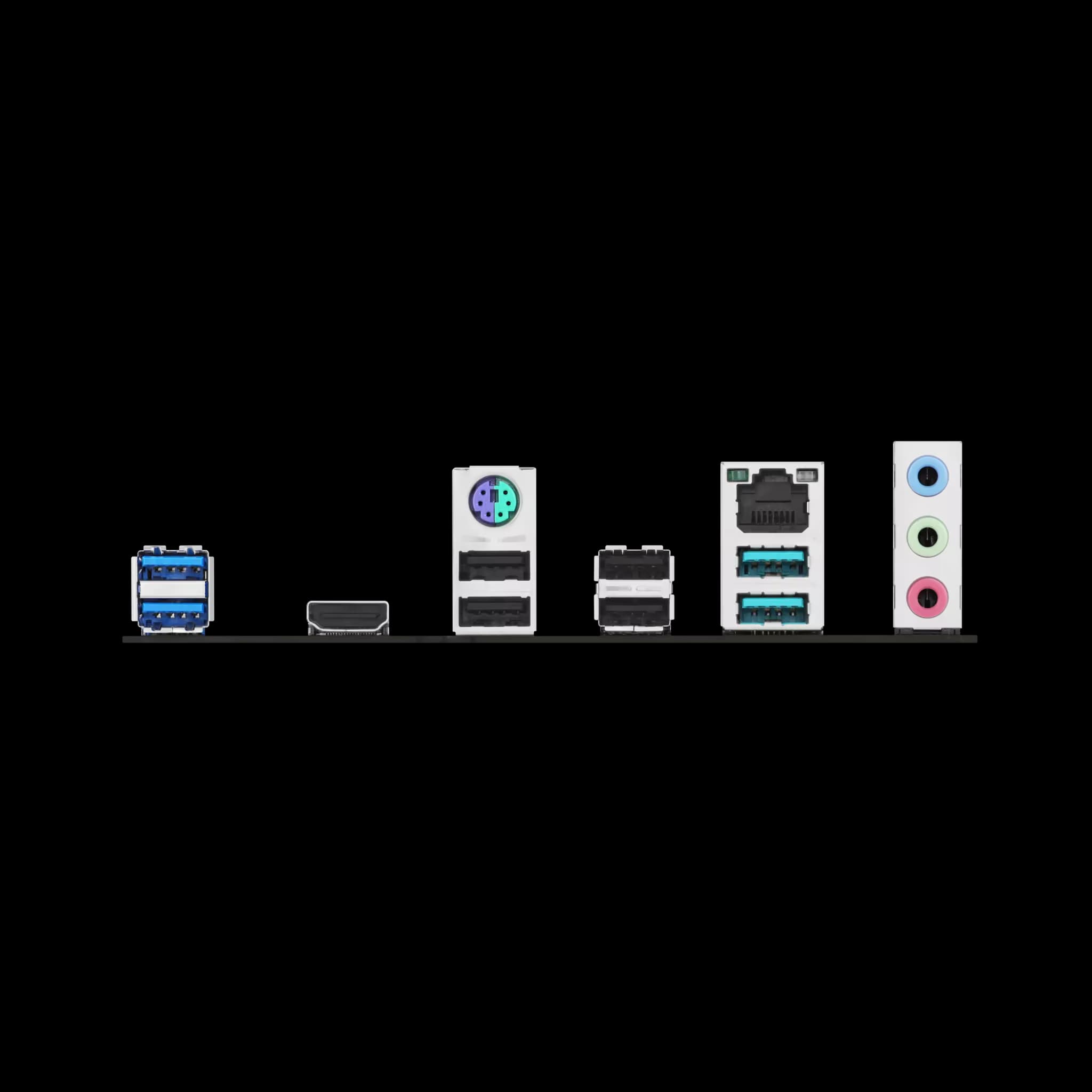

Back Panel Ports
2 x USB 3.2 Gen 2 Type-A
2 x USB 3.2 Gen 1 Type-A
4 x USB 2.0 Type-A
1 x HDMI
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Product Information
Manufacturer
ASUS
Series
Expedition
Variant
B650M-V7
Release Year
Unknown
Manufacturer Color
Black/Red
UPC
None
EAN
None
Part Numbers
EX-B650M-V7
BuildCores ID
aoikwh8tx
