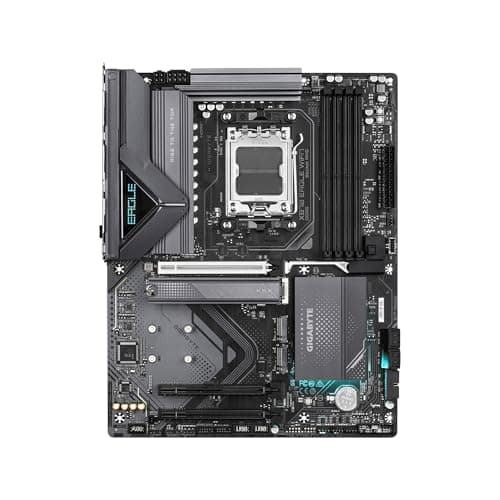

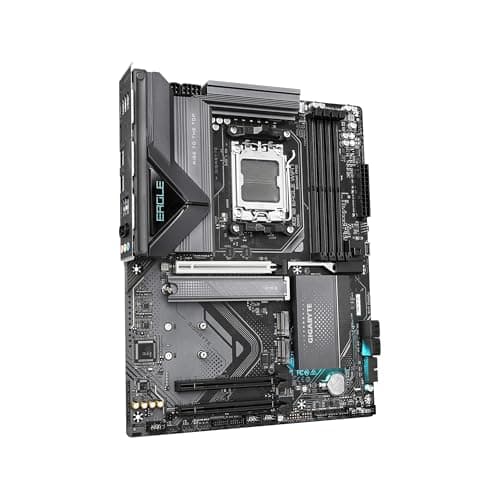

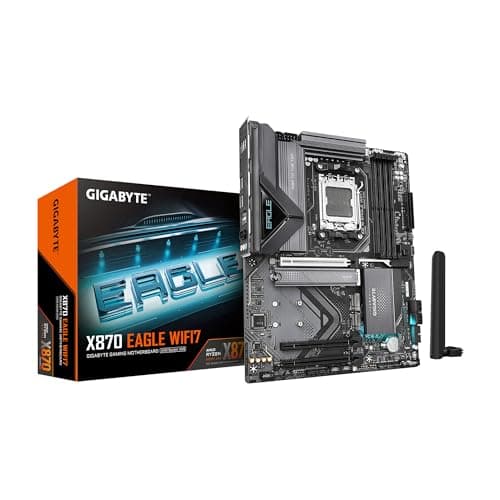

Gigabyte X870 EAGLE WIFI7 AM5 DDR5 ATX image

Gigabyte X870 EAGLE WIFI7 AM5 DDR5 ATX main image

General Specifications

Socket

AM5

Form Factor

ATX

Chipset

AMD X870

Max Memory

256 GB

Memory Type

DDR5

Memory Slots

Colors

BLACK GREY

Lighting

ARGB RGB

PCIe Slots

1 x PCIe 5.0 x16 2 x PCIe 3.0 x1

M.2 Slots

M 2280/22110/2580/25110 PCIe 5.0 x4 M 2280/22110/2580/25110 PCIe 4.0 x4 M 2280/22110/2580/25110 PCIe 4.0 x2

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek 2.5 Gb/s

WiFi

Wifi 7

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

HDD LED Header

Temperature Sensor Headers

Thunderbolt Headers

COM Port Headers

Main Power

24-pin

CPU Power

8-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Audio Chipset

Realtek

Audio Channels

7.1

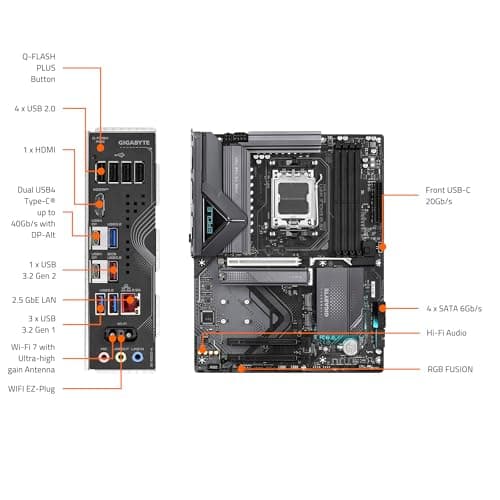

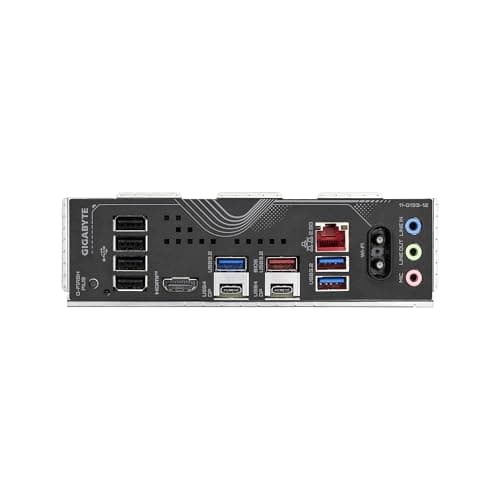

Back Panel Ports

1 x Q-Flash Plus button 2 x antenna connectors (2T2R) 1 x HDMI port* 2 x USB4® USB Type-C® ports (DisplayPort*) 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks

Product Information

Manufacturer

Gigabyte

Series

EAGLE

Variant

X870 WIFI7

Release Year

2024

Manufacturer Color

Black/Grey

UPC

889523045312

EAN

0889523045312 4719331864996

Part Numbers

X870 EAGLE WIFI7 9MX87EG7-00-10 X870EAGLEWIFI7

BuildCores ID

b3imkiyw4

See an issue?Report an issue on OpenDB

Motherboard

Gigabyte X870 EAGLE WIFI7 AM5 DDR5 ATX

Name: Gigabyte X870 EAGLE WIFI7 AM5 DDR5 ATX
Brand: Gigabyte
SKU: b3imkiyw4

SocketAM5

Form FactorATX

ChipsetAMD X870
