MSI MPG X870I EDGE TI EVO WIFI main image

Product Information

Manufacturer

MSI

Series

X870

Variant

EDGE TI EVO WIFI

Release Year

2026

Manufacturer Color

Unknown

UPC

824142447246

EAN

0824142447246

Part Numbers

MPG X870I EDGE TI EVO WIFI MPG X870I Edge TI EVO MPG X870I Edge TI EVO WiFi

BuildCores ID

b4j099u9t

General Specifications

Socket

AM5

Form Factor

Mini-ITX

Chipset

AMD X870

Max Memory

128 GB

Memory Type

DDR5

Memory Slots

Colors

WHITE GREY

PCIe Slots

1 x PCIe 5.0 x16

M.2 Slots

M 2280 PCIe 5.0 x4 M 2280 PCIe 4.0 x4 M 2280 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

Unknown

U.2 Ports

Unknown

Onboard Ethernet

None

WiFi

Wi-Fi 7 Bluetooth 5.4

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

Unknown

USB 3.2 Gen 2x2

USB 4.0

Unknown

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

Unknown

RGB 12V Headers

Unknown

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

24-pin

CPU Power

8-pin

ECC Support

Unknown

RAID Support

Yes

Back-Connect Connectors

Unknown

BIOS Flashback

Yes

Clear CMOS Button

Yes

Audio Chipset

Realtek ALC4080

Audio Channels

Unknown

Back Panel Ports

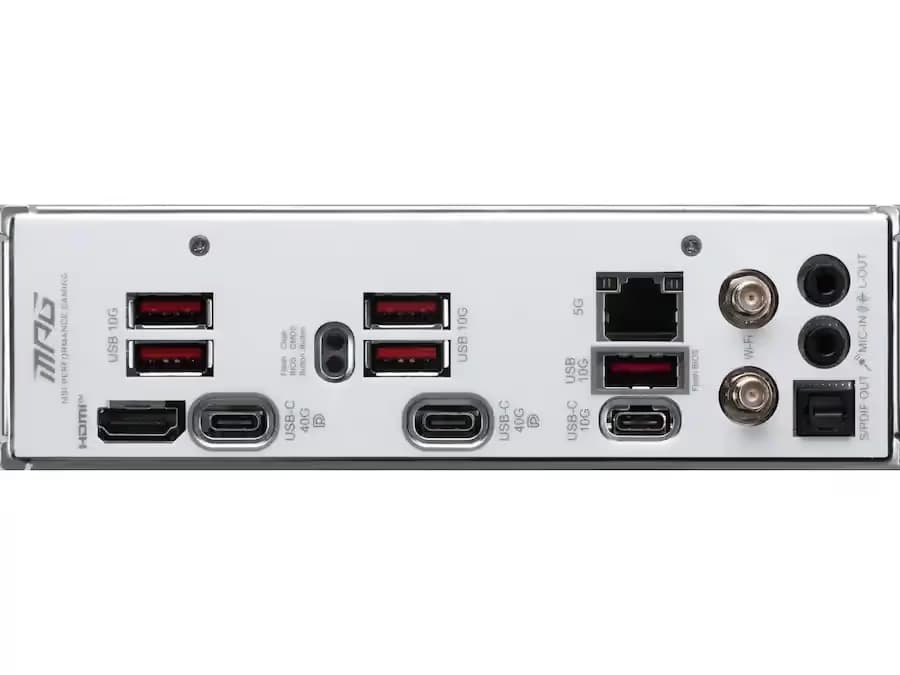

1 x Clear CMOS button 1 x Flash BIOS button 1 x HDMI 2.1 port 2 x USB 40Gbps Type-C ports 1 x USB 10Gbps Type-C port 1 x USB 10Gbps Type-A port 4 x USB 10Gbps Type-A ports 1 x 5Gbps LAN (RJ45) jack 2 x Wi-Fi Antenna connectors 2 x Audio jacks (Line-out Mic-in) 1 x Optical S/PDIF Out connector
