General Specifications
Socket
AM4
Form Factor
ATX
Chipset
AMD X570
Weight
Unknown
Max Memory
128 GB
Memory Type
DDR4
Memory Slots
4
Colors
BLACK
GREY

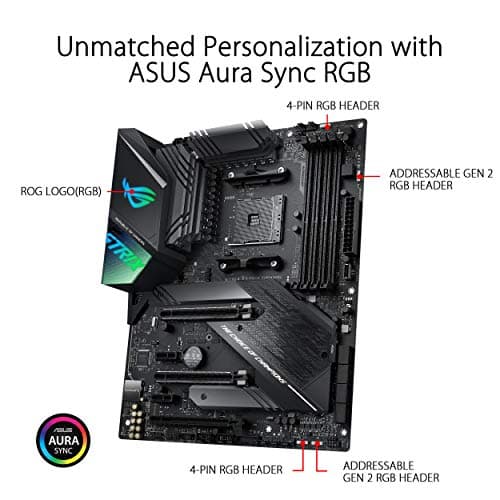

Lighting
RGB
ARGB
PCIe Slots
2 x PCIe 4.0 x16
1 x PCIe 4.0 x4
2 x PCIe 4.0 x1
M.2 Slots
M 2242/2260/2280/22110 PCIe 4.0 x4 and SATA
M 2242/2260/2280/22110 PCIe 3.0 x4 and SATA
M 2242/2260/2280/22110 PCIe 4.0 x4 and SATA
SATA 6Gb/s
8
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Intel I211-AT 1 Gb/s
WiFi
Unknown
USB 2.0
2
USB 3.2 Gen 1
1
USB 3.2 Gen 2
1
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
2
Pump Headers
2
CPU Optional Fan Headers
1
ARGB 5V Headers
2
RGB 12V Headers
2
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
1
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
24-pin
CPU Power
8-pin
4-pin
ECC Support
Yes
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
No
Audio Chipset
SupremeFX8-Channel High Definition Audio CODEC S1220A
Audio Channels
7.1

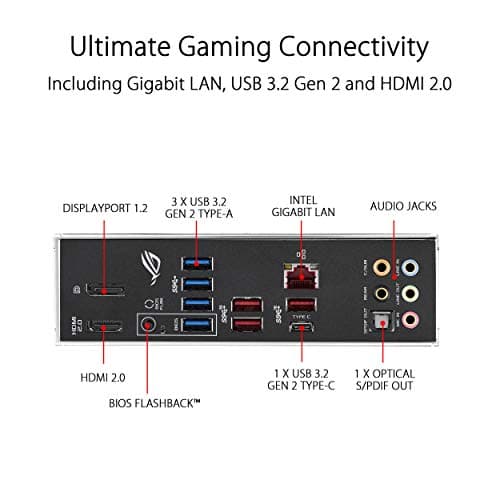

Back Panel Ports
1 x USB BIOS FlashBack™ Button(s)
1 x DisplayPort
1 x HDMI
1 x Optical S/PDIF out
5 x Audio jack(s)
4 x USB 3.2 Gen 1 (up to 5Gbps) ports
3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A)
1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C)
Anti-surge LAN (RJ45) port
Display Outputs
Connector: displayport
Count: 1
Version Label: 1.2
Video Signal: displayport
Transport: native
Graphics Route: integrated
Mode Claims: Resolution: 4096 × 2160 px
Refresh Rate: 60
Claim: maximum_at_resolution
Conditions: Requires compatible Ryzen processor with integrated Radeon Vega graphics
Connector: hdmi
Count: 1
Version Label: 2.0b
Video Signal: hdmi
Transport: native
Graphics Route: integrated
Mode Claims: Resolution: 4096 × 2160 px
Refresh Rate: 60
Claim: maximum_at_resolution
Conditions: Requires compatible Ryzen processor with integrated Radeon Vega graphics
Product Information
Manufacturer
ASUS
Series
ROG
Variant
X570-F Strix Gaming
Release Year
2019
Manufacturer Color
Black
UPC
192876378953
EAN
0192876378953
Part Numbers
None
BuildCores ID
bfrwc8446
Motherboard

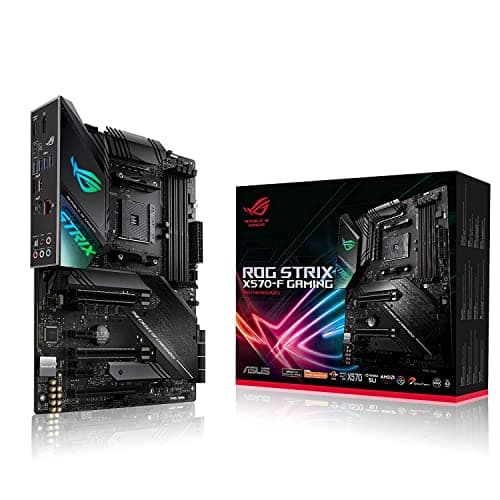

Asus X570 ROG Strix X570-F Gaming AM4 DDR4 ATX
SocketAM4
Form FactorATX
ChipsetAMD X570
Best Price
$399.00
viaLoading...
— | $399.00 | |
FREE s/h | $399.00 | |
MERCHANT | SHIPPING | PROMO | AVAILABILITY | TOTAL |
— | — | In stock | $399.00 via Amazon | |
FREE s/h | — | In stock | $399.00 via Walmart |
MERCHANT | SHIPPING | PROMO | AVAILABILITY | TOTAL |
— | — | In stock | $399.00 via Amazon | |
FREE s/h | — | In stock | $399.00 via Walmart |
* BuildCores may receive compensation for affiliate sales through these linksReport a pricing issue
