Product Information
Manufacturer
ASUS
Series
ROG Strix Z370-F
Variant
Gaming
Release Year
2017
Manufacturer Color
Unknown
UPC
889349854907
EAN
0889349854907
Part Numbers
Strix Z370-F Gaming 90MB0V50-M0EAY0
BuildCores ID
bsqo3qfuz
General Specifications
Socket
LGA 1151
Form Factor
ATX
Chipset
Intel Z370
Max Memory
64 GB
Memory Type
DDR4
Memory Slots
4
Colors
None
PCIe Slots
2 x PCIe 3.0 x16 1 x PCIe 3.0 x4 4 x PCIe 3.0 x1
M.2 Slots
M 2242/2260/2280 PCIE 3.0 x4 M 2242/2260/2280 PCIE 3.0 x4
SATA 6Gb/s
6
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Intel I219-V 1 Gb/s
WiFi
Unknown
USB 2.0
2
USB 3.2 Gen 1
2
USB 3.2 Gen 2
1
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
Unknown
Case Fan Headers
Unknown
Pump Headers
Unknown
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
Unknown
RGB 12V Headers
Unknown
Power Button Header
Unknown
Reset Button Header
Unknown
Power LED Header
Unknown
HDD LED Header
Unknown
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
Unknown
CPU Power
None
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
No
Clear CMOS Button
Yes
Audio Chipset
ROG SupremeFX S1220A
Audio Channels
7.1

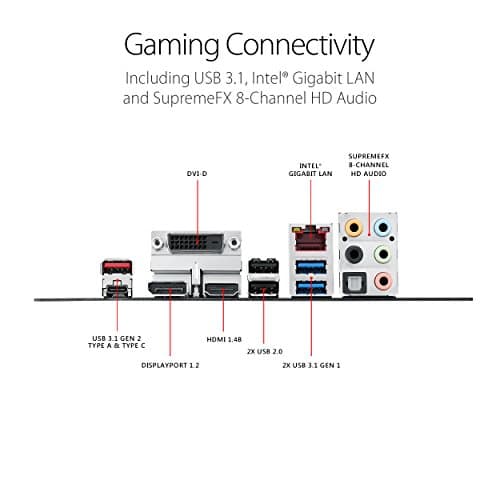

Back Panel Ports
1 x DVI port 1 x HDMI 1 x Anti-surge LAN (RJ45) port 1 x DisplayPort 2 x USB3.1 Gen2 ports (1 x Type-A [red] and 1 x Type-C ports at back panel) 2 x USB 3.1 Gen1 ports [blue] 2 x USB 2.0 1 x Optical 5 Ports
Motherboard

ASUS ROG Strix Z370-F Gaming

Loading...
Loading
Loading...
Loading
Amazon

N/A

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
Out of stock

N/A

via Amazon

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
Out of stock

N/A

via Amazon

Loading...
Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History
Loading chart...
* Amazon pricing is not included in price history graphs.

Additional Features

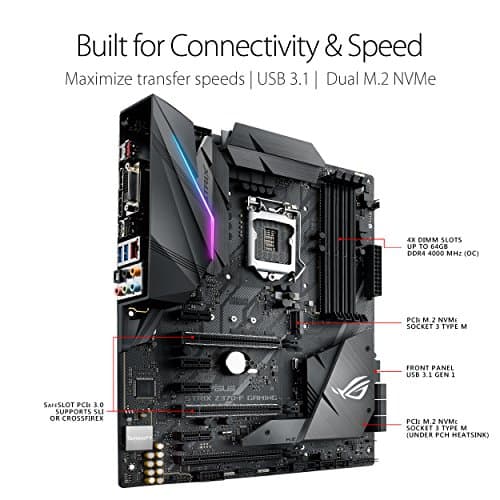

Designed exclusively for 8th generation Intel Core processors to maximize connectivity and speed with Dual M.2, Gigabit LAN, USB 3.1 Gen2, and Intel Optane Memory compatibility

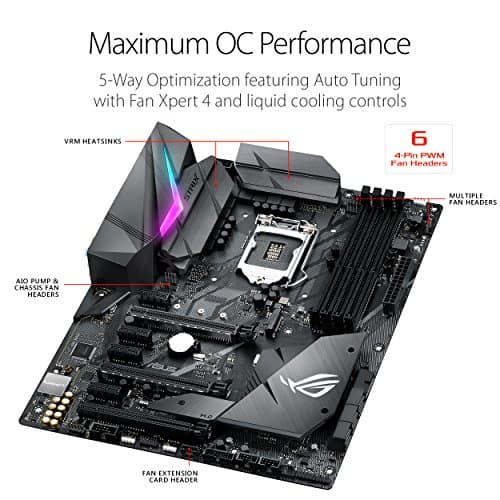

5-Way Optimization with Auto-Tuning and FanXpert 4 automatically tailors overclocking profiles to your unique build for maximum OC performance and dynamic system cooling

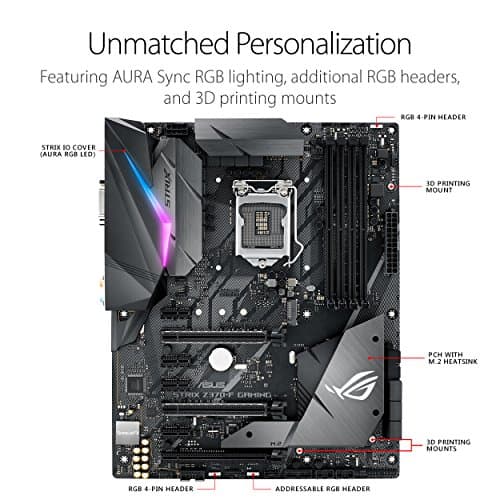

Unmatched Personalization with ASUS exclusive AURA Sync RGB lighting, two additional RGB headers, addressable RGB header and 3D-printing mounts

Two Patent-pending Safe Slots feature an injection molding process that integrates metal framing for a stronger, firmly anchored PCIe slot built for heavyweight GPUs

Industry-leading 8-channel HD audio with dual headphone amplifiers and ROG exclusive SupremeFX S1220A CODEC driven by Japanese capacitors

Additional Features

Designed exclusively for 8th generation Intel Core processors to maximize connectivity and speed with Dual M.2, Gigabit LAN, USB 3.1 Gen2, and Intel Optane Memory compatibility

5-Way Optimization with Auto-Tuning and FanXpert 4 automatically tailors overclocking profiles to your unique build for maximum OC performance and dynamic system cooling

Unmatched Personalization with ASUS exclusive AURA Sync RGB lighting, two additional RGB headers, addressable RGB header and 3D-printing mounts

Two Patent-pending Safe Slots feature an injection molding process that integrates metal framing for a stronger, firmly anchored PCIe slot built for heavyweight GPUs

Industry-leading 8-channel HD audio with dual headphone amplifiers and ROG exclusive SupremeFX S1220A CODEC driven by Japanese capacitors
