Product Information

Manufacturer

MSI

Series

B850

Variant

MLG EDITION

Release Year

Unknown

Manufacturer Color

Unknown

UPC

824142440988

EAN

0824142440988

Part Numbers

MS-7E62 B850 MLG EDITION B850 MLG EDTION

BuildCores ID

c21ubmgfy

General Specifications

Socket

AM5

Form Factor

ATX

Chipset

AMD B850

Max Memory

256 GB

Memory Type

DDR5

Memory Slots

Colors

BLACK RED PURPLE

PCIe Slots

1 x PCIe 5.0 x16 1 x PCIe 3.0 x1 1 x PCIe 4.0 x4

M.2 Slots

M 2280/22110 PCIe 5.0 x4 M 2260/2280 PCIe 5.0 x4 M 2260/2280 PCIe 4.0 x2 M 2260/2280 PCIe 4.0 x2

SATA 6Gb/s

SATA 3Gb/s

Unknown

U.2 Ports

Unknown

Onboard Ethernet

None

WiFi

Wi-Fi 7 Bluetooth 5.4

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

Unknown

USB 3.2 Gen 2x2

USB 4.0

Unknown

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

24-pin

CPU Power

8-pin 8-pin

ECC Support

Unknown

RAID Support

Yes

Back-Connect Connectors

Unknown

BIOS Flashback

Yes

Clear CMOS Button

Yes

Audio Chipset

Realtek ALC4080

Audio Channels

Unknown

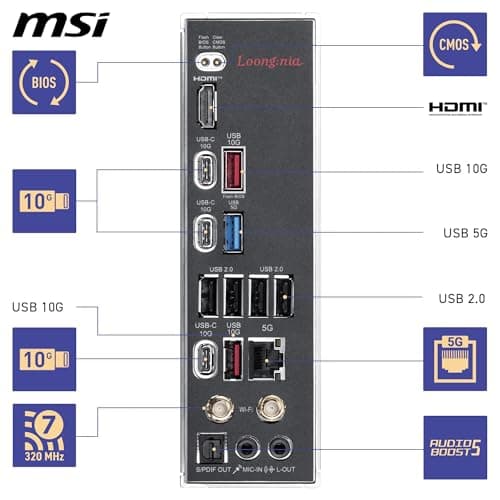

Back Panel Ports

1 x Flash BIOS Button 1 x Clear CMOS Button 1 x HDMI 2.1 port 3 x USB 10Gbps Type-C ports 2 x USB 10Gbps Type-A ports 1 x USB 5Gbps Type-A port 4 x USB 2.0 Type-A ports 1 x 5Gbps LAN (RJ45) port 2 x Wi-Fi antenna connectors 2 x Audio jacks (Line-out Mic-in) 1 x Optical S/PDIF Out connector

See an issue?Report an issue on OpenDB
