General Specifications
Socket
LGA 1700
Form Factor
ATX
Chipset
Intel Z790
Max Memory
128 GB
Memory Type
DDR4
Memory Slots
4
Colors
BLACK
Lighting
None
PCIe Slots
3 x PCIe 5.0 x16
1 x PCIe 4.0 x4
2 x PCIe 3.0 x1
M.2 Slots
M 2242/ 2260/ 2280/ 22110 PCIe 4.0 x4
M 2242/ 2260/ 2280 PCIe 4.0 x4
M 2242/ 2260/ 2280 PCIe 4.0 x4
M 2242/ 2260/ 2280 PCIe 4.0 x4
SATA 6Gb/s
6
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Intel 2.5 Gb/s
WiFi
Wifi 6E Bluetooth 5.3
USB 2.0
2
USB 3.2 Gen 1
2
USB 3.2 Gen 2
1
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
6
Pump Headers
1
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
2
RGB 12V Headers
1
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
Unknown
Thunderbolt Headers
1
COM Port Headers
Unknown
Main Power
24-pin
CPU Power
8-pin
8-pin
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
No
Audio Chipset
Realtek
Audio Channels
7.1

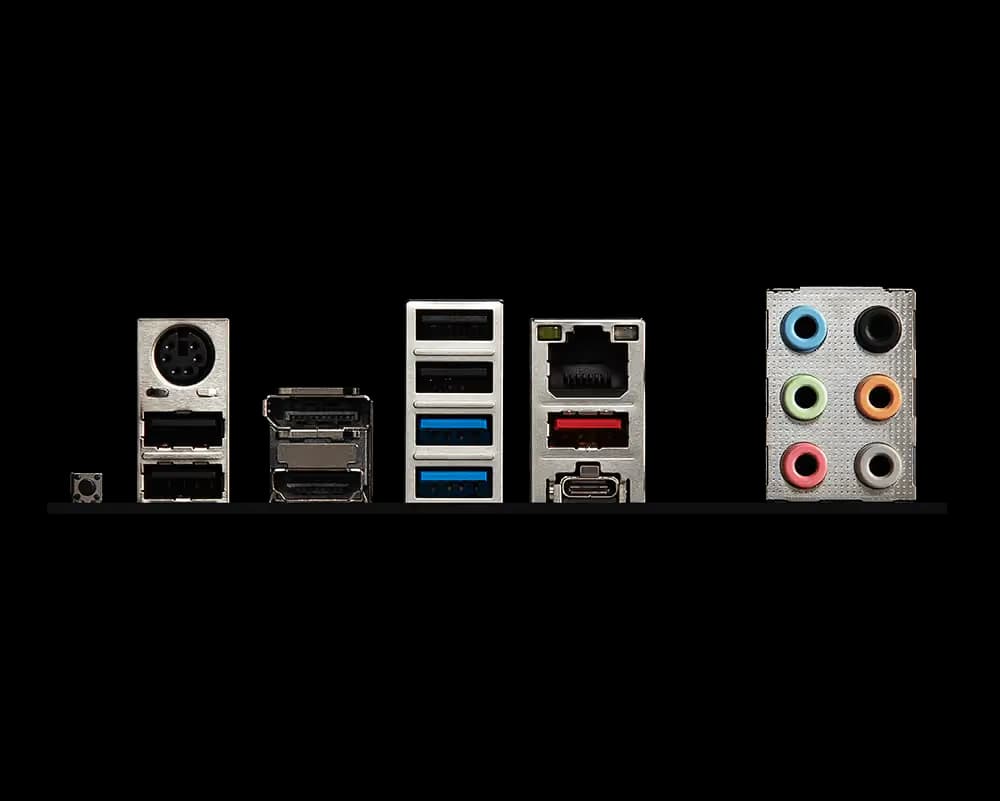

Back Panel Ports
1x Flash BIOS button
1x PS/2 port
4x USB 2.0 Type-A ports
1x DisplayPort
1x HDMI port
1x LAN (RJ45) jack
2x USB 3.2 Gen 1 5Gbps Type-A ports
1x USB 3.2 Gen 2 10Gbps Type-A port
1x USB 3.2 Gen 2x2 20Gbps Type-C port
2x Wi-Fi Antenna connectors
6x Audio jacks
Product Information
Manufacturer
MSI
Series
PRO
Variant
Z790-P
Release Year
2022
Manufacturer Color
Black
UPC
None
EAN
None
Part Numbers
PRO Z790-P DDR4
7E06-011R
BuildCores ID
c55x8fnhc
Motherboard
MSI PRO Z790-P DDR4 ATX
SocketLGA 1700
Form FactorATX
ChipsetIntel Z790
