Product Information

Manufacturer

Gigabyte

Series

Z490 GAMING X

Release Year

2020

Manufacturer Color

Unknown

UPC

889523021378

EAN

0889523021378

Part Numbers

Z490 GAMING X

BuildCores ID

cb3c0ykiw

General Specifications

Socket

LGA 1200

Form Factor

ATX

Chipset

Intel Z490

Max Memory

128 GB

Memory Type

DDR4

Memory Slots

Colors

None

PCIe Slots

1 x PCIe 3.0 x16 1 x PCIe 3.0 x4 3 x PCIe 3.0 x1

M.2 Slots

M 2242 2260 2280 22110 PCIe 3.0 x2 PCIe 3.0 x4 SATA M 2242 2260 2280 PCIe 3.0 x2 PCIe 3.0 x4 SATA

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Intel 1 Gb/s

WiFi

Unknown

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Unknown

Case Fan Headers

Unknown

Pump Headers

Unknown

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

Unknown

RGB 12V Headers

Unknown

Power Button Header

Unknown

Reset Button Header

Unknown

Power LED Header

Unknown

HDD LED Header

Unknown

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

Unknown

CPU Power

None

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Yes

Audio Chipset

Realtek ALC1200

Audio Channels

7.1

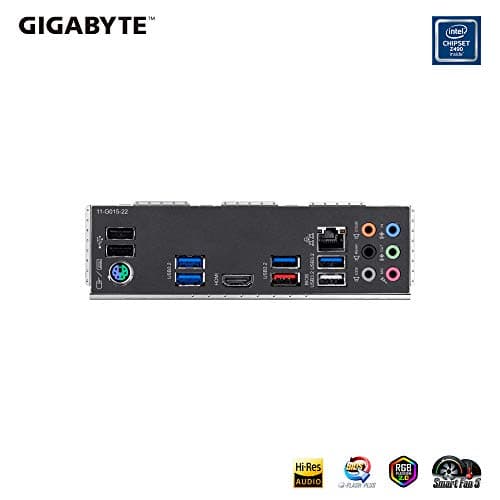

Back Panel Ports

1x USB-A (USB 3.1/3.2 Gen 2) 5x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 2x USB-A (USB 2.0) 1x HDMI 1.4 6x 1/8" / 3.5 mm 1x Intel Gigabit 1x PS/2

See an issue?Report an issue on OpenDB

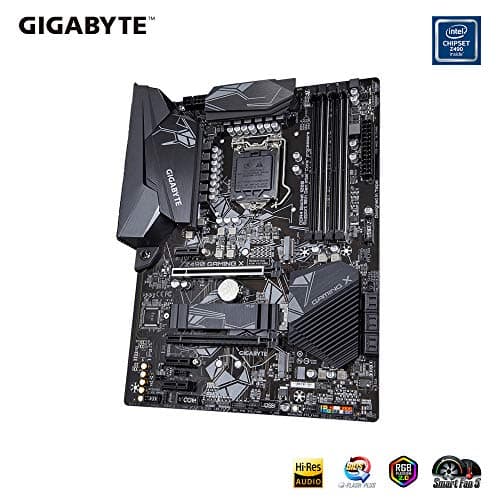

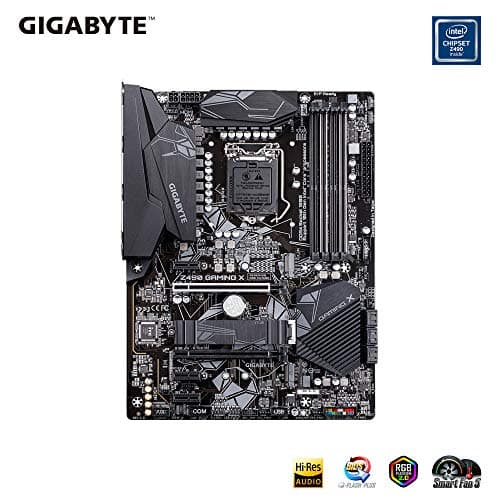

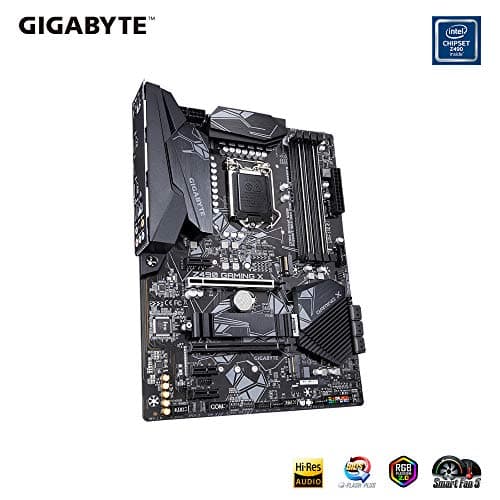

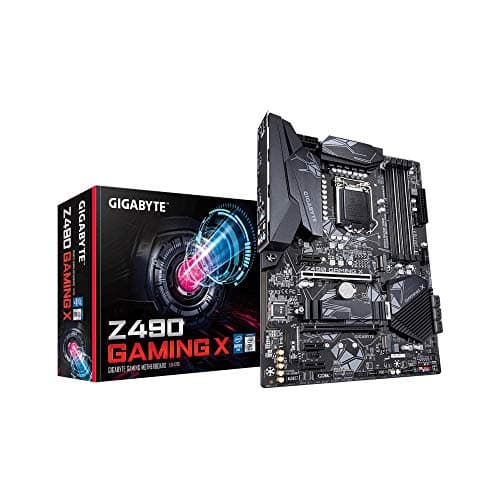

Motherboard

Gigabyte Z490 Gaming X

	—	N/A
Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	Out of stock	N/A via Amazon Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	Out of stock	N/A via Amazon Loading... Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History

Loading chart...

* Amazon pricing is not included in price history graphs.

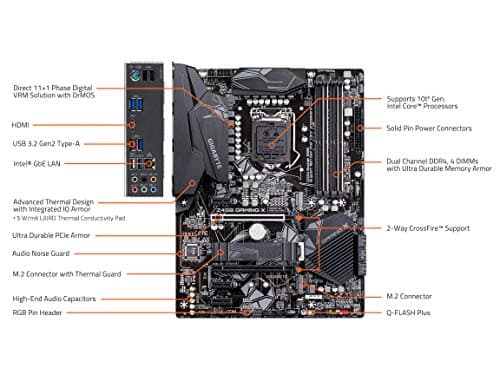

Additional Features

• Supports 10th Gen Intel Core processors

• Direct 11+1 Phase Digital VRMs with DrMOS Stages

• Extended MOS Heatsink VRM Cooling

• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs

• Intel GbE LAN.2x M.2 slots, 1x Thermal Guard.AMP UP Audio ALC1200 AUDIO DAC.RGB Fusion 2.0.Smart Fan 5 Hybrid Fan Headers with smart fan functions (Fan Stop, PWM Controls, Noise Detection).Rear - 1*USB 3.2 Gen2 (A), 5*USB 3.2 Gen1, 2*USB 2.0

Additional Features

• Supports 10th Gen Intel Core processors

• Direct 11+1 Phase Digital VRMs with DrMOS Stages

• Extended MOS Heatsink VRM Cooling

• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
