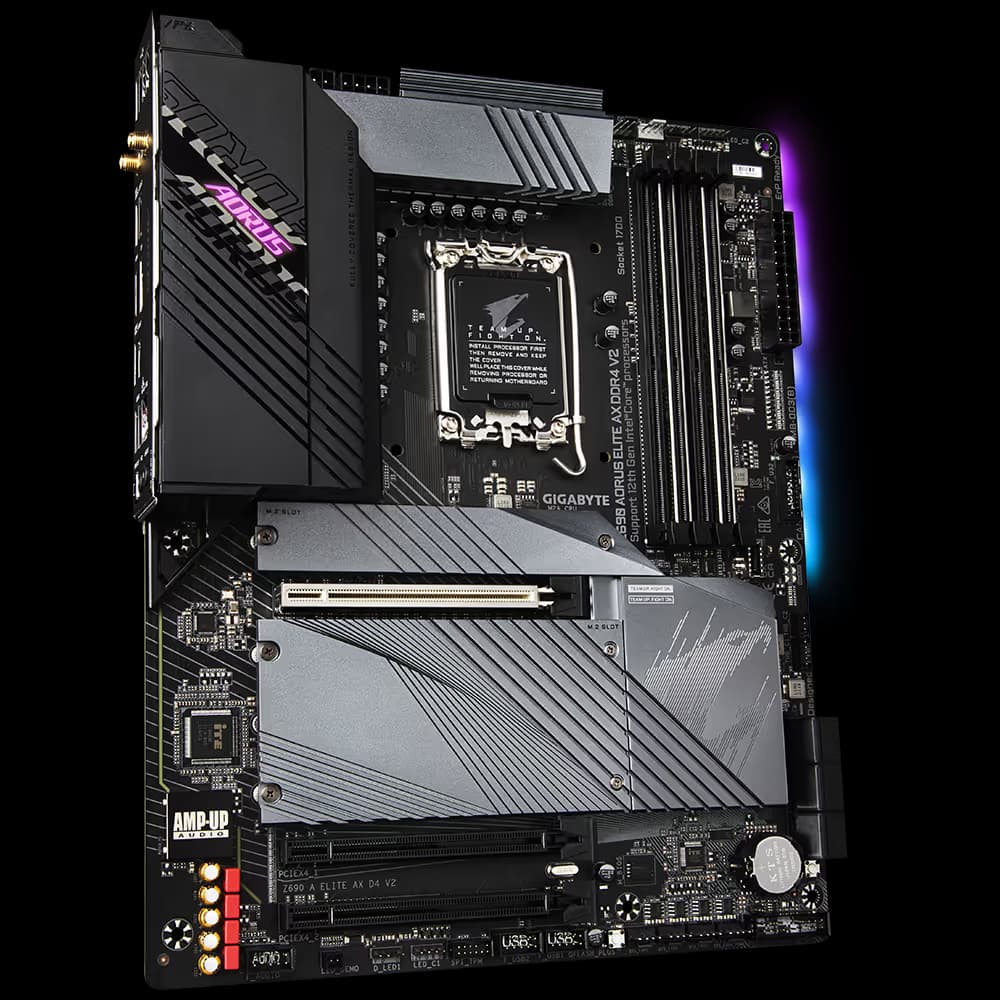

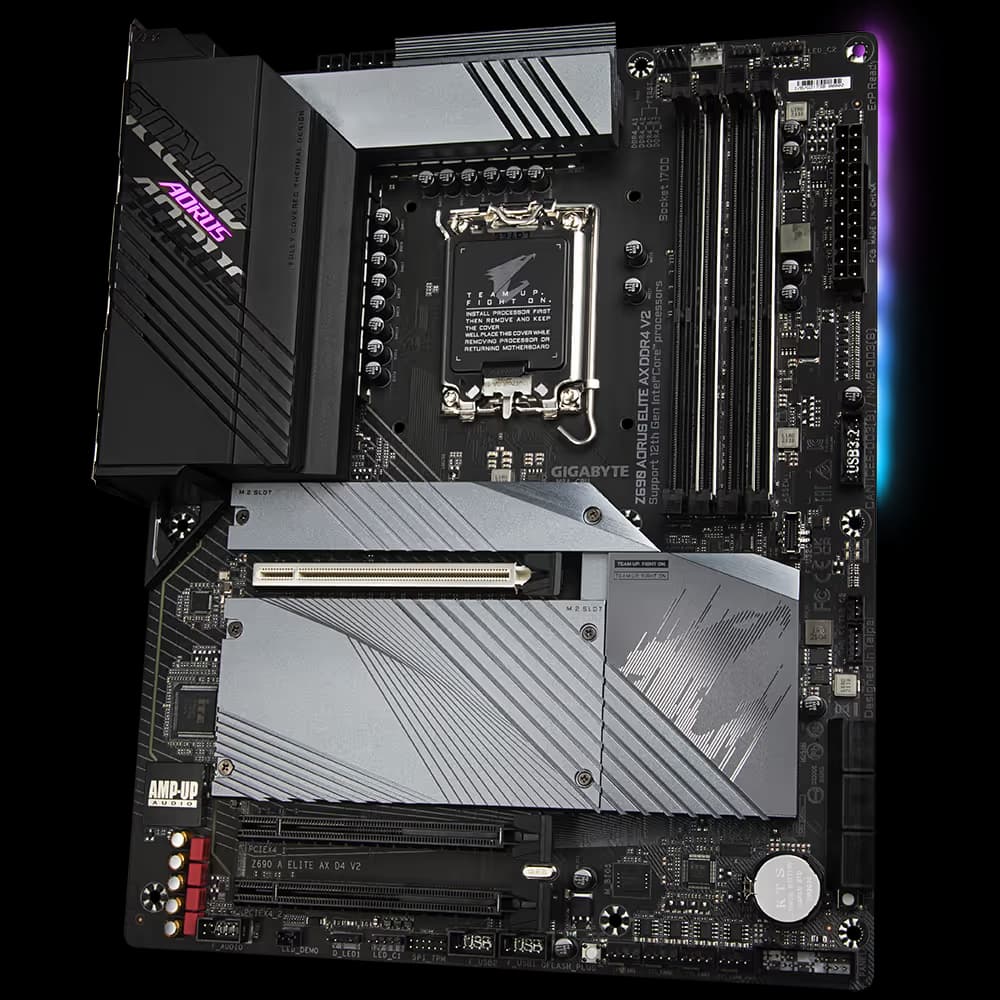

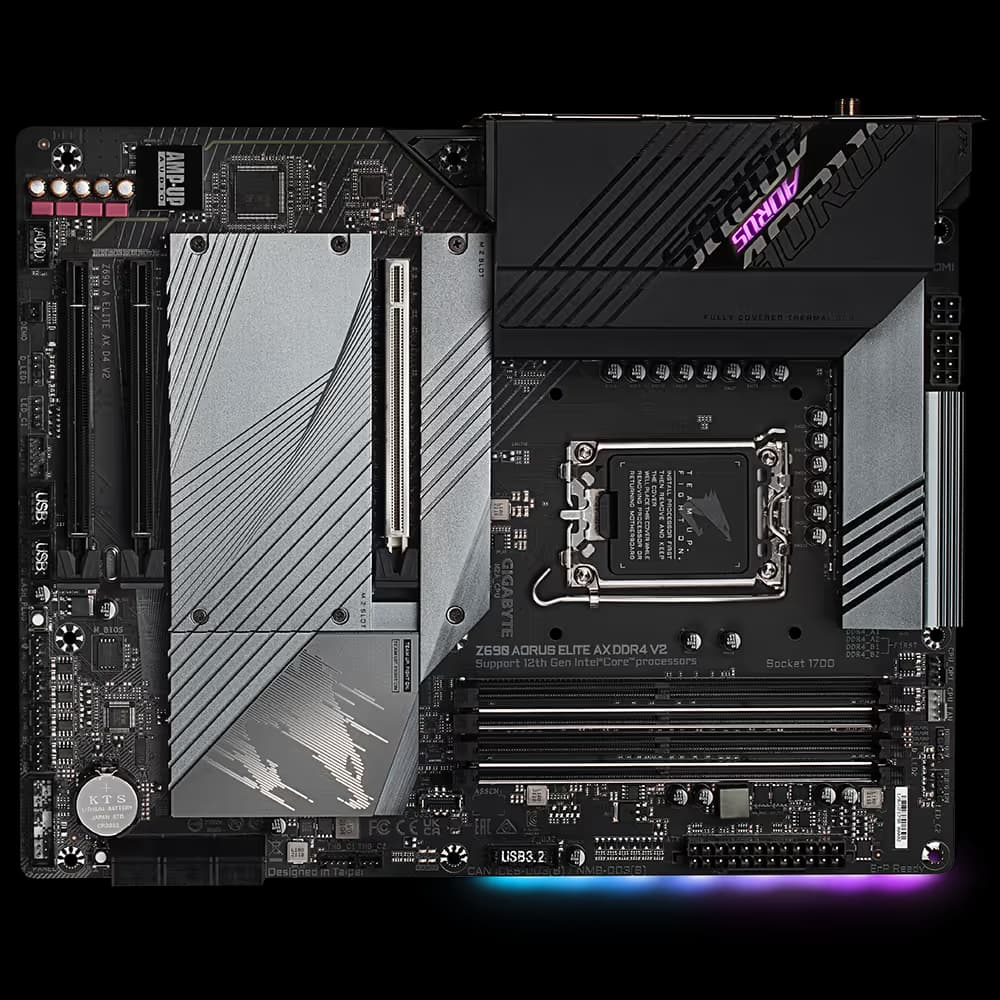

Gigabyte Z690 AORUS ELITE AX DDR4 V2 image

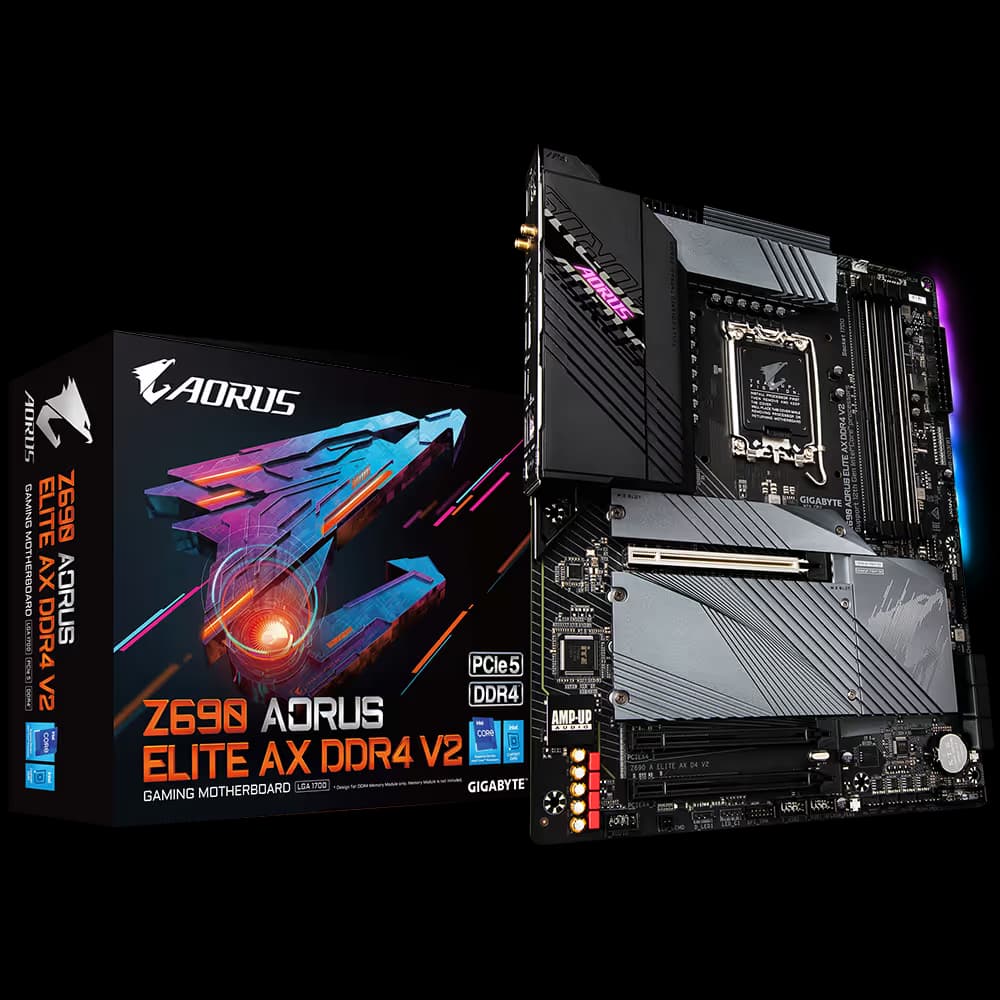

Gigabyte Z690 AORUS ELITE AX DDR4 V2 main image

Product Information

Manufacturer

Gigabyte

Series

AORUS

Variant

Z690 ELITE AX DDR4 V2

Release Year

2022

Manufacturer Color

Black

UPC

None

EAN

None

Part Numbers

Z690-AORUS-ELITE-AX-DDR4-V2-rev-10 Z790 AORUS ELITE AX

BuildCores ID

cl1gr1dhz

General Specifications

Socket

LGA 1700

Form Factor

ATX

Chipset

Intel Z690

Max Memory

128 GB

Memory Type

DDR4

Memory Slots

Colors

BLACK GREY

Lighting

Unknown

PCIe Slots

1 x PCIe 5.0 x16 2 x PCIe 3.0 x4

M.2 Slots

M 2260/2280/22110 PCIe 4.0 x4 M 2260/2280/22110 PCIe 4.0 x4 M 2260/2280/22110 PCIe 4.0 x4 M 2260/2280/22110 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

Unknown

U.2 Ports

Unknown

Onboard Ethernet

Realtek 2.5GbE 2.5 Gb/s

WiFi

Wi-Fi 6E Bluetooth 5.2

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

Unknown

USB 4.0

Unknown

USB 4 80Gbps

Unknown

CPU Fan Headers

Unknown

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Unknown

Thunderbolt Headers

COM Port Headers

Unknown

Main Power

24-pin

CPU Power

8-pin 4-pin

ECC Support

Yes

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Yes

Audio Chipset

Realtek ALC897

Audio Channels

7.1

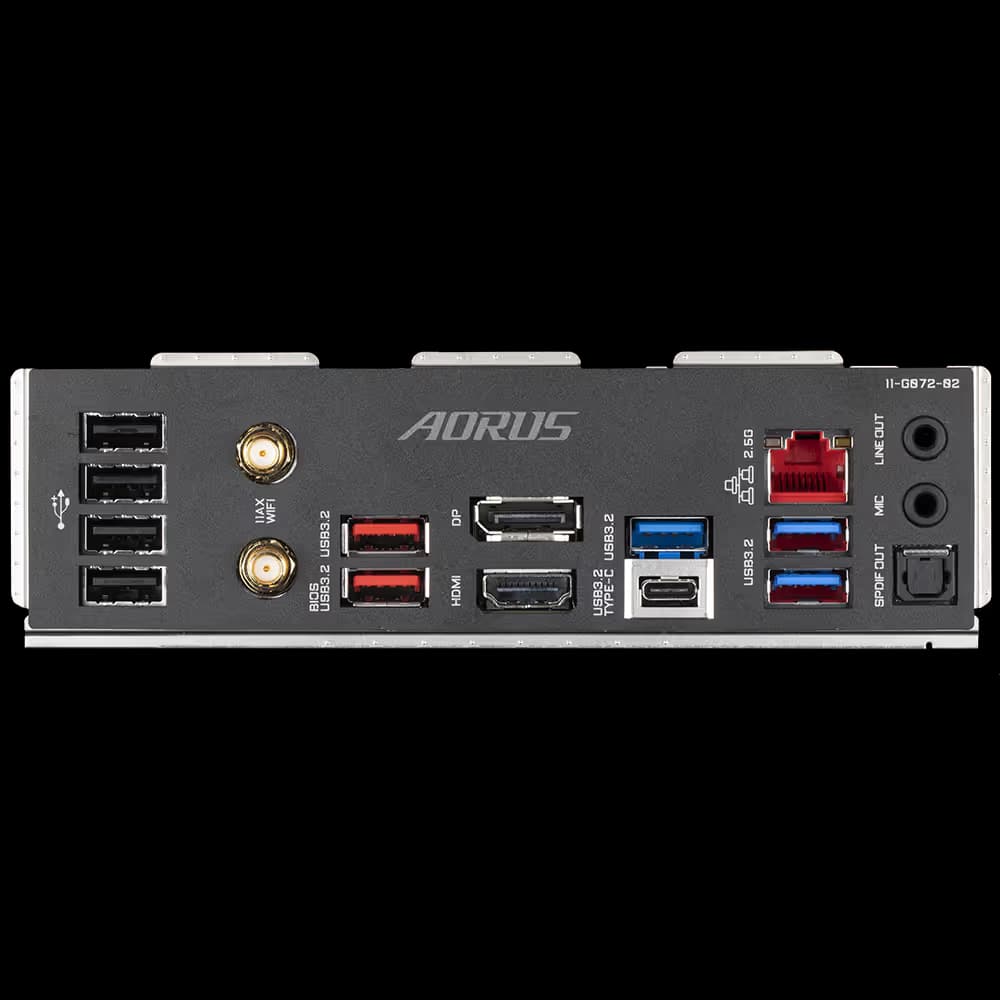

Back Panel Ports

1 x USB Type-C port with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks

See an issue?Report an issue on OpenDB
