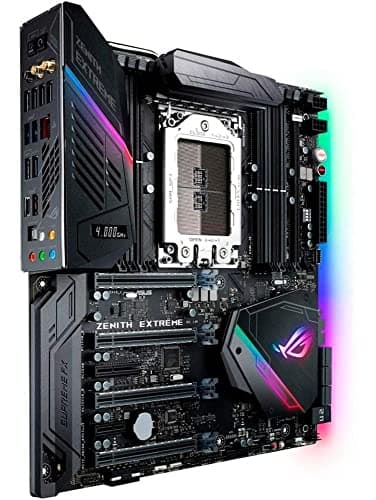

ASUS Republic of Gamers Zenith Extreme TR4 Extended ATX Motherboard image
ASUS Republic of Gamers Zenith Extreme TR4 Extended ATX Motherboard image
ASUS Republic of Gamers Zenith Extreme TR4 Extended ATX Motherboard image
ASUS Republic of Gamers Zenith Extreme TR4 Extended ATX Motherboard image
ASUS Republic of Gamers Zenith Extreme TR4 Extended ATX Motherboard image
ASUS Republic of Gamers Zenith Extreme TR4 Extended ATX Motherboard image
ASUS Republic of Gamers Zenith Extreme TR4 Extended ATX Motherboard image
ASUS Republic of Gamers Zenith Extreme TR4 Extended ATX Motherboard main image
ASUS Republic of Gamers Zenith Extreme TR4 Extended ATX Motherboard image
ASUS Republic of Gamers Zenith Extreme TR4 Extended ATX Motherboard image
ASUS Republic of Gamers Zenith Extreme TR4 Extended ATX Motherboard image
ASUS Republic of Gamers Zenith Extreme TR4 Extended ATX Motherboard image
ASUS Republic of Gamers Zenith Extreme TR4 Extended ATX Motherboard image
ASUS Republic of Gamers Zenith Extreme TR4 Extended ATX Motherboard image
ASUS Republic of Gamers Zenith Extreme TR4 Extended ATX Motherboard image
Product Information
Manufacturer
ASUS
Series
ROG Zenith
Variant
Extreme
Release Year
2017
Manufacturer Color
Unknown
UPC
889349799451
EAN
0889349799451
Part Numbers
ROG ZENITH EXTREME
BuildCores ID
cxpcov2x8
General Specifications
Socket
TR4
Form Factor
ATX
Chipset
AMD X399
Max Memory
128 GB
Memory Type
DDR4
Memory Slots
8
Colors
None
PCIe Slots
4 x PCIe 3.0 x16 1 x PCIe 2.0 x4 1 x PCIe 2.0 x1
M.2 Slots
M 2242/2260/2280/22110 PCIe 3.0 x4 SATA M 2242/2260/2280 PCIe 3.0 x4 SATA
SATA 6Gb/s
6
SATA 3Gb/s
0
U.2 Ports
1
Onboard Ethernet
ROG AREION 10 Gb/s Intel i211AT 1 Gb/s
WiFi
Unknown
USB 2.0
2
USB 3.2 Gen 1
2
USB 3.2 Gen 2
1
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
Unknown
Case Fan Headers
Unknown
Pump Headers
Unknown
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
Unknown
RGB 12V Headers
Unknown
Power Button Header
Unknown
Reset Button Header
Unknown
Power LED Header
Unknown
HDD LED Header
Unknown
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
Unknown
CPU Power
None
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
Yes
Audio Chipset
ROG SupremeFX High Definition Audio CODEC S1220
Audio Channels
7.1
Back Panel Ports
1 x LAN (RJ45) 1 x USB 3.1 Gen 2 Type-A 1 x USB 3.1 Gen 2 Type-C 5 x Audio Jacks 8 x USB 3.1 Gen 1 Type-A
Motherboard

ASUS Republic of Gamers Zenith Extreme TR4 Extended ATX Motherboard

Loading...
Loading
Loading...
Loading
Amazon

N/A

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
Out of stock

N/A

via Amazon

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
Out of stock

N/A

via Amazon

Loading...
Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History
Loading chart...
* Amazon pricing is not included in price history graphs.

Additional Features

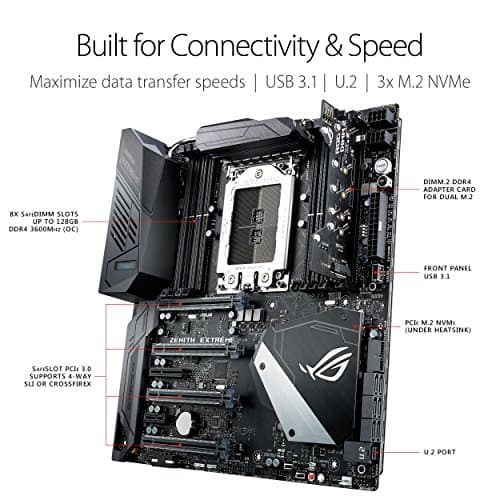

Powered by AMD Ryzen Threadripper TR4 processors to maximize connectivity and speed with support for up to 128GB of DDR4 memory, three (3) NVMe M.2 drives, front side U.2 and front panel USB 3.1 Gen2 port

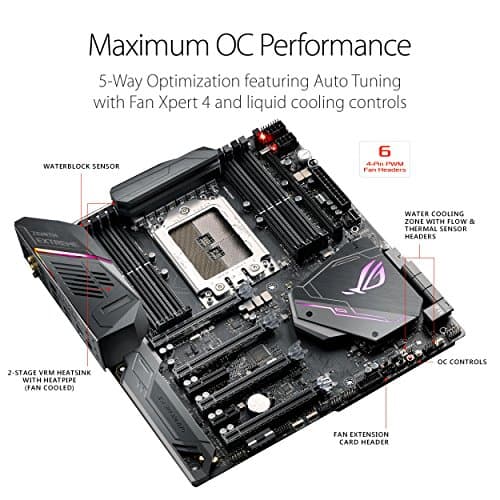

5-Way Optimization featuring Auto-Tuning and FanXpert 4 provides automatic overclocking profiles for maximum OC performance while AIO and watercooling headers deliver dynamic system cooling

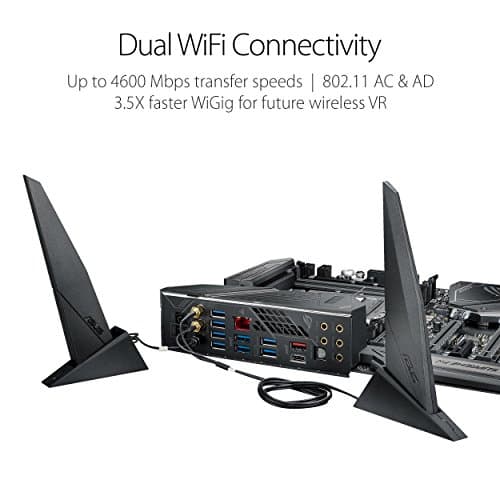

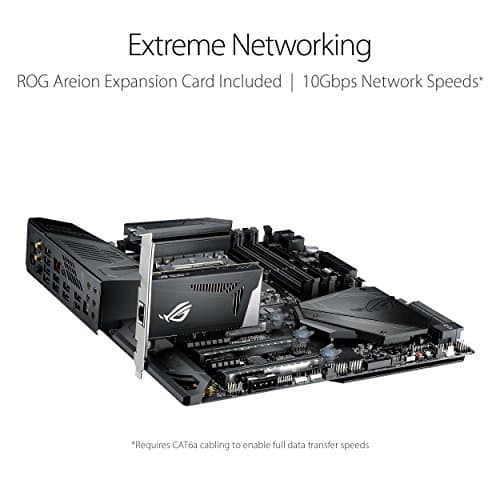

Built for High Performance Networking featuring onboard Gigabit LAN, WiGig 802.11AD WiFi for future wireless VR, and includes the ROG Areion expansion card for connections up to 10Gbps

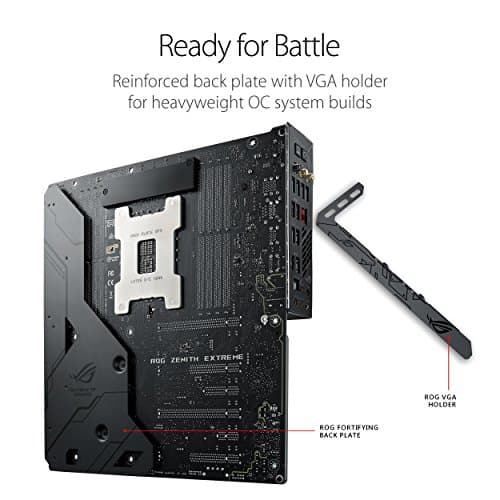

Four patent-pending SafeSlots feature an injection molding process that integrates metal framing for a stronger, firmly anchored PCIe slot built for heavyweight GPUs. Supports NVIDIA 4-Way SLI Technology. Supports AMD 4-Way CrossFireX Technology

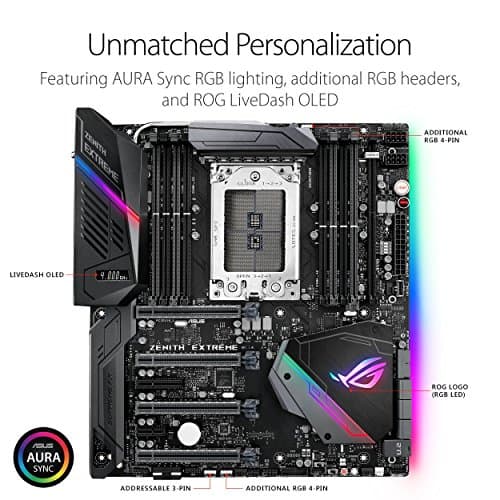

Unmatched Personalization with LiveDash OLED and ASUS exclusive AURA Sync RGB lighting throughout the Zenith Extreme, including additional RGB headers (+1 addressable)

Industry-leading 8-channel HD audio with the ROG exclusive SupremeFX S1220 driven by Japanese capacitors and featuring the ES9018Q2C High Definition DAC. Operating System- Windows 10 64-bit. Supports dual band frequency 2.4/5 GHz+ 60GHz. Supports MU-MIMO

Additional Features

Powered by AMD Ryzen Threadripper TR4 processors to maximize connectivity and speed with support for up to 128GB of DDR4 memory, three (3) NVMe M.2 drives, front side U.2 and front panel USB 3.1 Gen2 port

5-Way Optimization featuring Auto-Tuning and FanXpert 4 provides automatic overclocking profiles for maximum OC performance while AIO and watercooling headers deliver dynamic system cooling

Built for High Performance Networking featuring onboard Gigabit LAN, WiGig 802.11AD WiFi for future wireless VR, and includes the ROG Areion expansion card for connections up to 10Gbps

Four patent-pending SafeSlots feature an injection molding process that integrates metal framing for a stronger, firmly anchored PCIe slot built for heavyweight GPUs. Supports NVIDIA 4-Way SLI Technology. Supports AMD 4-Way CrossFireX Technology

Unmatched Personalization with LiveDash OLED and ASUS exclusive AURA Sync RGB lighting throughout the Zenith Extreme, including additional RGB headers (+1 addressable)

Industry-leading 8-channel HD audio with the ROG exclusive SupremeFX S1220 driven by Japanese capacitors and featuring the ES9018Q2C High Definition DAC. Operating System- Windows 10 64-bit. Supports dual band frequency 2.4/5 GHz+ 60GHz. Supports MU-MIMO

Product Information
Manufacturer
ASUS
Series
ROG Zenith
Variant
Extreme
Release Year
2017
Manufacturer Color
Unknown
UPC
889349799451
EAN
0889349799451
Part Numbers
ROG ZENITH EXTREME
BuildCores ID
cxpcov2x8
General Specifications
Socket
TR4
Form Factor
ATX
Chipset
AMD X399
Max Memory
128 GB
Memory Type
DDR4
Memory Slots
8
Colors
None
PCIe Slots
4 x PCIe 3.0 x16 1 x PCIe 2.0 x4 1 x PCIe 2.0 x1
M.2 Slots
M 2242/2260/2280/22110 PCIe 3.0 x4 SATA M 2242/2260/2280 PCIe 3.0 x4 SATA
SATA 6Gb/s
6
SATA 3Gb/s
0
U.2 Ports
1
Onboard Ethernet
ROG AREION 10 Gb/s Intel i211AT 1 Gb/s
WiFi
Unknown
USB 2.0
2
USB 3.2 Gen 1
2
USB 3.2 Gen 2
1
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
Unknown
Case Fan Headers
Unknown
Pump Headers
Unknown
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
Unknown
RGB 12V Headers
Unknown
Power Button Header
Unknown
Reset Button Header
Unknown
Power LED Header
Unknown
HDD LED Header
Unknown
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
Unknown
CPU Power
None
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
Yes
Audio Chipset
ROG SupremeFX High Definition Audio CODEC S1220
Audio Channels
7.1
Back Panel Ports
1 x LAN (RJ45) 1 x USB 3.1 Gen 2 Type-A 1 x USB 3.1 Gen 2 Type-C 5 x Audio Jacks 8 x USB 3.1 Gen 1 Type-A
