General Specifications
Socket
AM5
Form Factor
Micro ATX
Chipset
AMD B850
Weight
Unknown
Max Memory
256 GB
Memory Type
DDR5
Memory Slots
4
Colors
BLACK
Lighting
ARGB
PCIe Slots
1 x PCIe 5.0 x16
1 x PCIe 4.0 x4
M.2 Slots
M 2260-2280 PCIe 5.0 x4
M 2280 PCIe 4.0 x2
M 2260-2280 PCIe 5.0 x4
SATA 6Gb/s
4
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
5 Gb/s
WiFi
Unknown
USB 2.0
2
USB 3.2 Gen 1
1
USB 3.2 Gen 2
1
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
0
CPU Fan Headers
1
Case Fan Headers
4
Pump Headers
1
CPU Optional Fan Headers
0
ARGB 5V Headers
3
RGB 12V Headers
1
Power Button Header
No
Reset Button Header
No
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
24-pin
CPU Power
8-pin
8-pin
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
Yes
Audio Chipset
Realtek
Audio Channels
7.1

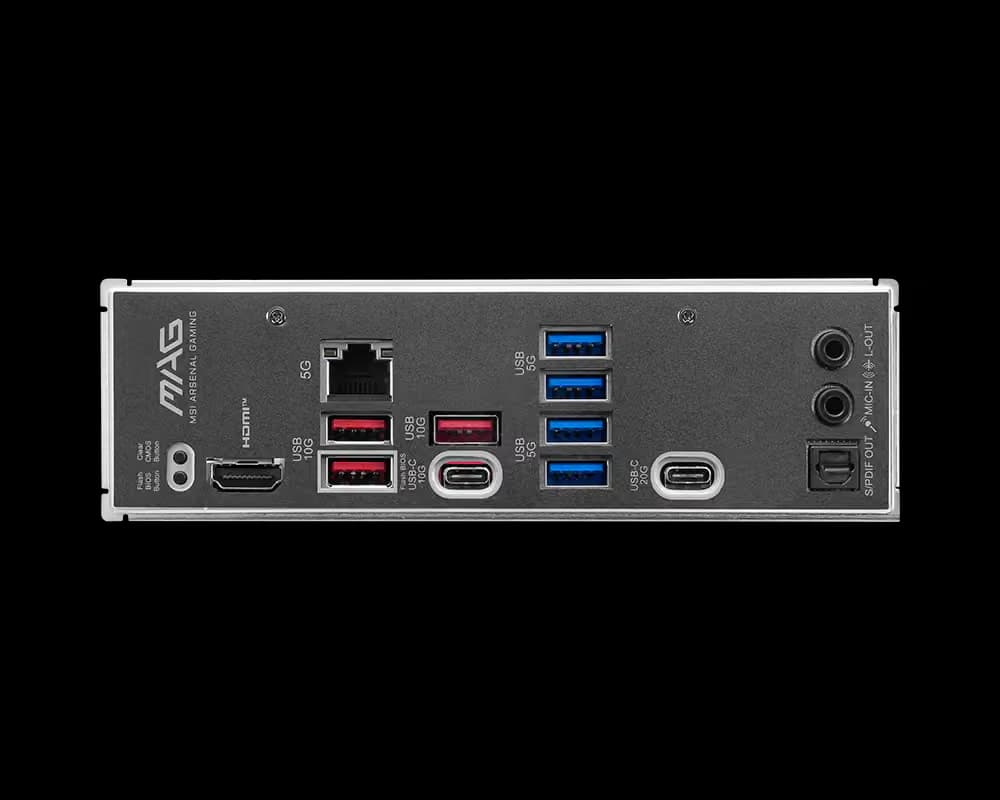

Back Panel Ports
1 x Clear CMOS button
1 x Flash BIOS button
1 x HDMI 2.1
1 x 5Gbps LAN (RJ45) port
3 x USB 10Gbps Type-A
1 x USB 10Gbps Type-C
4 x USB 5Gbps Type-A
1 x USB 20Gbps Type-C
2 x Audio jacks
1 x Optical S/PDIF Out
Display Outputs
Unknown
Product Information
Manufacturer
MSI
Series
MAG
Variant
B850M MORTAR
Release Year
Unknown
Manufacturer Color
Black
UPC
None
EAN
None
Part Numbers
None
BuildCores ID
d0uws9xm8
Motherboard
MSI B850M MAG MORTAR AM5 DDR5 Micro ATX
SocketAM5
Form FactorMicro ATX
ChipsetAMD B850
