General Specifications
Socket
LGA 1700
Form Factor
ATX
Chipset
Intel Z790
Weight
Unknown
Max Memory
256 GB
Memory Type
DDR5
Memory Slots
4
Colors
BLACK
GREY
Lighting
Unknown
PCIe Slots
1 x PCIe 5.0 x16
1 x PCIe 3.0 x4
3 x PCIe 3.0 x1
M.2 Slots
M 2242/2260/2280/22110 PCIe 4.0 x4
M 2242/2260/2280 PCIe 4.0 x4 / SATA
SATA 6Gb/s
4
SATA 3Gb/s
Unknown
U.2 Ports
Unknown
Onboard Ethernet
Realtek RTL8125BG 2.5 Gb/s
WiFi
Unknown
USB 2.0
2
USB 3.2 Gen 1
2
USB 3.2 Gen 2
Unknown
USB 3.2 Gen 2x2
Unknown
USB 4.0
Unknown
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
4
Pump Headers
1
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
Unknown
RGB 12V Headers
1
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
24-pin
CPU Power
8-pin
8-pin
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
No
Clear CMOS Button
No
Audio Chipset
Realtek ALC897
Audio Channels
7.1
Back Panel Ports
1 x DisplayPort
1 x HDMI port
2 x USB 2.0 Type-A ports
4 x USB 3.2 Gen 1 5Gbps Type-A ports
1 x USB 3.2 Gen 2x2 20Gbps Type-C port
1 x 2.5Gbps LAN (RJ45) port
5 x Audio jacks
1 x Optical S/PDIF out connector
Display Outputs
Unknown
Product Information
Manufacturer
MSI
Series
PRO
Variant
Z790-S01
Release Year
2022
Manufacturer Color
Black
UPC
None
EAN
None
Part Numbers
Z790-S01
BuildCores ID
d125pjy4r

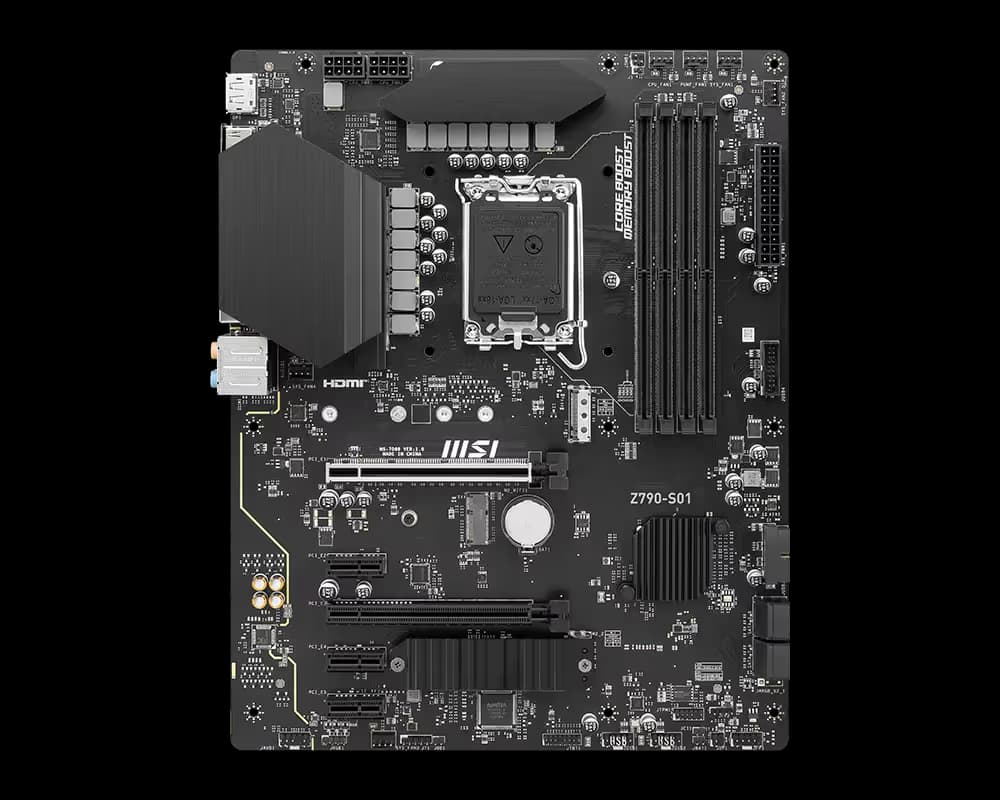

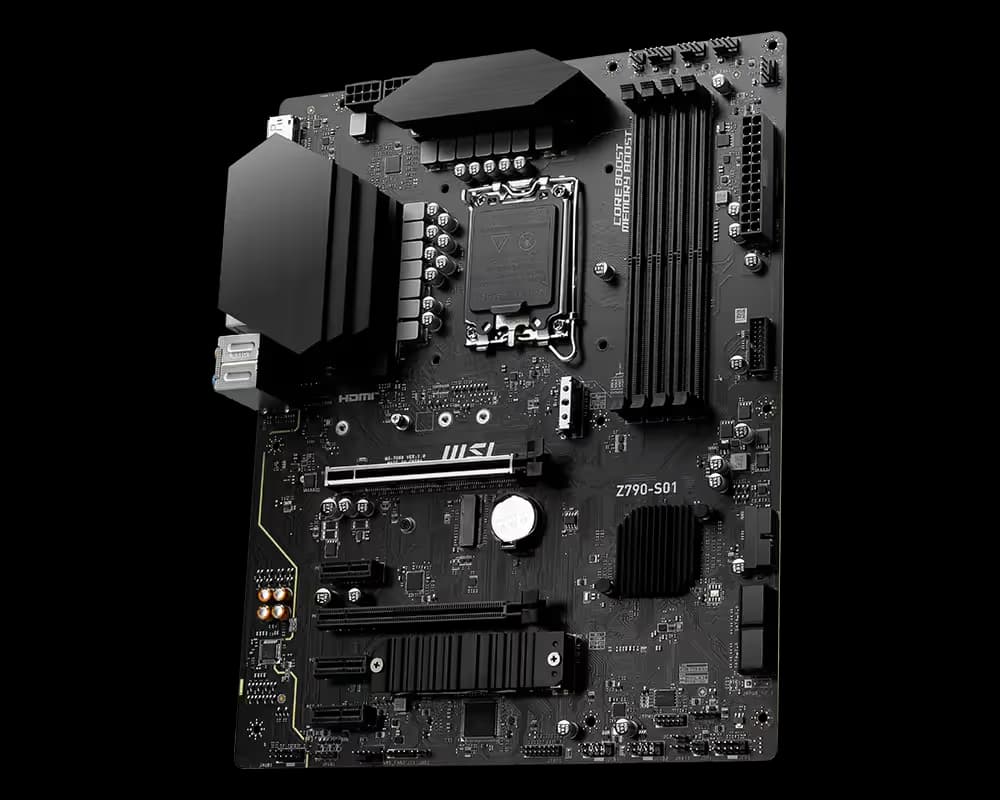

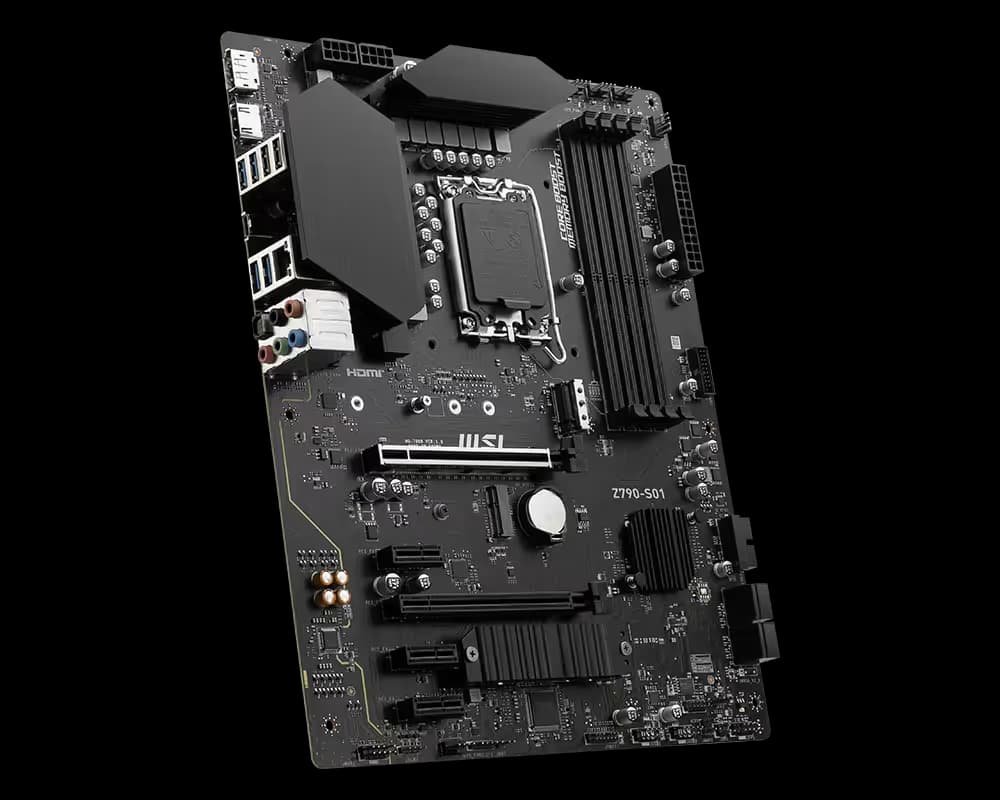

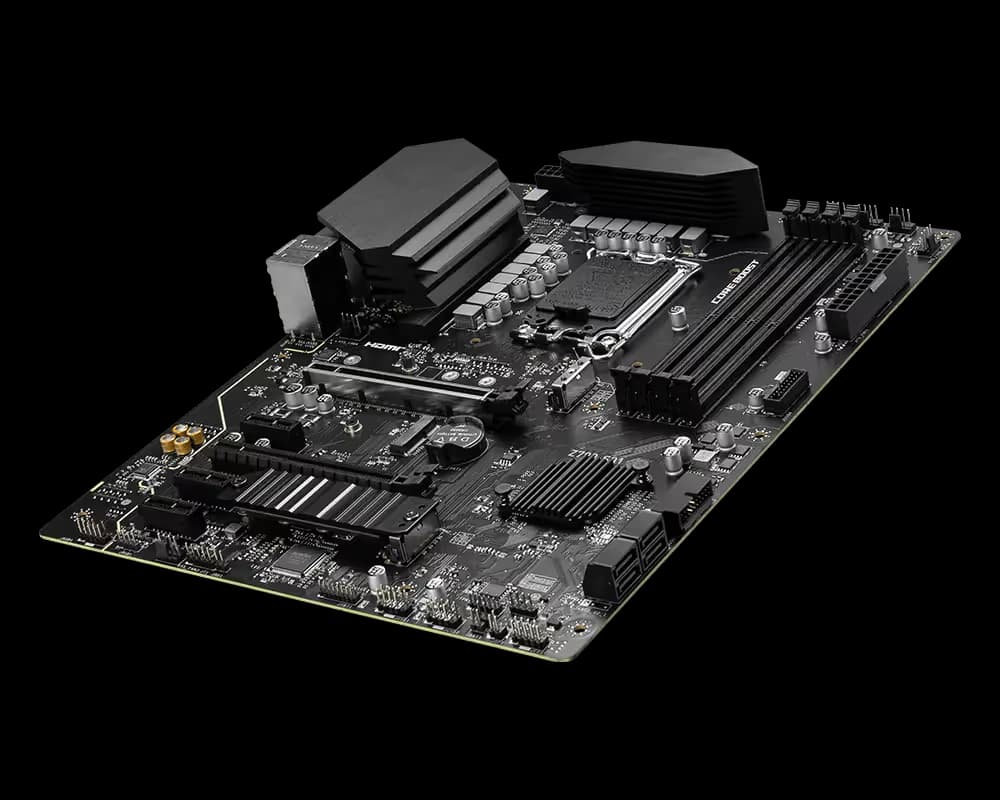

Motherboard
