General Specifications
Socket
LGA 1700
Form Factor
ATX
Chipset
Intel Z790
Max Memory
96 GB
Memory Type
DDR5
Memory Slots
2
Colors
BLACK
GREY
Lighting
RGB
ARGB
PCIe Slots
2 x PCIe 5.0 x16
2 x PCIe 4.0 x4
M.2 Slots
M 2242/2260/2280 PCIe 5.0 x4
M 2242/2260/2280 PCIe 4.0 x4
M 2242/2260/2280 PCIe 4.0 x4 & SATA
M 2242/2260/2280/22110 PCIe 4.0 x4
M 2242/2260/2280/22110 PCIe 4.0 x4
SATA 6Gb/s
4
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Intel 2.5 Gb/s
WiFi
Wi-Fi 7
USB 2.0
2
USB 3.2 Gen 1
2
USB 3.2 Gen 2
0
USB 3.2 Gen 2x2
1
USB 4.0
0
USB 4 80Gbps
0
CPU Fan Headers
1
Case Fan Headers
4
Pump Headers
2
CPU Optional Fan Headers
1
ARGB 5V Headers
3
RGB 12V Headers
1
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
1
Thunderbolt Headers
1
COM Port Headers
0
Main Power
24-pin
CPU Power
8-pin
8-pin
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
Yes
Audio Chipset
Realtek ALC4080
Audio Channels
7.1

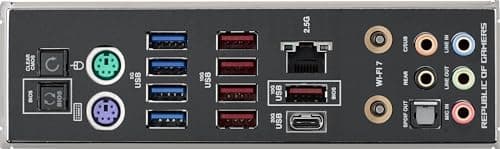

Back Panel Ports
1 x USB 20Gbps port (1 x USB Type-C®)
5 x USB 10Gbps ports (5 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port
Product Information
Manufacturer
ASUS
Series
ROG MAXIMUS
Variant
Z790 APEX ENCORE
Release Year
2023
Manufacturer Color
Black
UPC
197105361119
EAN
0197105361119
Part Numbers
ROG MAXIMUS Z790 APEX ENCORE
90MB1FX0-M0AAY0
90MB1FX0-M0EAY0
BuildCores ID
d147ljrjv
Motherboard
3D

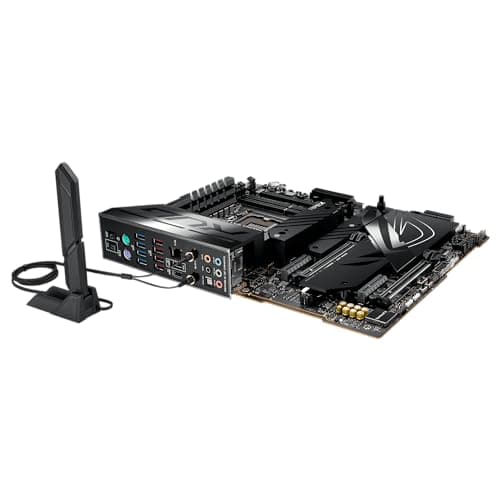

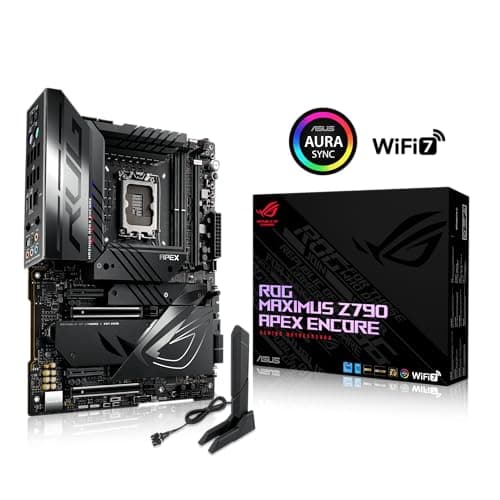

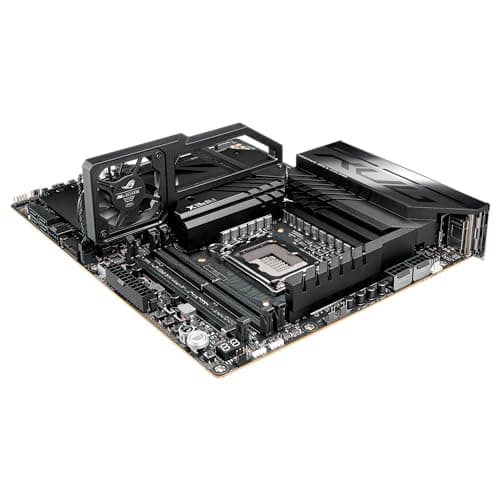

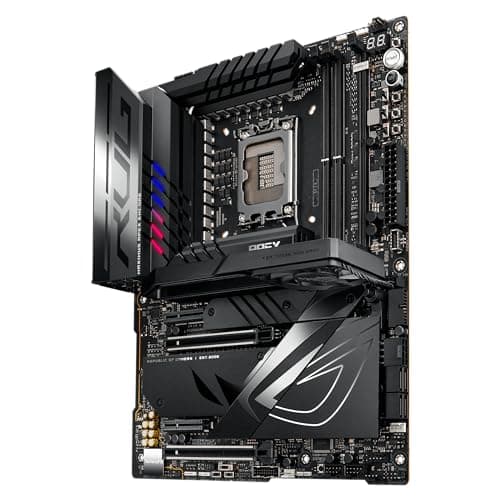

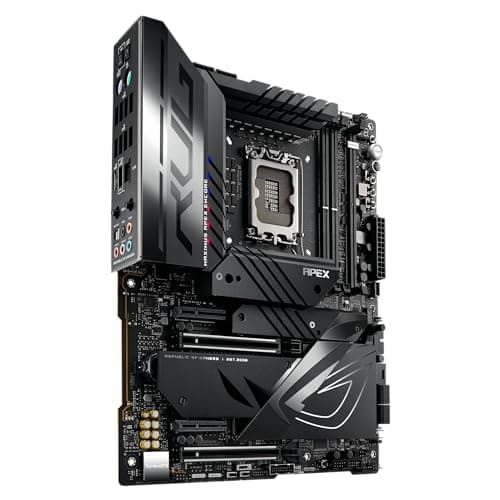

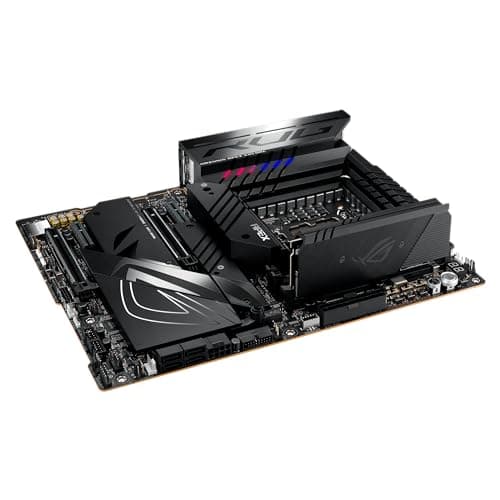

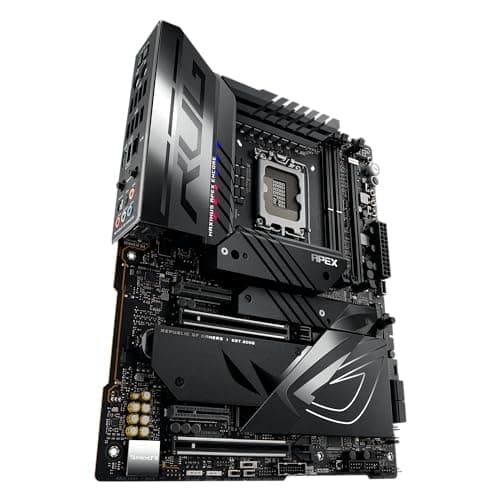

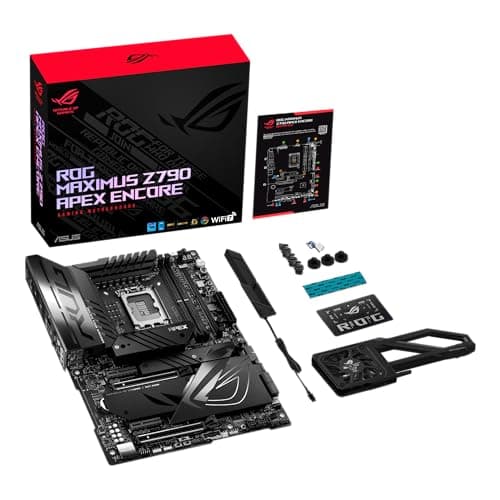

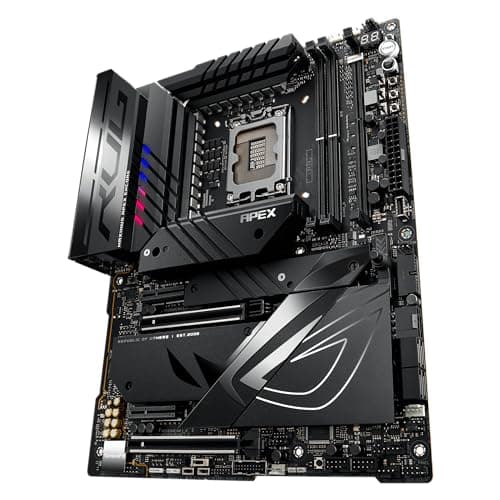

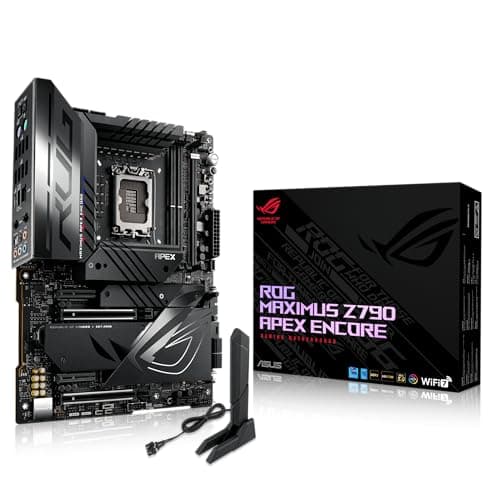

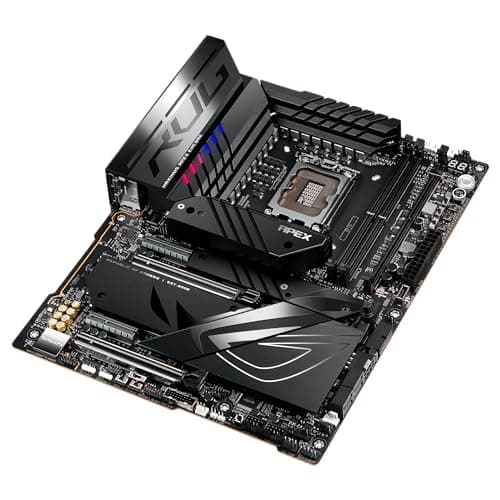

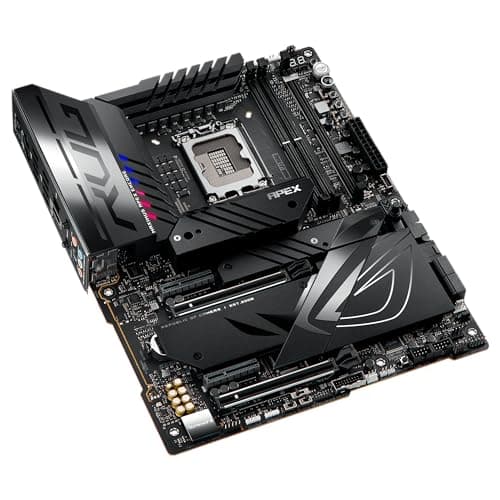

ASUS Z790 ROG MAXIMUS APEX ENCORE LGA1700 DDR5 ATX
SocketLGA 1700
Form FactorATX
ChipsetIntel Z790
  | — | N/A |
MERCHANT | SHIPPING | PROMO | AVAILABILITY | TOTAL |
| — | — | Unavailable | N/A via Amazon |
MERCHANT | SHIPPING | PROMO | AVAILABILITY | TOTAL |
| — | — | Unavailable | N/A via Amazon |
* BuildCores may receive compensation for affiliate sales through these linksReport a pricing issue
Price History
Loading price history...
* Amazon pricing is not included in price history graphs.
