LoadingProduct Information
Manufacturer
ASUS
Series
X670
Variant
P-CSM AM5 DDR5
Manufacturer Color
Unknown
UPC
None
EAN
None
Part Numbers
PRIME X670-P-CSM
BuildCores ID
dgxgmzxni
General Specifications
Socket
AM5
Form Factor
ATX
Chipset
AMD X670
Max Memory
192 GB
Memory Type
DDR5
Memory Slots
4
Colors
GREY
BLACK
PCIe Slots
3 x PCIe 4.0 x16
1 x PCIe 3.0 x1
M.2 Slots
M 2242/2260/2280 PCIe 5.0 x4
M 2242/2260/2280/22110 PCIe 4.0 x4
M 2242/2260/2280 PCIe 4.0 x4
SATA 6Gb/s
6
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Realtek 2.5 Gb/s
WiFi
V-M.2 slot only (Key E
PCIe) Wi-Fi module is sold separately.
USB 2.0
2
USB 3.2 Gen 1
2
USB 3.2 Gen 2
1
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
3
Pump Headers
1
CPU Optional Fan Headers
1
ARGB 5V Headers
3
RGB 12V Headers
2
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
Unknown
Thunderbolt Headers
1
COM Port Headers
1
Main Power
24-pin
CPU Power
8-pin
4-pin
ECC Support
Yes
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
Yes
Audio Chipset
Realtek
Audio Channels
7.1
Back Panel Ports
1 x 2.5 Gb/s (Realtek)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
3 x USB 3.2 Gen 2 ports (3 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x V-M.2 slot (Key E)
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
1 x PS/2 Keyboard/Mouse combo port
Motherboard
3D

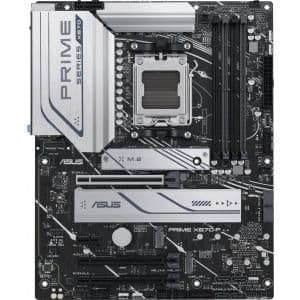

Asus X670 PRIME X670-P-CSM AM5 DDR5 ATX
