General Specifications
Socket
AM5
Form Factor
Micro ATX
Chipset
AMD B850
Max Memory
256 GB
Memory Type
DDR5
Memory Slots
4
Colors
BLACK
Lighting
None
PCIe Slots
1 x PCIe 5.0 x16
M.2 Slots
M 2260/ 2280 PCIe 5.0 x4
M 2260/ 2280 PCIe 5.0 x4
M 2260/ 2280 PCIe 4.0 x4
M 2280 PCIe 4.0 x4
SATA 6Gb/s
2
SATA 3Gb/s
Unknown
U.2 Ports
Unknown
Onboard Ethernet
Realtek 5 Gb/s
WiFi
Wi-Fi 7 Bluetooth 5.4
USB 2.0
2
USB 3.2 Gen 1
1
USB 3.2 Gen 2
Unknown
USB 3.2 Gen 2x2
1
USB 4.0
Unknown
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
4
Pump Headers
1
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
3
RGB 12V Headers
0
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
0
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
24-pin
CPU Power
8-pin
8-pin
ECC Support
Yes
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
Yes
Audio Chipset
Realtek ALC4080
Audio Channels
7.1

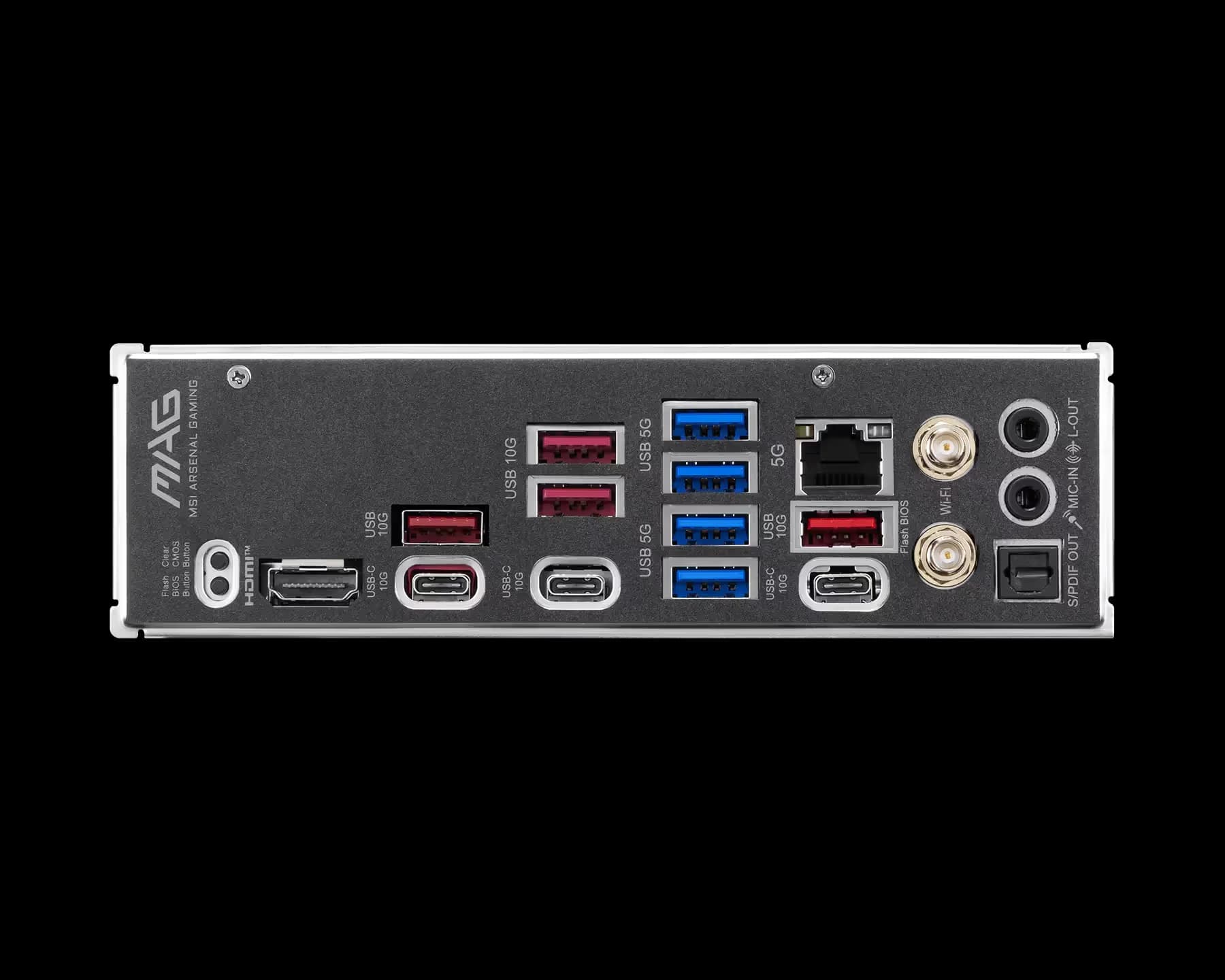

Back Panel Ports
1x Clear CMOS button
1x Flash BIOS button
1x HDMI™ port
3x USB 10Gbps Type-A ports
2x USB 10Gbps Type-C ports
4x USB 5Gbps Type-A ports
1x USB 10Gbps Type-A port
1x USB 10Gbps Type-C port
1x 5G LAN (RJ45) jack
2x Wi-Fi Antenna connectors
2x audio jacks
1x Optical S/PDIF Out connector
Product Information
Manufacturer
MSI
Series
MAG
Variant
B850M MORTAR MAX WIFI
Release Year
2025
Manufacturer Color
Black
UPC
None
EAN
None
Part Numbers
None
BuildCores ID
e0c6lw3cn
Motherboard
MSI MAG B850M MORTAR MAX WIFI
SocketAM5
Form FactorMicro ATX
ChipsetAMD B850
