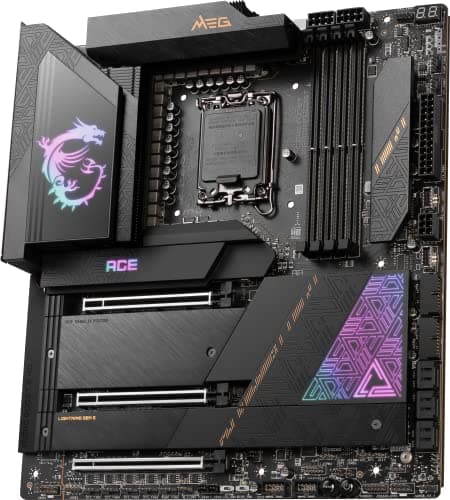

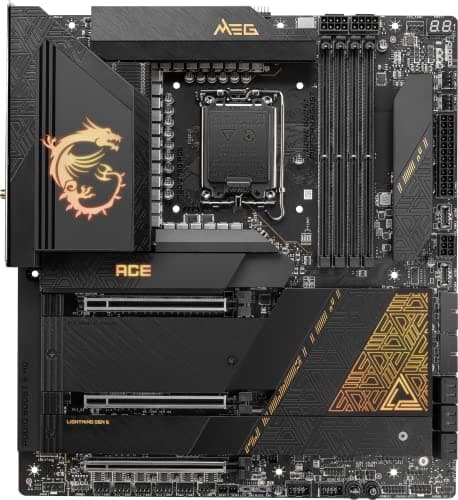

MSI Z790 MEG ACE WIFI DDR5 EATX main image

General Specifications

Socket

LGA 1700

Form Factor

EATX

Chipset

Intel Z790

Max Memory

256 GB

Memory Type

DDR5

Memory Slots

Colors

GOLD BLACK

Lighting

ARGB Fixed Color Display

PCIe Slots

1 x PCIe 5.0 x16 1 x PCIe 5.0 x8 1 x PCIe 4.0 x4

M.2 Slots

M 22110/2280/2260 PCIe 4.0 x4 M 2280/2260 PCIe 4.0 x4 M 2280/2260 PCIe 4.0 x4 / SATA M 2280 PCIe 5.0 x4 M 22110/2280/2260 PCIe 4.0 x4 / SATA

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Intel 2.5 Gb/s

WiFi

Wifi 6E

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Thunderbolt Headers

COM Port Headers

Main Power

24-pin

CPU Power

8-pin 8-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Yes

Audio Chipset

Realtek ALC4082

Audio Channels

7.1

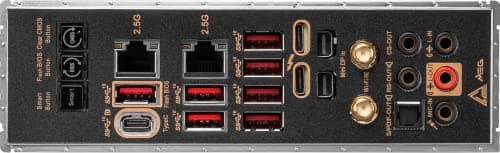

Back Panel Ports

Clear CMOS Button Flash BIOS Button 2.5G LAN 2.5G LAN Thunderbolt 4 40Gbps (Type-C) Wi-Fi / Bluetooth Audio Connectors Smart Button USB 3.2 Gen 2 10Gbps (Type-C Display port) USB 3.2 Gen 2 10Gbps (Type-A) Mini DisplayPort Input (for Thunderbolt passthrough) Optical S/PDIF-Out

Product Information

Manufacturer

MSI

Series

MEG

Variant

Z790 ACE WIFI

Release Year

2022

Manufacturer Color

Black

UPC

824142305744

EAN

0824142305744

Part Numbers

MEG Z790 ACE 7D86-001R 911-7D86-001 Z790ACE

BuildCores ID

e2d90uw73

See an issue?Report an issue on OpenDB

Motherboard

MSI Z790 MEG ACE WIFI DDR5 EATX

SocketLGA 1700

Form FactorEATX

ChipsetIntel Z790
