M 2242/2260/2280 PCIe 5.0 x4
M 2242/2260/2280 PCIe 5.0 x4
SATA 6Gb/s
2
SATA 3Gb/s
Unknown
U.2 Ports
Unknown
Onboard Ethernet
Intel 2.5 Gb Ethernet 2.5 Gb/s
WiFi
Wi-Fi 7 Bluetooth 5.4
USB 2.0
1
USB 3.2 Gen 1
1
USB 3.2 Gen 2
1
USB 3.2 Gen 2x2
Unknown
USB 4.0
Unknown
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
1
Pump Headers
1
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
2
RGB 12V Headers
Unknown
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
1
Thunderbolt Headers
Unknown
COM Port Headers
1
Main Power
24-pin
CPU Power
8-pin
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
Yes
Audio Chipset
ALC 4080
Audio Channels
7.1

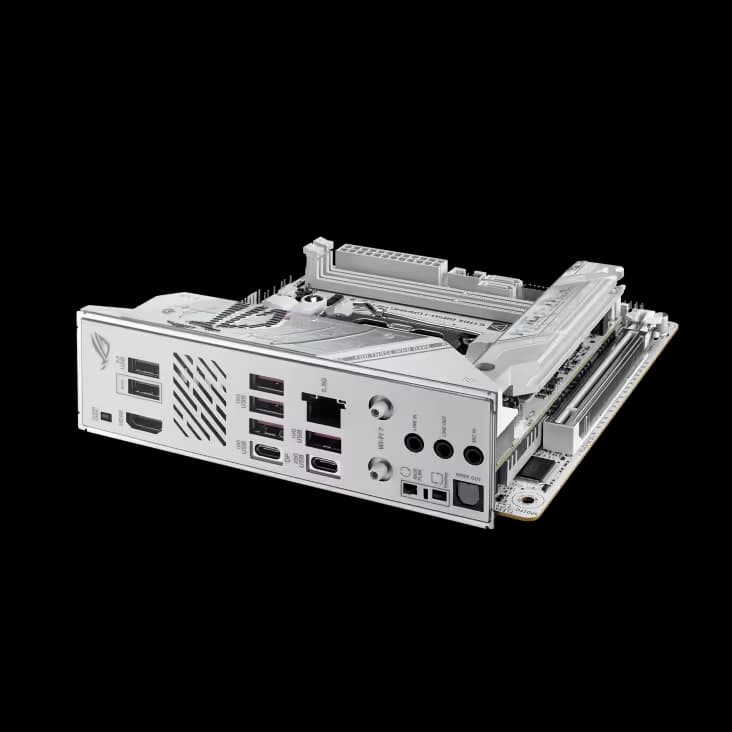

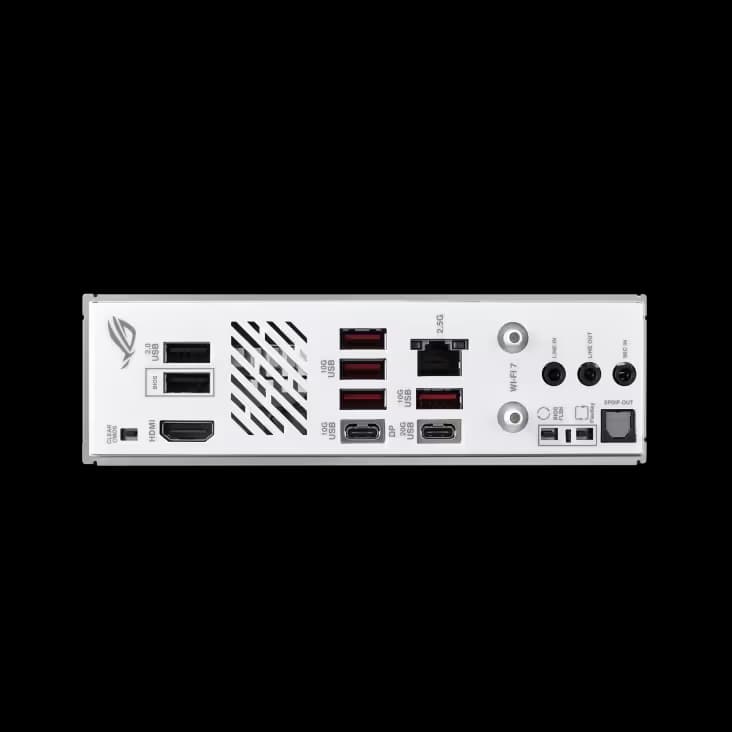

Back Panel Ports
1 x USB 20Gbps port
5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®= with DP Alt mode)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI™= port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet port
3 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
1 x FlexKey button
