General Specifications
Socket
LGA 1700
Form Factor
ATX
Chipset
Intel Z790
Weight
Unknown
Max Memory
256 GB
Memory Type
DDR5
Memory Slots
4
Colors
BLACK
GREY
Lighting
Unknown
PCIe Slots
1 x PCIe 5.0 x16
1 x PCIe 4.0 x4
2 x PCIe 3.0 x1
M.2 Slots
M 22110/2280/2260/2242 PCIe 4.0 x4
M 2280/2260/2242 PCIe 4.0 x4
M 2280/2260/2242 PCIe 4.0 x4 / SATA
M 2280/2260/2242 PCIe 4.0 x4 / SATA
SATA 6Gb/s
6
SATA 3Gb/s
Unknown
U.2 Ports
Unknown
Onboard Ethernet
Intel 2.5Gbps LAN 2.5 Gb/s
WiFi
Unknown
USB 2.0
2
USB 3.2 Gen 1
2
USB 3.2 Gen 2
1
USB 3.2 Gen 2x2
Unknown
USB 4.0
Unknown
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
6
Pump Headers
1
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
2
RGB 12V Headers
2
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
24-pin
CPU Power
8-pin
8-pin
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
No
Audio Chipset
Realtek ALC897
Audio Channels
7.1

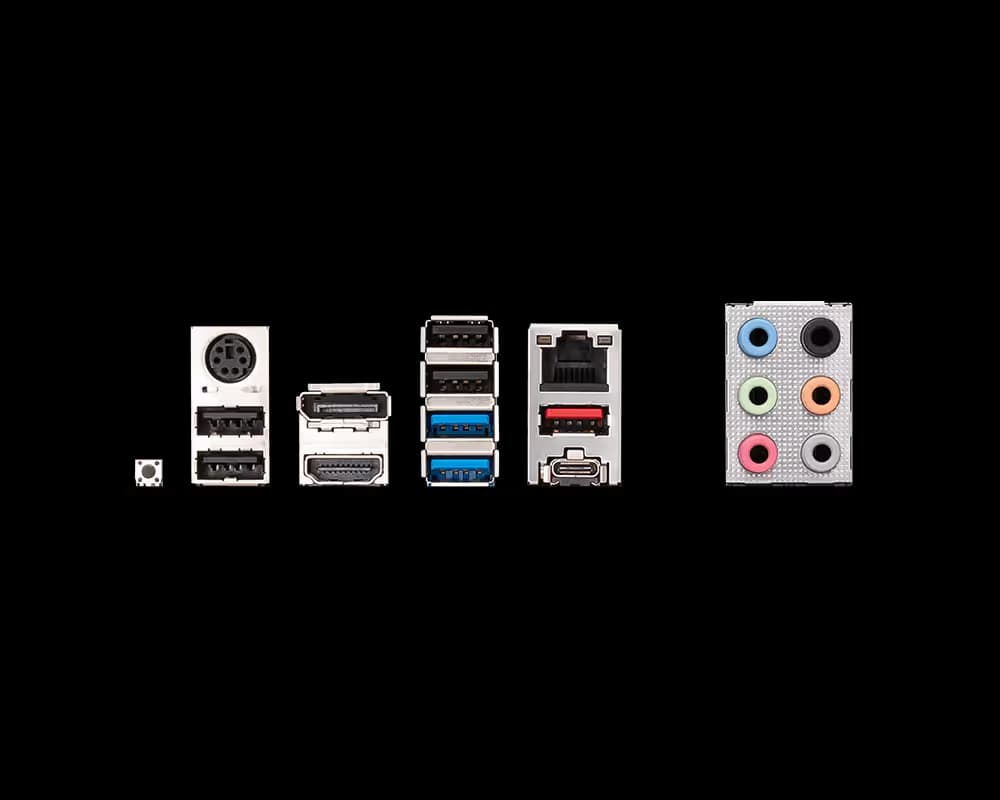

Back Panel Ports
1 x Keyboard / Mouse combo port
1 x DisplayPort
1 x HDMI
4 x USB 2.0 ports
2 x USB 3.2 Gen 1 5Gbps ports (Type-A)
1 x USB 3.2 Gen 2 10Gbps port (Type-A)
1 x USB 3.2 Gen 2x2 20Gbps port (Type-C)
1 x 2.5G LAN port (RJ45)
1 x Flash BIOS Button
6 x Audio Connectors
Display Outputs
Unknown
Product Information
Manufacturer
MSI
Series
PRO
Variant
Z790-P II
Release Year
2024
Manufacturer Color
Black
UPC
None
EAN
None
Part Numbers
PRO-Z790-P-II
BuildCores ID
el8kaq8tv
