General Specifications
Socket
LGA 1851
Form Factor
ATX
Chipset
Intel Z890
Weight
Unknown
Max Memory
256 GB
Memory Type
DDR5
Memory Slots
4
Colors
GREY
BLACK
Lighting
None
PCIe Slots
1 x PCIe 5.0 x16
2 x PCIe 4.0 x4
1 x PCIe 4.0 x1
M.2 Slots
M 2260/ 2280 PCIe 5.0 x4
M 2260/ 2280/ 22110 PCIe 4.0 x4
M 2242/ 2260/ 2280 PCIe 4.0 x4
M 2242/ 2260/ 2280 PCIe 4.0 x4
SATA 6Gb/s
4
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Realtek RTL8126 5 Gb/s
WiFi
Wi-Fi 7 Bluetooth 5.4
USB 2.0
2
USB 3.2 Gen 1
2
USB 3.2 Gen 2
0
USB 3.2 Gen 2x2
1
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
5
Pump Headers
1
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
3
RGB 12V Headers
1
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
Unknown
Thunderbolt Headers
1
COM Port Headers
Unknown
Main Power
24-pin
CPU Power
8-pin
8-pin
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
No
Audio Chipset
Realtek
Audio Channels
7.1

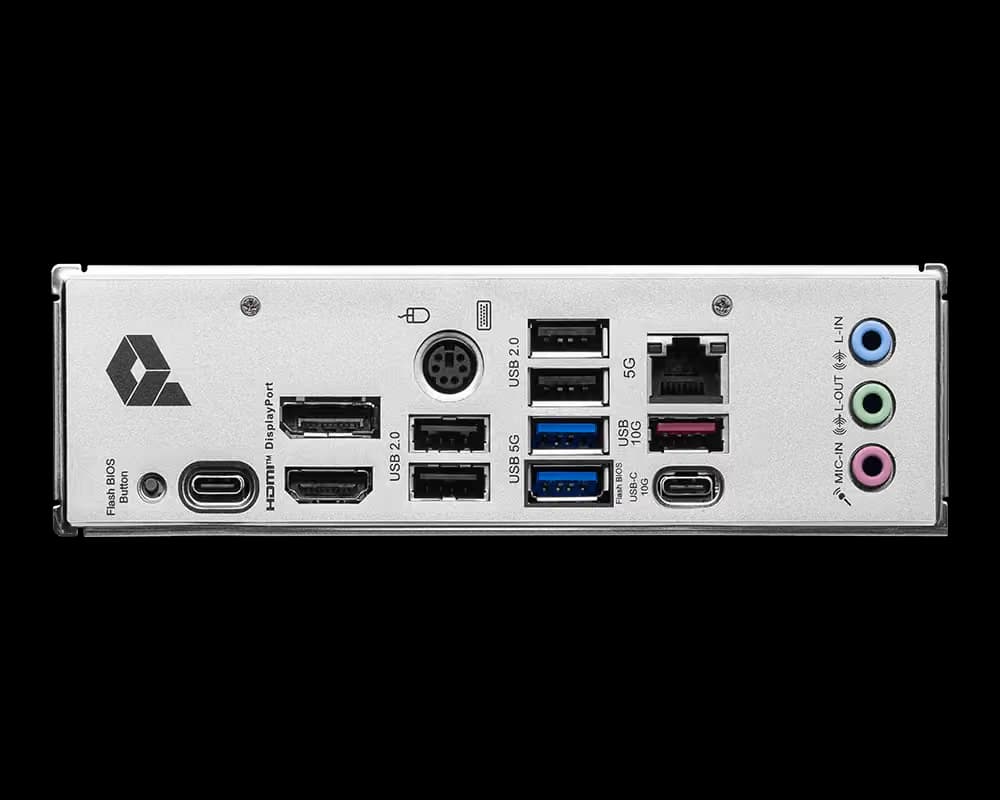

Back Panel Ports
1x Flash BIOS button
1x Thunderbolt™ 4 USB-C port
1x DisplayPort
1x HDMI™ port
1x PS/2 port
1x 5Gbps LAN (RJ45) port
4x USB 2.0 Type-A ports
2x USB 5Gbps Type-A ports
1x USB 10Gbps Type-A port
1x USB 10Gbps Type-C port
2x Wi-Fi Antenna connectors
3x Audio jacks
Display Outputs
Unknown
Product Information
Manufacturer
MSI
Series
PRO
Variant
Z890 PRO-P
Release Year
2024
Manufacturer Color
Black / Silver
UPC
None
EAN
None
Part Numbers
PRO Z890-P
BuildCores ID
elndysta9

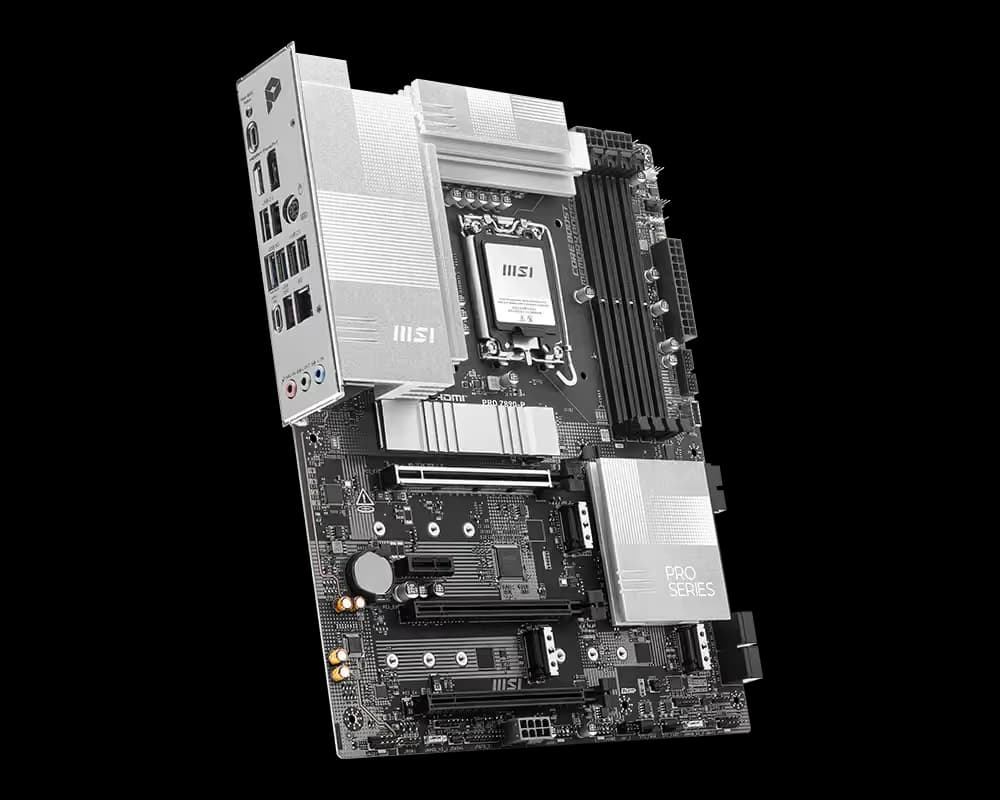

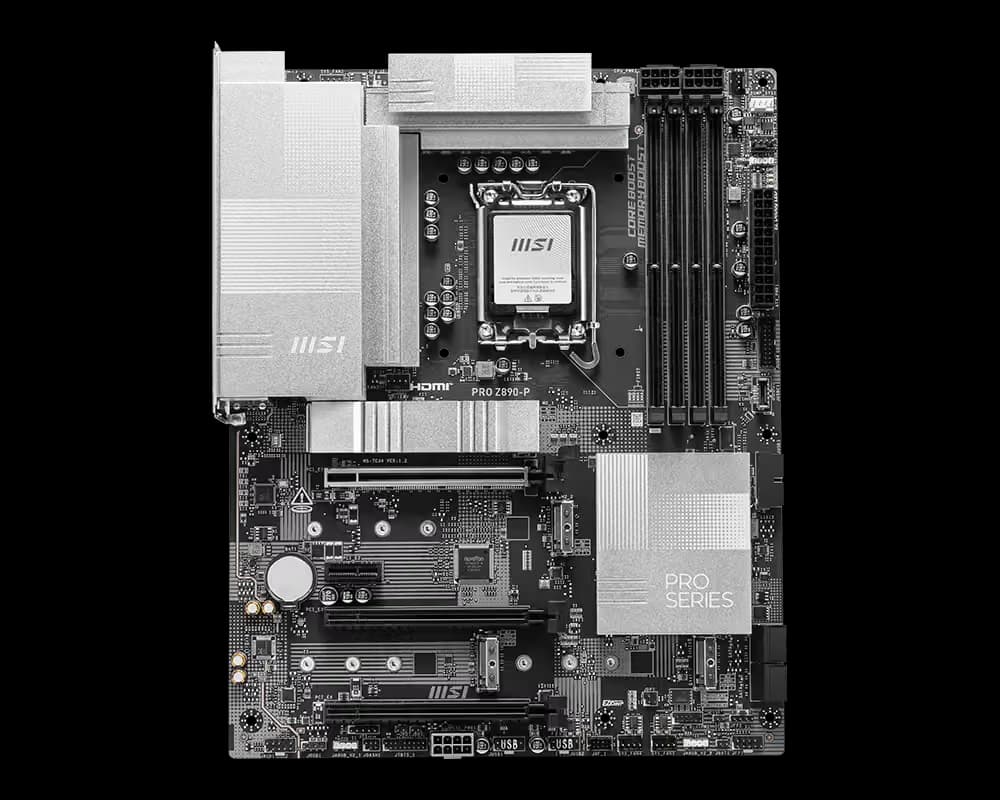

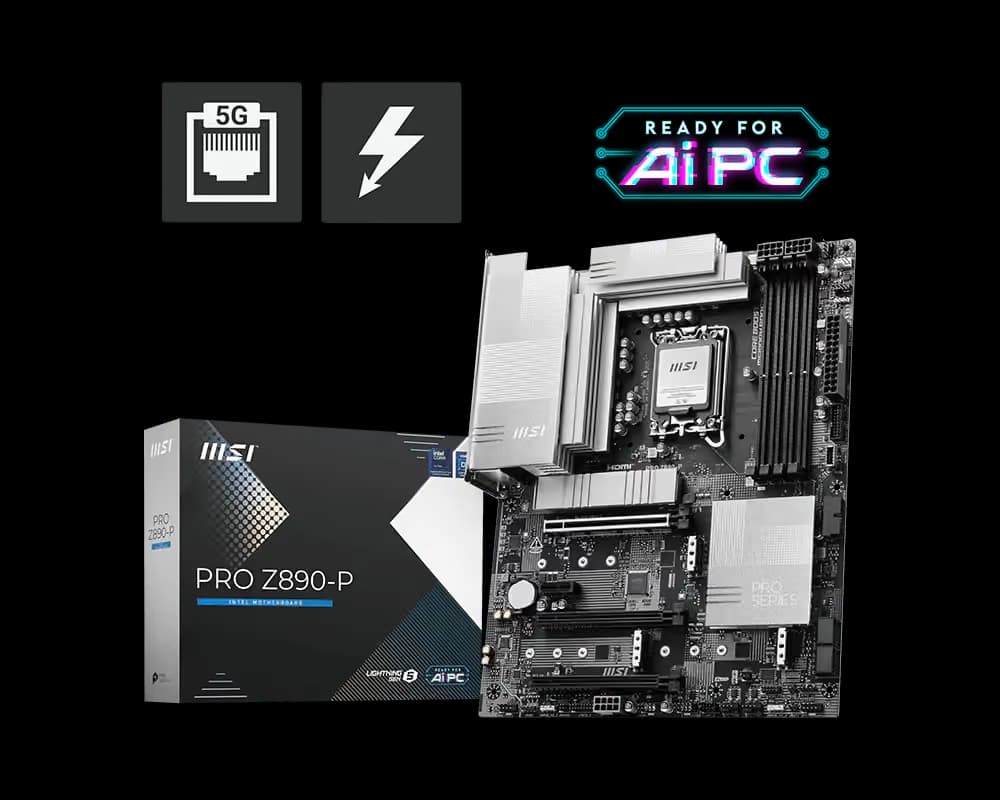

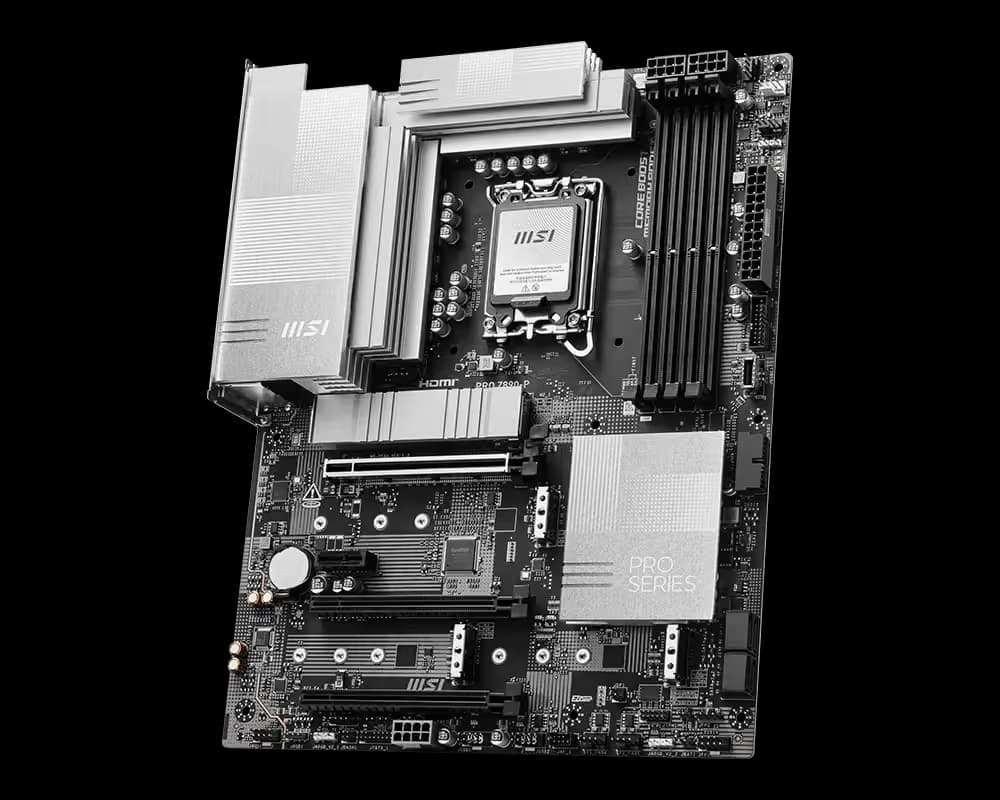

Motherboard
MSI Z890 PRO-P DDR5 ATX
SocketLGA 1851
Form FactorATX
ChipsetIntel Z890
