Product Information

Manufacturer

MSI

Series

Z490

Variant

MEG ACE

Release Year

Unknown

Manufacturer Color

Unknown

UPC

824142199053

EAN

0824142199053

Part Numbers

MEG Z490 ACE 7C71-008R

BuildCores ID

ese6o9ikk

General Specifications

Socket

LGA 1200

Form Factor

ATX

Chipset

Intel Z490

Max Memory

128 GB

Memory Type

DDR4

Memory Slots

Colors

BLACK GOLD

PCIe Slots

31 x PCIe 3.0 x16 1 x PCIe 3.0 x8 1 x PCIe 3.0 x4 2 x PCIe 3.0 x1

M.2 Slots

M 2242/ 2260/ 2280/ 22110 PCIe 3.0 x4 M 2242/ 2260/ 2280/ PCIe 3.0 x4 M 2242/ 2260/ 2280/ PCIe 3.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Intel I219-V 1 Gb/s

WiFi

Wifi 6 Bluetooth 5.1

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Unknown

Thunderbolt Headers

COM Port Headers

Unknown

Main Power

24-pin

CPU Power

8-pin 8-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Yes

Audio Chipset

Realtek ALC1220 Codec + ESS SABRE9018Q2C combo DAC

Audio Channels

7.1

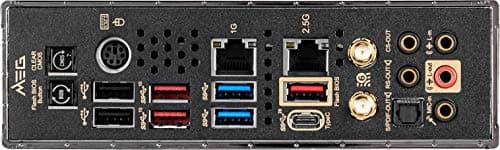

Back Panel Ports

1 x Clear CMOS Button 1 x Flash BIOS Button 1 x PS/2 keyboard/mouse combo port 2 x USB 2.0 ports 2 x USB 3.2 Gen 1 5Gbps Type-A ports 3 x USB 3.2 Gen 2 10Gbps Type-A ports 1 x USB 3.2 Gen 2x2 20Gbps Type-C port 1 x 2.5G LAN (Realtek 8125B) 1 x 1G LAN (Intel I219V) 1 x Wi-Fi Antenna connector 5 x OFC audio jacks 1 x Optical S/PDIF OUT connector

See an issue?Report an issue on OpenDB
