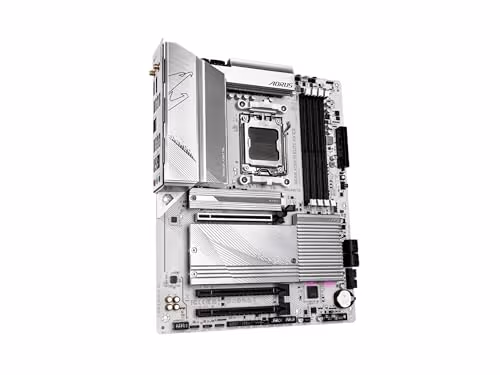

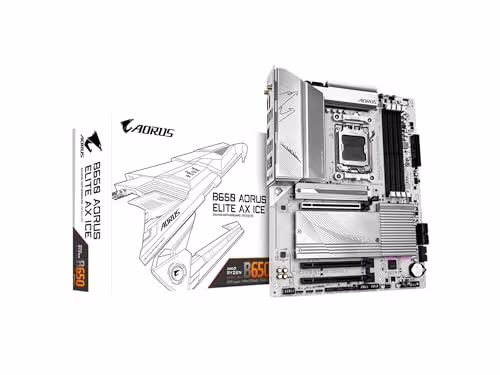

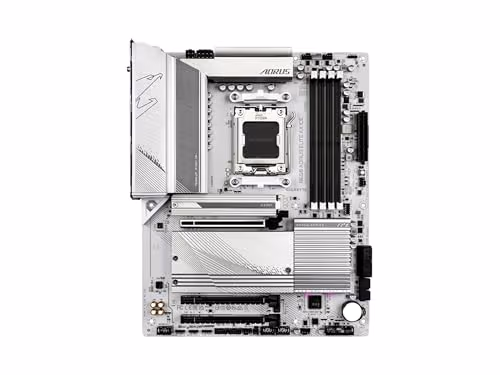

Gigabyte B650 AORUS ELITE AX ICE DDR5 ATX image

Gigabyte B650 AORUS ELITE AX ICE DDR5 ATX main image

General Specifications

Socket

AM5

Form Factor

ATX

Chipset

AMD B650

Max Memory

256 GB

Memory Type

DDR5

Memory Slots

Colors

GREY WHITE

Lighting

ARGB

PCIe Slots

1 x PCIe 4.0 x16 2 x PCIe 3.0 x1

M.2 Slots

M 25110/22110/2580/2280 PCIe 5.0 x4 M 25110/22110/2580/2280 PCIe 4.0 x4 M 25110/22110/2580/2280 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek 2.5 Gb/s

WiFi

Wifi 6E

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

HDD LED Header

Temperature Sensor Headers

Thunderbolt Headers

COM Port Headers

Main Power

24-pin

CPU Power

8-pin 4-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Audio Chipset

Realtek

Audio Channels

7.1

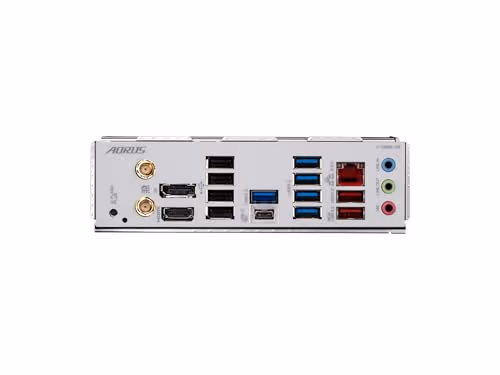

Back Panel Ports

1 x Q-Flash Plus button 2 x antenna connectors (2T2R) 1 x DisplayPort 1 x HDMI port 1 x USB Type-C® port with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 5 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks

Product Information

Manufacturer

Gigabyte

Series

AORUS

Variant

B650 ELITE AX ICE

Release Year

2024

Manufacturer Color

White

UPC

889523040362

EAN

0889523040362

Part Numbers

B650 AORUS ELITE AX ICE B650 A ELITE AX ICE

BuildCores ID

f68dgjydz

See an issue?Report an issue on OpenDB

Motherboard

Gigabyte B650 AORUS ELITE AX ICE DDR5 ATX

Name: Gigabyte B650 AORUS ELITE AX ICE DDR5 ATX
Brand: Gigabyte
SKU: f68dgjydz

SocketAM5

Form FactorATX

ChipsetAMD B650

Best Price

$255.08

via

	FREE s/h	$255.08
