Product Information

Manufacturer

Gigabyte

Series

X570S AORUS MASTER

Variant

rev 1.0

Release Year

2021

Manufacturer Color

Unknown

UPC

889523028735

EAN

0889523028735

Part Numbers

X570S AORUS MASTER

BuildCores ID

fl39t2fuo

General Specifications

Socket

AM4

Form Factor

ATX

Chipset

AMD X570

Max Memory

128 GB

Memory Type

DDR4

Memory Slots

Colors

None

PCIe Slots

3 x PCIe 4.0 x16 2 x PCIe 3.0 x16 1 x PCIe 4.0 x4

M.2 Slots

M 2242/2280/22110 PCIe 4.0 x4/x2 M 2242/2280/22110 PCIe 4.0 x4/x2 M 2242/2280/22110 SATA and PCIe 4.0 x4/x2

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Intel 2.5 Gb/s

WiFi

Unknown

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Unknown

Case Fan Headers

Unknown

Pump Headers

Unknown

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

Unknown

RGB 12V Headers

Unknown

Power Button Header

Unknown

Reset Button Header

Unknown

Power LED Header

Unknown

HDD LED Header

Unknown

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

Unknown

CPU Power

None

ECC Support

Yes

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Yes

Audio Chipset

Realtek ALC1220-VB

Audio Channels

7.1

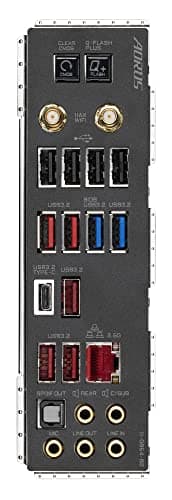

Back Panel Ports

1 x Q-Flash Plus button 1 x Clear CMOS button 2 x SMA antenna connectors (2T2R) 1 x USB Type-C port with USB 3.2 Gen 2x2 support 5 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks

See an issue?Report an issue on OpenDB

Motherboard

GIGABYTE X570S AORUS MASTER

	—	N/A
Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	Out of stock	N/A via Amazon Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	Out of stock	N/A via Amazon Loading... Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History

Loading chart...

* Amazon pricing is not included in price history graphs.

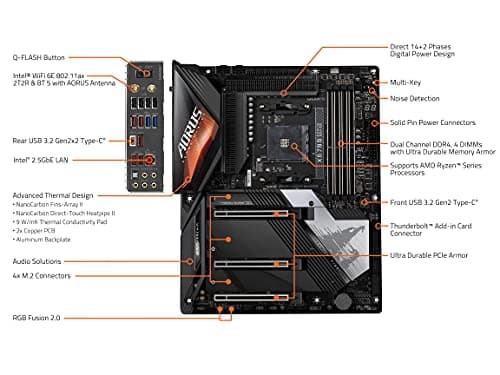

Additional Features

• Supports AMD Ryzen 5th Gen/ 4th Gen/ 3rd Gen/ 2nd Gen

• Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs

• Direct 14 plus2 Phases Infineon Digital VRM Solution with 70A Power Stage

• Advanced Thermal Solution with Fins-Array II, Direct Touch Heatpipe II, M.2 Thermal Guard III and Thermal Backplate

• Intel WiFi 6E 802.11ax & BT 5.2

Additional Features

• Supports AMD Ryzen 5th Gen/ 4th Gen/ 3rd Gen/ 2nd Gen

• Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs

• Direct 14 plus2 Phases Infineon Digital VRM Solution with 70A Power Stage

• Advanced Thermal Solution with Fins-Array II, Direct Touch Heatpipe II, M.2 Thermal Guard III and Thermal Backplate

• Intel WiFi 6E 802.11ax & BT 5.2
