Product Information

Manufacturer

ASUS

Series

PRIME

Variant

H510M-E

Release Year

2023

Manufacturer Color

Unknown

UPC

195553127769

EAN

0195553127769

Part Numbers

H510M-E PRIME H510M-E PRIMEH510M-E

BuildCores ID

fuz8tm4m2

General Specifications

Socket

LGA 1200

Form Factor

Micro ATX

Chipset

Intel H510

Max Memory

64 GB

Memory Type

DDR4

Memory Slots

Colors

None

PCIe Slots

1 x PCIe 4.0 x16 2 x PCIe 3.0 x1

M.2 Slots

M 2242 PCIe3.0x4 M 2260 PCIe3.0x4 M 2280 PCIe3.0x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

IntelI219-V 1 Gb/s

WiFi

Unknown

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Unknown

Case Fan Headers

Unknown

Pump Headers

Unknown

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

Unknown

RGB 12V Headers

Unknown

Power Button Header

Unknown

Reset Button Header

Unknown

Power LED Header

Unknown

HDD LED Header

Unknown

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

Unknown

CPU Power

None

ECC Support

RAID Support

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Yes

Audio Chipset

RealtekALC897/887

Audio Channels

7.1

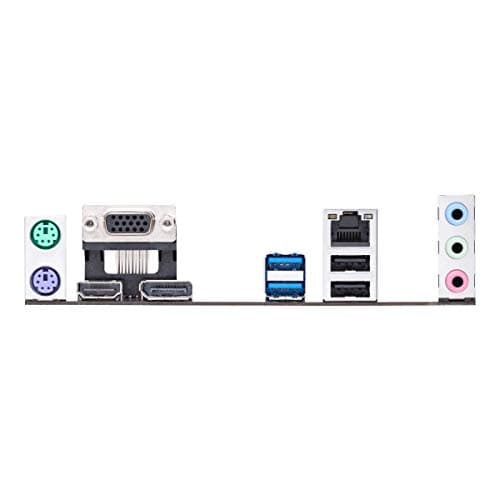

Back Panel Ports

2xUSB3.2Gen1ports(2xType-A) 2xUSB2.0ports(2xType-A) 1xDisplayPort 1xD-Subport 1xHDMIport 1xIntelI219-V1GbEthernetport 3xAudiojacks 1xPS/2Keyboard(purple)port 1xPS/2Mouse(green)port

See an issue?Report an issue on OpenDB

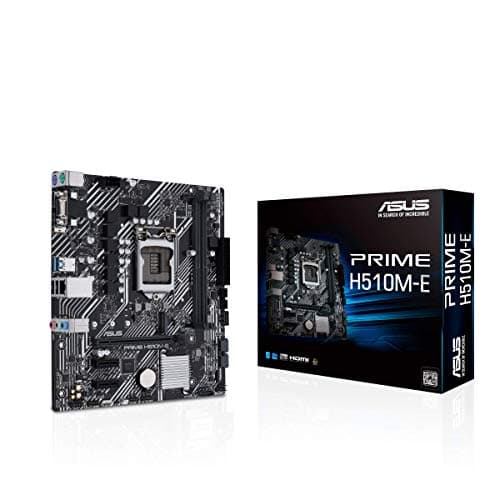

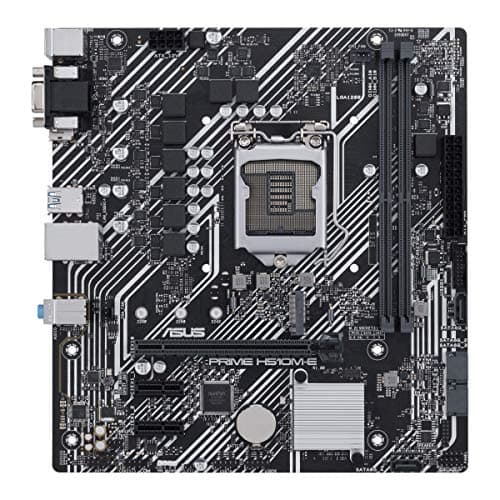

Motherboard

ASUSPRIMEH510M-E

	FREE s/h	N/A
Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	FREE s/h	—	Out of stock	N/A via Amazon Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	FREE s/h	—	Out of stock	N/A via Amazon Loading... Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History

Loading chart...

* Amazon pricing is not included in price history graphs.

Additional Features

• Intel LGA 1200 socket: Ready for 11th Gen Intel Core processors

• 5X Protection III: all-round protection with LANGuard, DRAM overcurrent protection, overvoltage protection, SafeSlot Core safeguards and stainless-steel back I/O

• ASUS OptiMem: ASUS OptiMem proprietary trace layout allows memory kits to operate at higher frequencies with lower voltages to maximize system performance

• Ultrafast connectivity: PCIe 4.0, 32Gbps M.2 slot, Intel 1 Gb Ethernet and USB 3.2 Gen 1 Type-A

• Comprehensive cooling: PCH heatsink and Fan Xpert

Additional Features

• Intel LGA 1200 socket: Ready for 11th Gen Intel Core processors

• 5X Protection III: all-round protection with LANGuard, DRAM overcurrent protection, overvoltage protection, SafeSlot Core safeguards and stainless-steel back I/O

• ASUS OptiMem: ASUS OptiMem proprietary trace layout allows memory kits to operate at higher frequencies with lower voltages to maximize system performance

• Ultrafast connectivity: PCIe 4.0, 32Gbps M.2 slot, Intel 1 Gb Ethernet and USB 3.2 Gen 1 Type-A

• Comprehensive cooling: PCH heatsink and Fan Xpert
