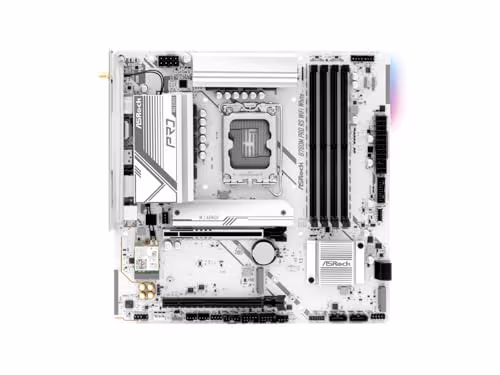

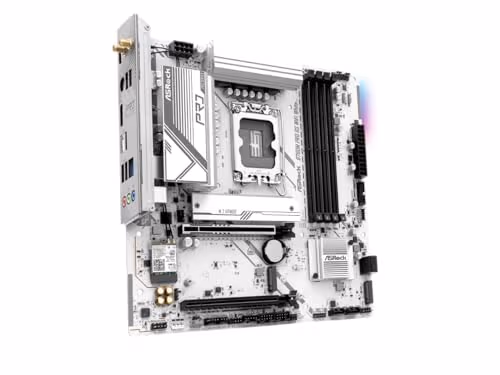

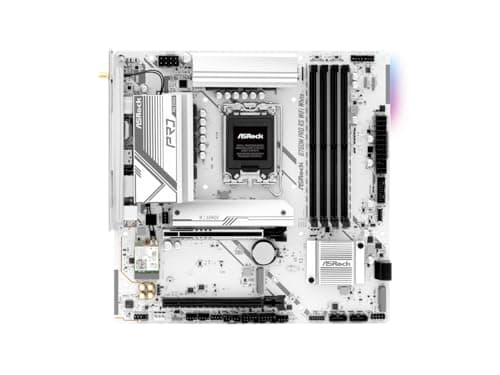

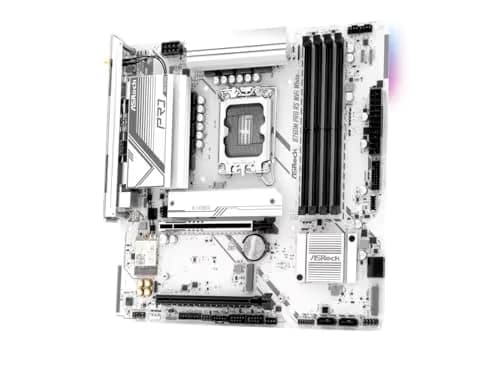

ASRock B760M Pro RS WiFi White DDR5 Micro ATX image

ASRock B760M Pro RS WiFi White DDR5 Micro ATX main image

Product Information

Manufacturer

ASRock

Series

B760M

Variant

Pro RS WiFi White

Release Year

2024

Manufacturer Color

White

UPC

None

EAN

4710483947087

Part Numbers

B760M Pro RS WiFi White B760M PRO RS WIFI WHITE 90-MXBPW0-A0UAYAZ

BuildCores ID

fww63ske7

General Specifications

Socket

LGA 1700

Form Factor

Micro ATX

Chipset

Intel B760

Max Memory

256 GB

Memory Type

DDR5

Memory Slots

Colors

WHITE

PCIe Slots

1 x PCIe 5.0 x16 1 x PCIe 3.0 x4

M.2 Slots

M 2242/2260/2280 PCIe 4.0 x4 M 2280 PCIe 4.0 x4 M 2280 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek Dragon RTL8125BG 2.5 Gb/s

WiFi

Wifi 6E Bluetooth 5.3

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

Unknown

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

24-pin

CPU Power

8-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Clear CMOS Button

Audio Chipset

Realtek

Audio Channels

7.1

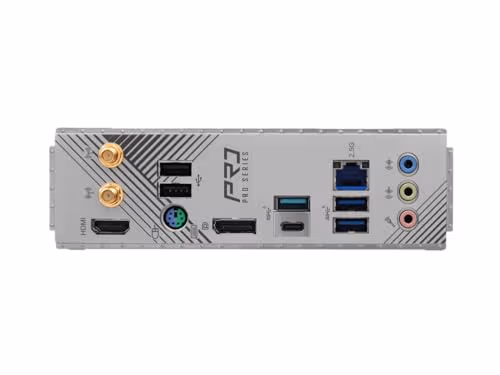

Back Panel Ports

2 x Antenna Ports 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x DisplayPort 1.4 1 x USB 3.2 Gen1 Type-C Port 3 x USB 3.2 Gen1 Type-A Ports 2 x USB 2.0 Ports 1 x RJ-45 LAN Port

See an issue?Report an issue on OpenDB

Motherboard

ASRock B760M Pro RS WiFi White DDR5 Micro ATX

Name: ASRock B760M Pro RS WiFi White DDR5 Micro ATX
Brand: ASRock
SKU: fww63ske7

Best Price

$132.99

via

	FREE s/h	$132.99
Loading... Loading
	FREE s/h	N/A
Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	FREE s/h	—	In stock	$132.99 via Walmart Loading... Loading
	FREE s/h	—	Unavailable	N/A via Amazon Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	FREE s/h	—	In stock	$132.99 via Walmart Loading... Loading
	FREE s/h	—	Unavailable	N/A via Amazon Loading... Loading

* BuildCores may receive compensation for affiliate sales through these links
