General Specifications
Socket
LGA 1851
Form Factor
ATX
Chipset
Intel Z890
Max Memory
192 GB
Memory Type
DDR5
Memory Slots
4
Colors
BLACK
GREY
Lighting
None
PCIe Slots
1 x PCIe 5.0 x16
3 x PCIe 4.0 x16
M.2 Slots
M 2280/22110 PCIe 5.0 x4
M 2280 PCIe 4.0 x4
M 2280/22110 PCIe 4.0 x4
M 2242/2260/2280 PCIe 4.0 x4
SATA 6Gb/s
4
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Realtek 2.5 Gb/s
WiFi
None
USB 2.0
2
USB 3.2 Gen 1
2
USB 3.2 Gen 2
1
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
4
Pump Headers
1
CPU Optional Fan Headers
1
ARGB 5V Headers
3
RGB 12V Headers
1
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
Unknown
Thunderbolt Headers
1
COM Port Headers
1
Main Power
24-pin
CPU Power
8-pin
8-pin
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
Yes
Audio Chipset
Realtek
Audio Channels
7.1
Back Panel Ports
1 x USB 20Gbps port
1 x USB 10Gbps port
2 x USB 5Gbps ports
2 x USB 5Gbps ports
1 x DisplayPort
1 x HDMI port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
Product Information
Manufacturer
ASUS
Series
PRIME
Variant
Z890-P-CSM
Release Year
2024
Manufacturer Color
Black/Silver
UPC
None
EAN
None
Part Numbers
PRIME Z890-P-CSM
BuildCores ID
fyphj0hts
Motherboard

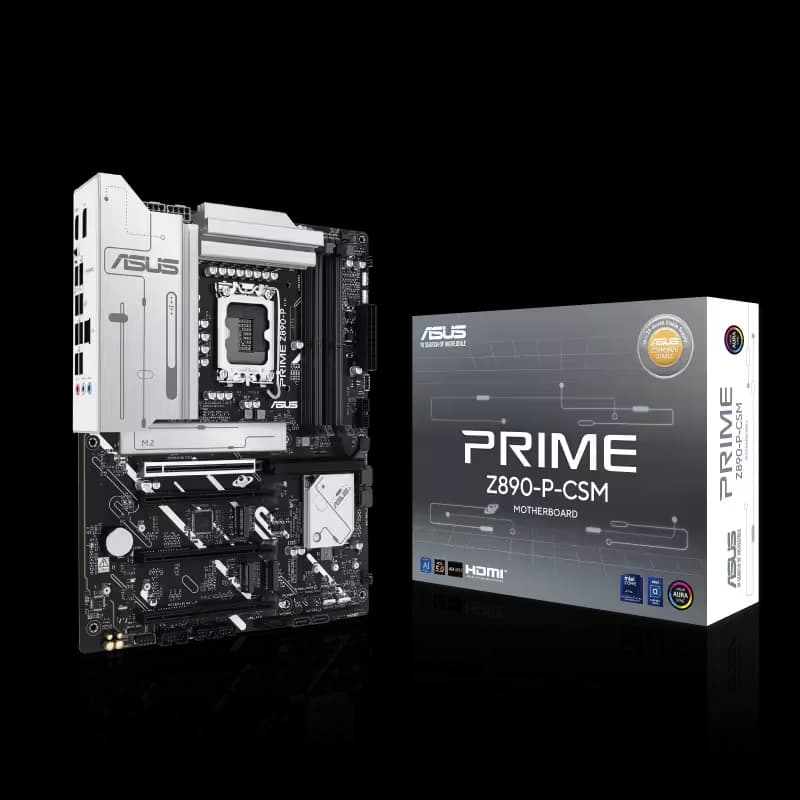

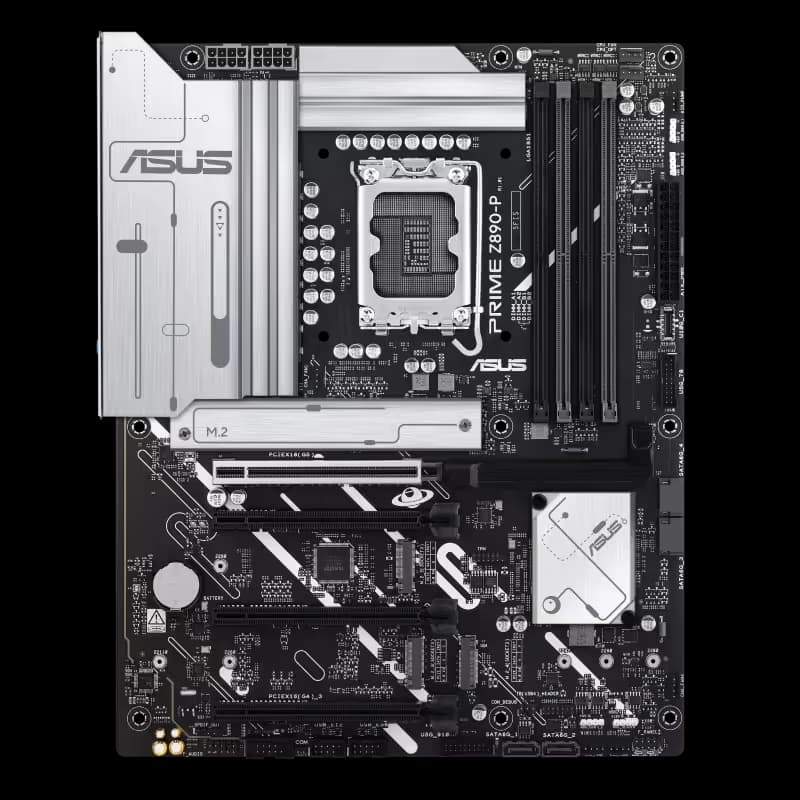

Asus Z890-P-CSM PRIME DDR5 ATX
SocketLGA 1851
Form FactorATX
ChipsetIntel Z890
