Product Information

Manufacturer

Gigabyte

Series

AORUS

Release Year

2021

Manufacturer Color

Unknown

UPC

889523027172

EAN

0889523027172

Part Numbers

Z590 AORUS XTREME

BuildCores ID

g90qbj383

General Specifications

Socket

LGA 1200

Form Factor

EATX

Chipset

Intel Z590

Max Memory

128 GB

Memory Type

DDR4

Memory Slots

Colors

None

PCIe Slots

2 x PCIe 4.0 x16 1 x PCIe 4.0 x8 1 x PCIe 3.0 x4

M.2 Slots

M 2242/2280/22110 PCIe 4.0 x4/x2 M 2242/2280/22110 SATA and PCIe 3.0 x4/x2 M 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Aquantia 10 Gb/s Intel 2.5 Gb/s

WiFi

Unknown

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Unknown

Case Fan Headers

Unknown

Pump Headers

Unknown

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

Unknown

RGB 12V Headers

Unknown

Power Button Header

Unknown

Reset Button Header

Unknown

Power LED Header

Unknown

HDD LED Header

Unknown

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

Unknown

CPU Power

None

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Yes

Audio Chipset

Realtek ALC1220-VB

Audio Channels

7.1

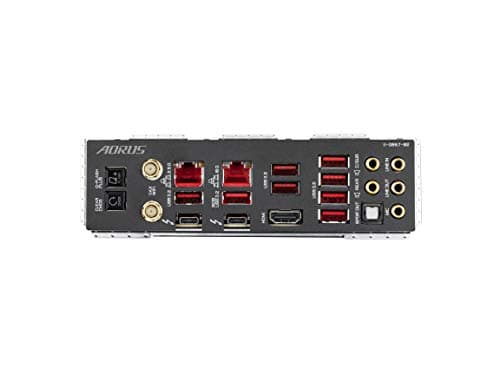

Back Panel Ports

1 x Q-Flash Plus button 1 x Clear CMOS button 2 x SMA antenna connectors (2T2R) 2 x Thunderbolt 4 connector (USB Type-C port with USB 3.2 Gen 2 support) 8 x USB 3.2 Gen 2 Type-A ports (red) 1 x HDMI port 2 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks

See an issue?Report an issue on OpenDB

Motherboard

Z590 AORUS XTREME

	—	N/A
Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	Out of stock	N/A via Amazon Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	Out of stock	N/A via Amazon Loading... Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History

Loading chart...

* Amazon pricing is not included in price history graphs.

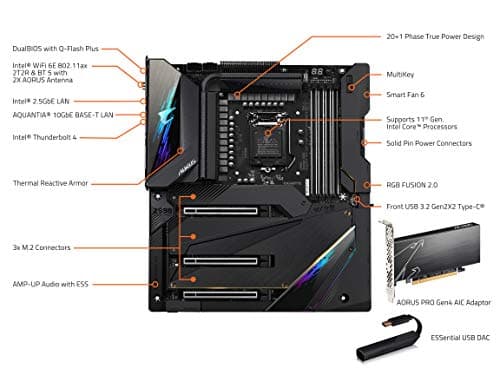

Additional Features

• Supports 11th and 10th Gen Intel Core Series Processors

• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs

• 20+1 Phases Digital VRM Solution with 100A Smart Power Stage

• Tantalum Polymer Capacitors Array

• XTREME MEMORY with SMT DIMM and Shielded Memory Routing

Additional Features

• Supports 11th and 10th Gen Intel Core Series Processors

• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs

• 20+1 Phases Digital VRM Solution with 100A Smart Power Stage

• Tantalum Polymer Capacitors Array

• XTREME MEMORY with SMT DIMM and Shielded Memory Routing
