General Specifications
Socket
LGA 1700
Form Factor
ATX
Chipset
Intel Z790
Weight
Unknown
Max Memory
192 GB
Memory Type
DDR5
Memory Slots
4
Colors
BLACK
Lighting
ARGB
RGB
Display
PCIe Slots
1 x PCIe 5.0 x16
1 x PCIe 4.0 x4
1 x PCIe 3.0 x1
M.2 Slots
M 2242/2260/2280/22110 PCIe 4.0 x4
M 2280 PCIe 4.0 x4
M 2280 PCIe 4.0 x4
M 2242/2260/2280/22110 PCIe 4.0 x4
M 2242/2260/2280 PCIe 4.0 x4 & SATA
SATA 6Gb/s
4
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Intel 2.5 Gb/s
WiFi
WiFi 7
USB 2.0
2
USB 3.2 Gen 1
1
USB 3.2 Gen 2
0
USB 3.2 Gen 2x2
1
USB 4.0
0
USB 4 80Gbps
0
CPU Fan Headers
1
Case Fan Headers
5
Pump Headers
1
CPU Optional Fan Headers
1
ARGB 5V Headers
3
RGB 12V Headers
1
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
1
Thunderbolt Headers
1
COM Port Headers
0
Main Power
24-pin
CPU Power
8-pin
8-pin
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
Yes
Audio Chipset
Realtek ALC4080
Audio Channels
7.1

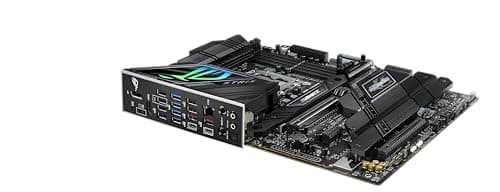

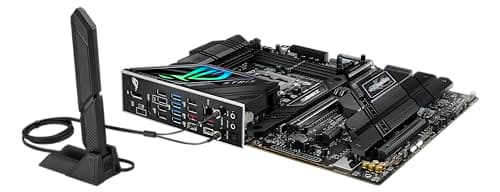

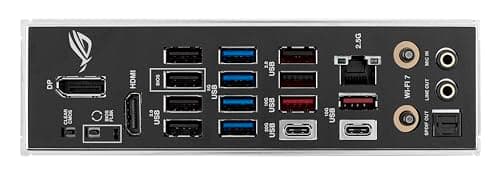

Back Panel Ports
1 x USB 20Gbps port (1 x USB Type-C®)
3 x USB 10Gbps ports (2 x Type-A+1 x USB Type-C®)
4 x USB 5Gbps ports (4 x Type-A)
6 x USB 2.0 ports (6 x Type-A)
1 x DisplayPort
1 x HDMITM port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Display Outputs
Unknown
Product Information
Manufacturer
ASUS
Series
ROG STRIX
Variant
Z790-F GAMING WIFI II
Release Year
2023
Manufacturer Color
Black
UPC
197105356542
EAN
0197105356542
Part Numbers
ROG STRIX Z790-F GAMING WIFI II
90MB1FM0-M0AAY0
90MB1FM0-M0EAY0
BuildCores ID
gp6u0g5lf
Motherboard
3D

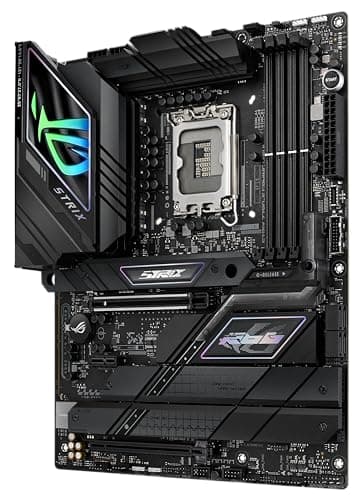

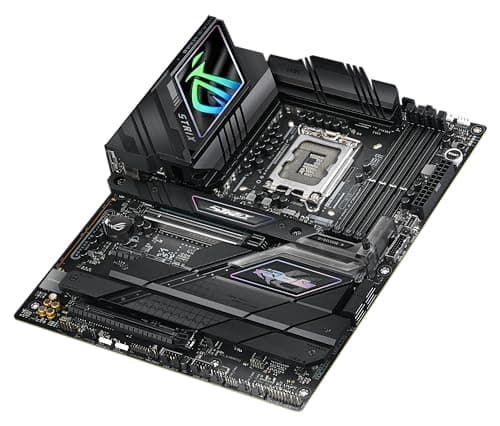

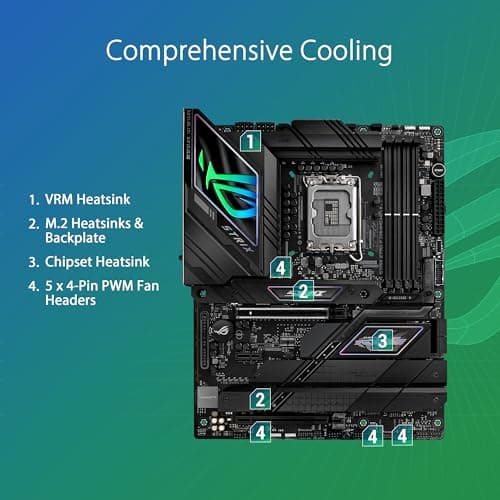

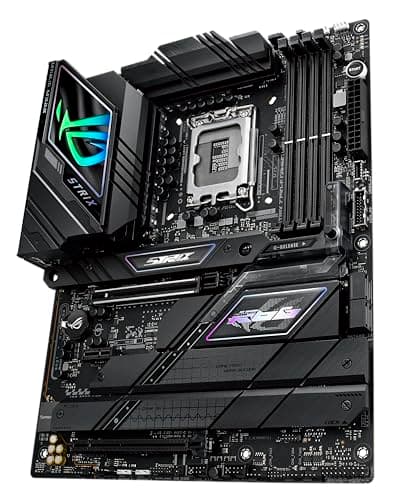

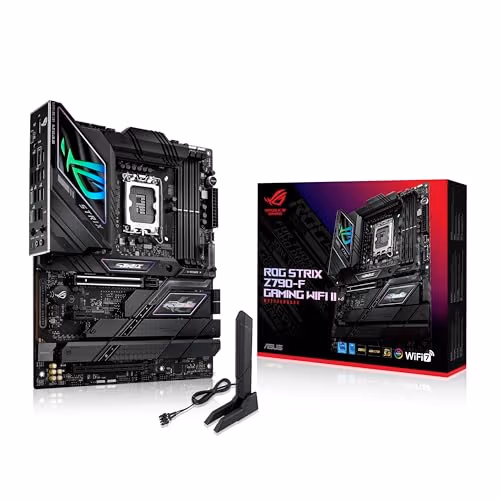

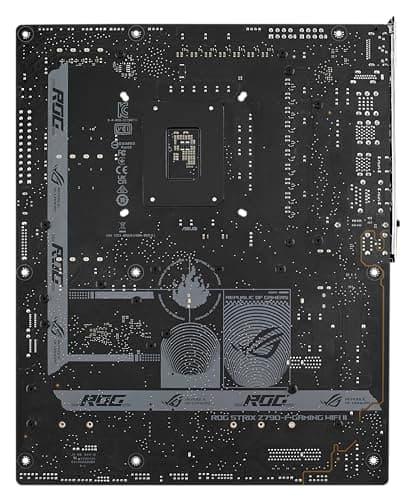

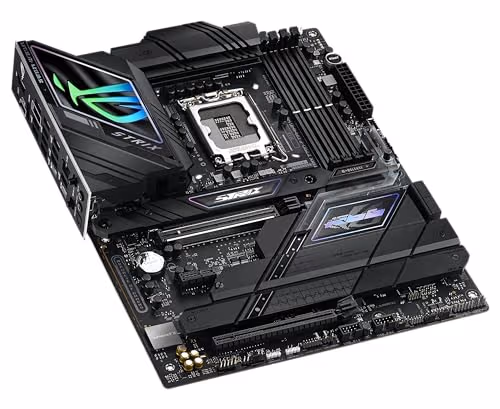

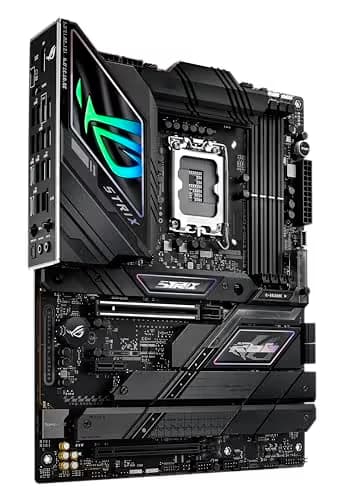

Asus ROG STRIX Z790-F GAMING WIFI II DDR5 ATX
SocketLGA 1700
Form FactorATX
ChipsetIntel Z790
  | — | N/A |
MERCHANT | SHIPPING | PROMO | AVAILABILITY | TOTAL |
| — | — | Unavailable | N/A via Amazon |
MERCHANT | SHIPPING | PROMO | AVAILABILITY | TOTAL |
| — | — | Unavailable | N/A via Amazon |
* BuildCores may receive compensation for affiliate sales through these linksReport a pricing issue
Price History
Loading price history...
* Amazon pricing is not included in price history graphs.
