Product Information
Manufacturer
ASUS
Series
PRIME
Release Year
2021
Manufacturer Color
Unknown
UPC
195553101554
EAN
0195553101554
Part Numbers
PRIME Z590-P
BuildCores ID
gu4z9gmr1
General Specifications
Socket
LGA 1200
Form Factor
ATX
Chipset
Intel Z590
Max Memory
128 GB
Memory Type
DDR4
Memory Slots
4
Colors
None
PCIe Slots
1 x PCIe 4.0 x16 1 x PCIe 3.0 x4 2 x PCIe 3.0 x1
M.2 Slots
M 2242/2260/2280/22110 PCIe 4.0 x4 M 2242/2260/2280 PCIe 3.0 x4 & SATA M 2242/2260/2280/22110 PCIe 3.0 x4 & SATA
SATA 6Gb/s
4
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Realtek 2.5 Gb/s
WiFi
Unknown
USB 2.0
2
USB 3.2 Gen 1
2
USB 3.2 Gen 2
1
USB 3.2 Gen 2x2
1
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
Unknown
Case Fan Headers
Unknown
Pump Headers
Unknown
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
Unknown
RGB 12V Headers
Unknown
Power Button Header
Unknown
Reset Button Header
Unknown
Power LED Header
Unknown
HDD LED Header
Unknown
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
Unknown
CPU Power
None
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
No
Clear CMOS Button
Yes
Audio Chipset
Realtek ALC897
Audio Channels
7.1
Back Panel Ports
USB 3.2 Gen 2x2 USB 3.2 Gen 2 USB 3.2 Gen 1 USB 2.0 DisplayPort HDMI Realtek 2.5Gb Ethernet Audio jacks Optical S/PDIF out port PS/2 Keyboard/Mouse combo port
Motherboard

PRIME Z590-P

Loading...
Loading
Loading...
Loading
Amazon

N/A

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
Out of stock

N/A

via Amazon

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
Out of stock

N/A

via Amazon

Loading...
Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History
Loading chart...
* Amazon pricing is not included in price history graphs.

Additional Features

Intel LGA 1200 Socket: Designed to unleash the maximum performance of 11th Gen Intel Core processors.BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS

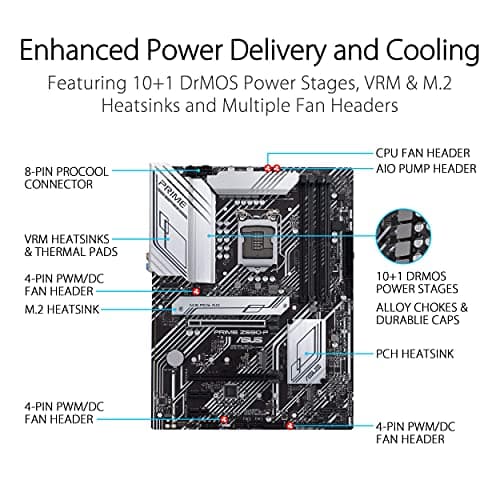

Enhanced Power Solution: 10+1 DrMOS power stages, ProCool sockets, alloy chokes and durable capacitors provide stable power delivery for the most demanding situations

Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4 utility

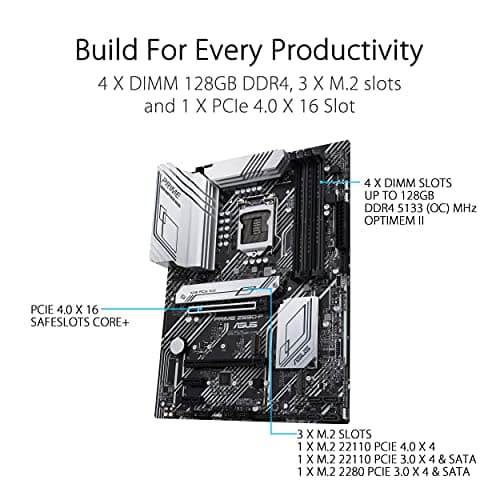

Boosted Memory Performance: ASUS OptiMem II proprietary trace layout allows memory kits to operate at higher frequencies with lower voltages to maximize system performance.

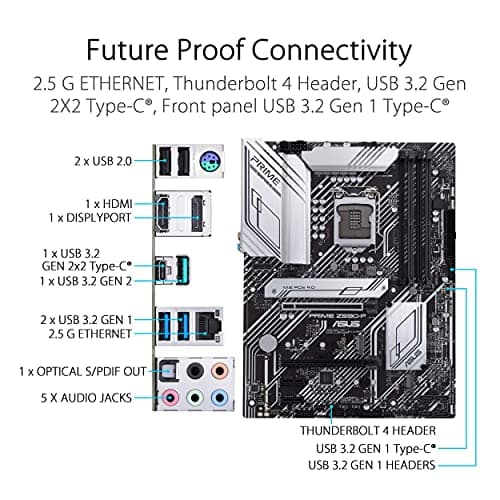

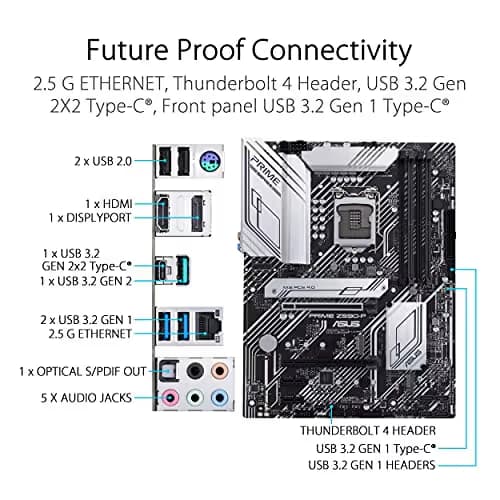

Ultrafast Connectivity: PCIe 4.0, 3x M.2, 2.5 Gb LAN, front panel USB 3.2 Gen 2X2 Type-C and Thunderbolt 4 support

Additional Features

Intel LGA 1200 Socket: Designed to unleash the maximum performance of 11th Gen Intel Core processors.BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Enhanced Power Solution: 10+1 DrMOS power stages, ProCool sockets, alloy chokes and durable capacitors provide stable power delivery for the most demanding situations

Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4 utility

Boosted Memory Performance: ASUS OptiMem II proprietary trace layout allows memory kits to operate at higher frequencies with lower voltages to maximize system performance.

Ultrafast Connectivity: PCIe 4.0, 3x M.2, 2.5 Gb LAN, front panel USB 3.2 Gen 2X2 Type-C and Thunderbolt 4 support
