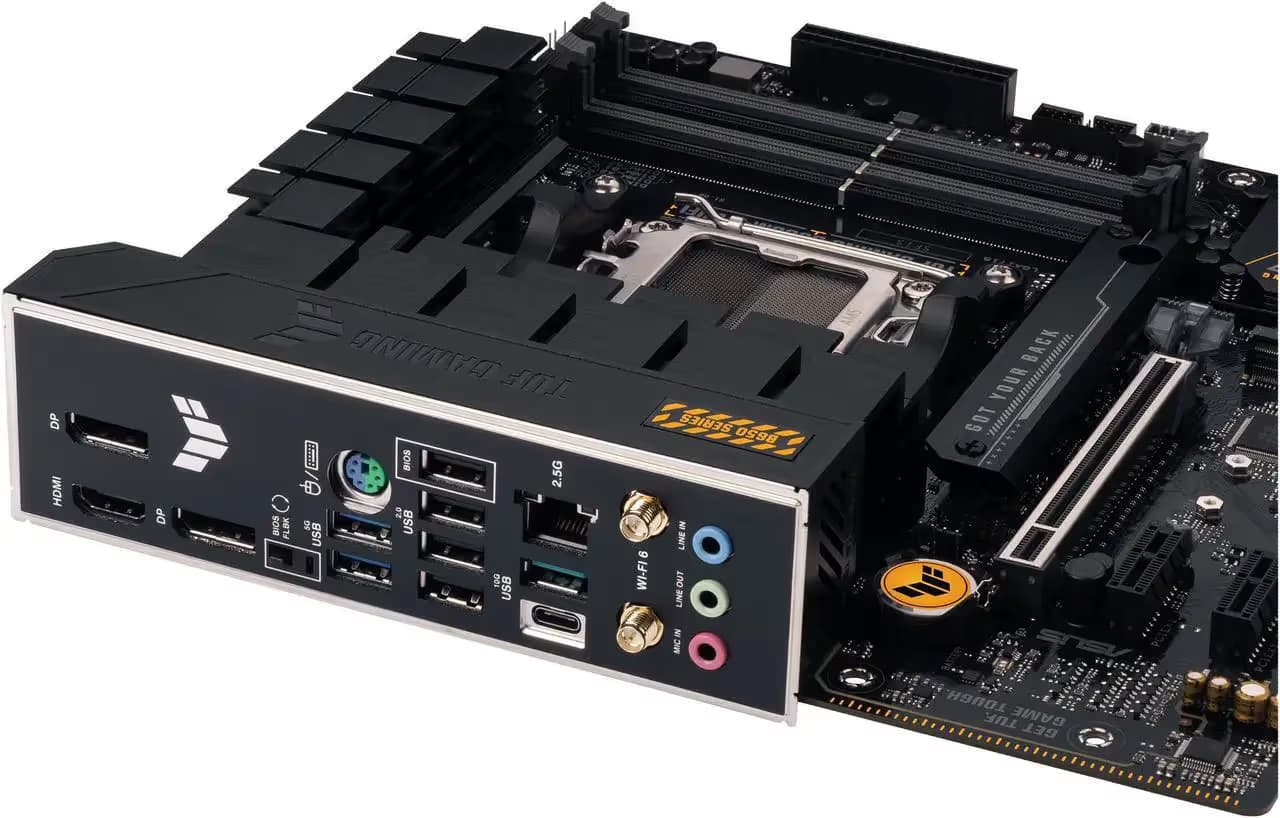

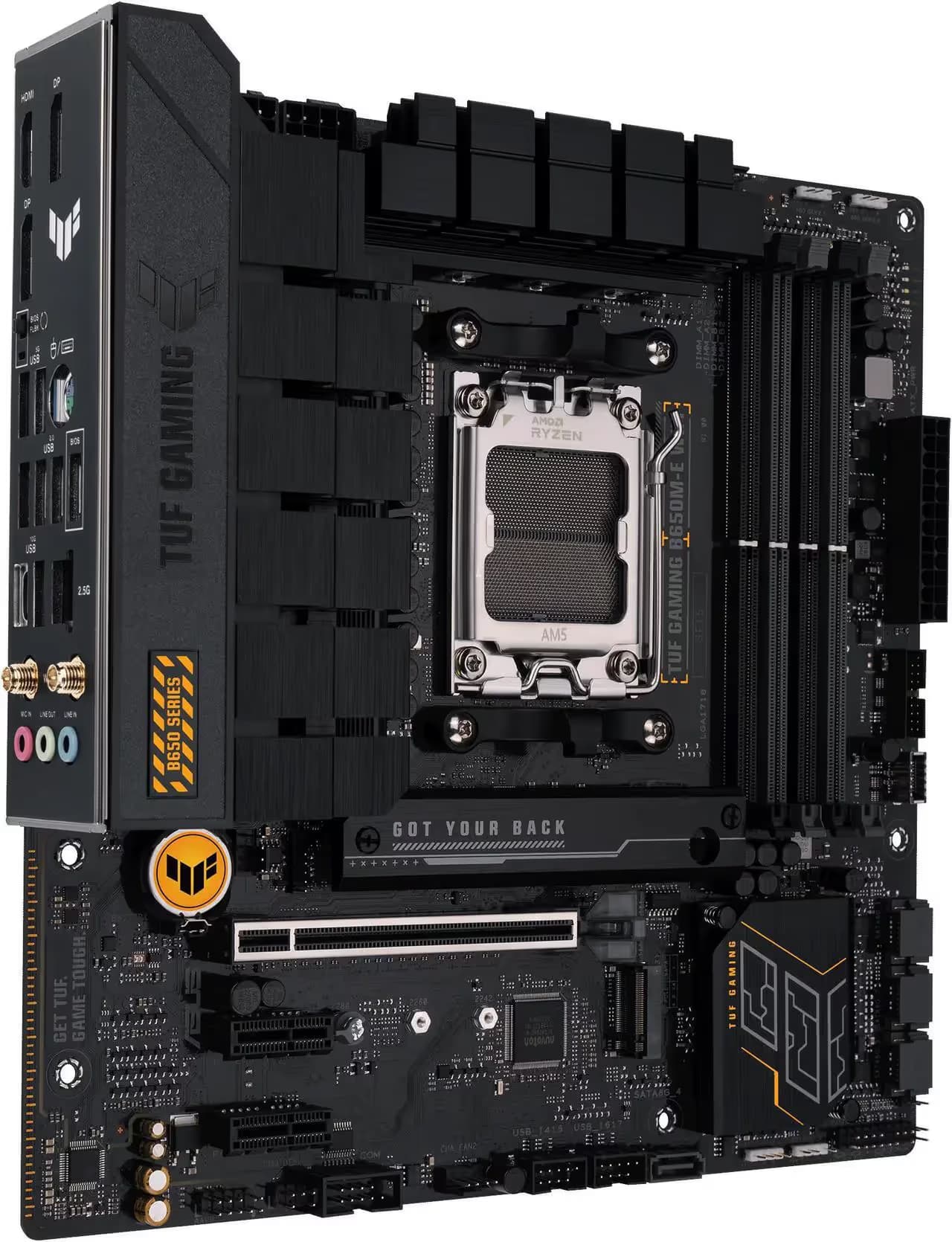

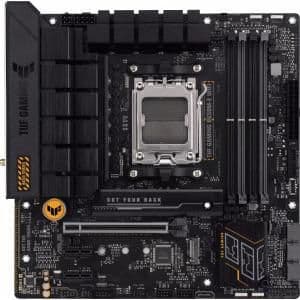

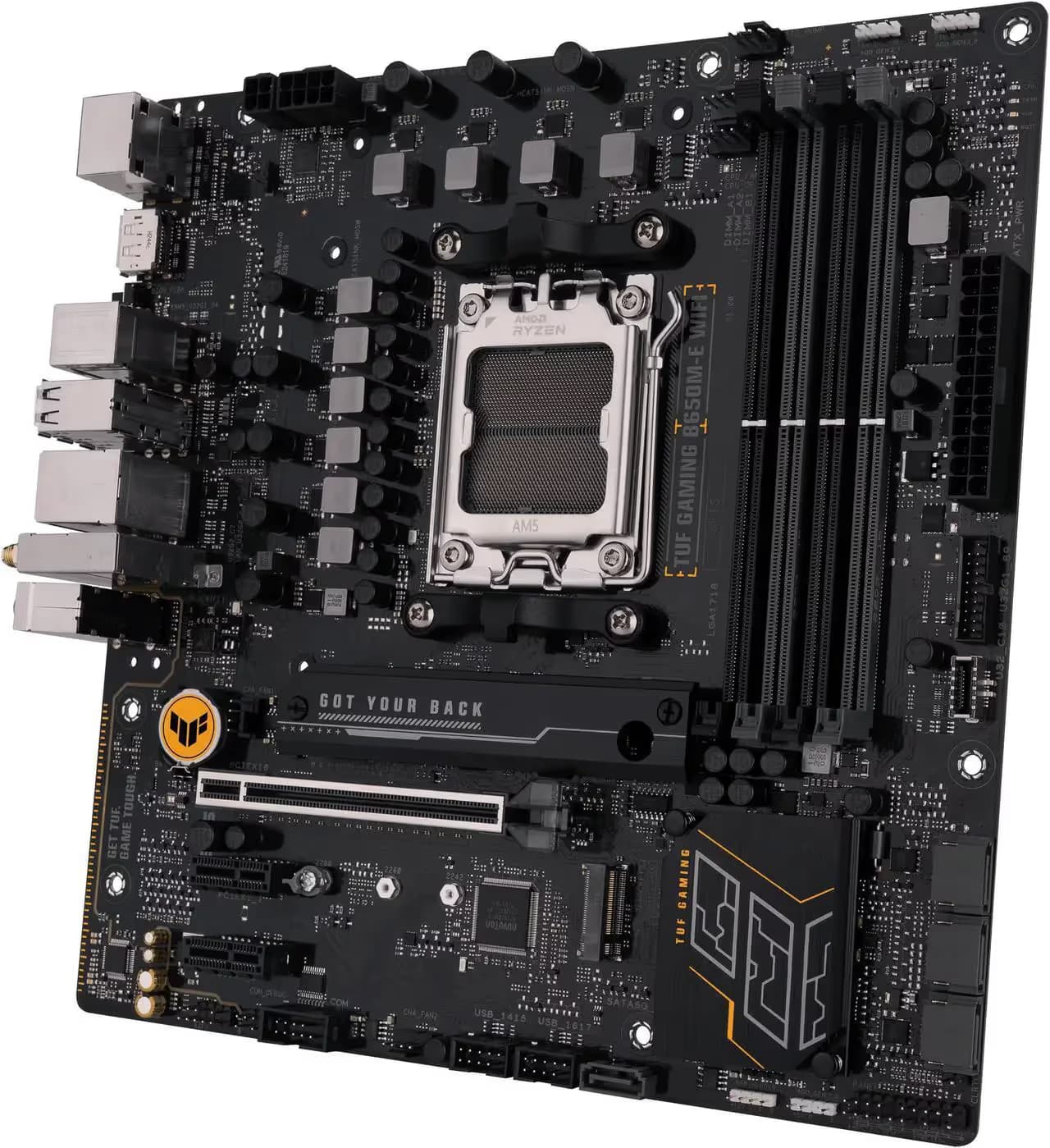

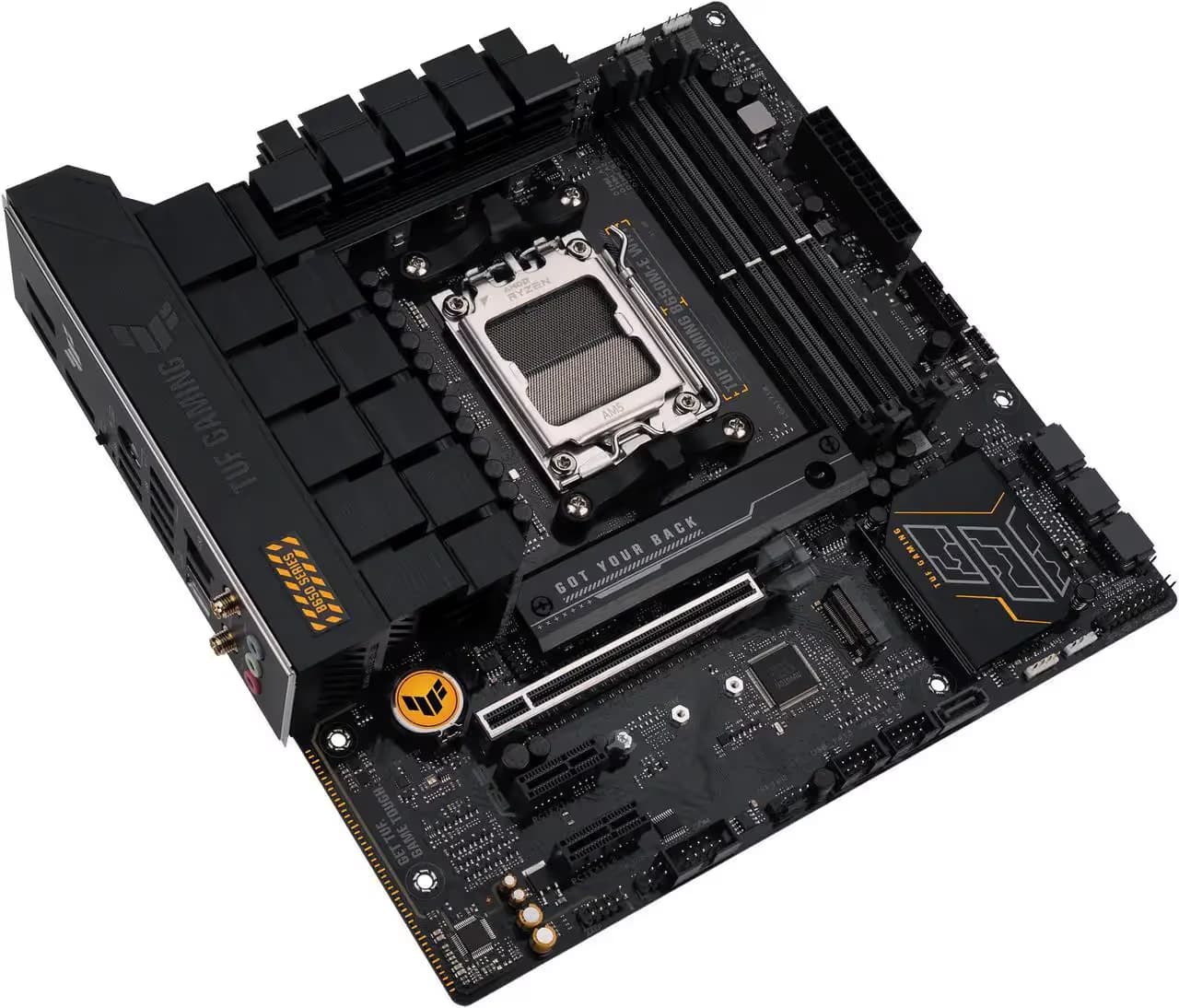

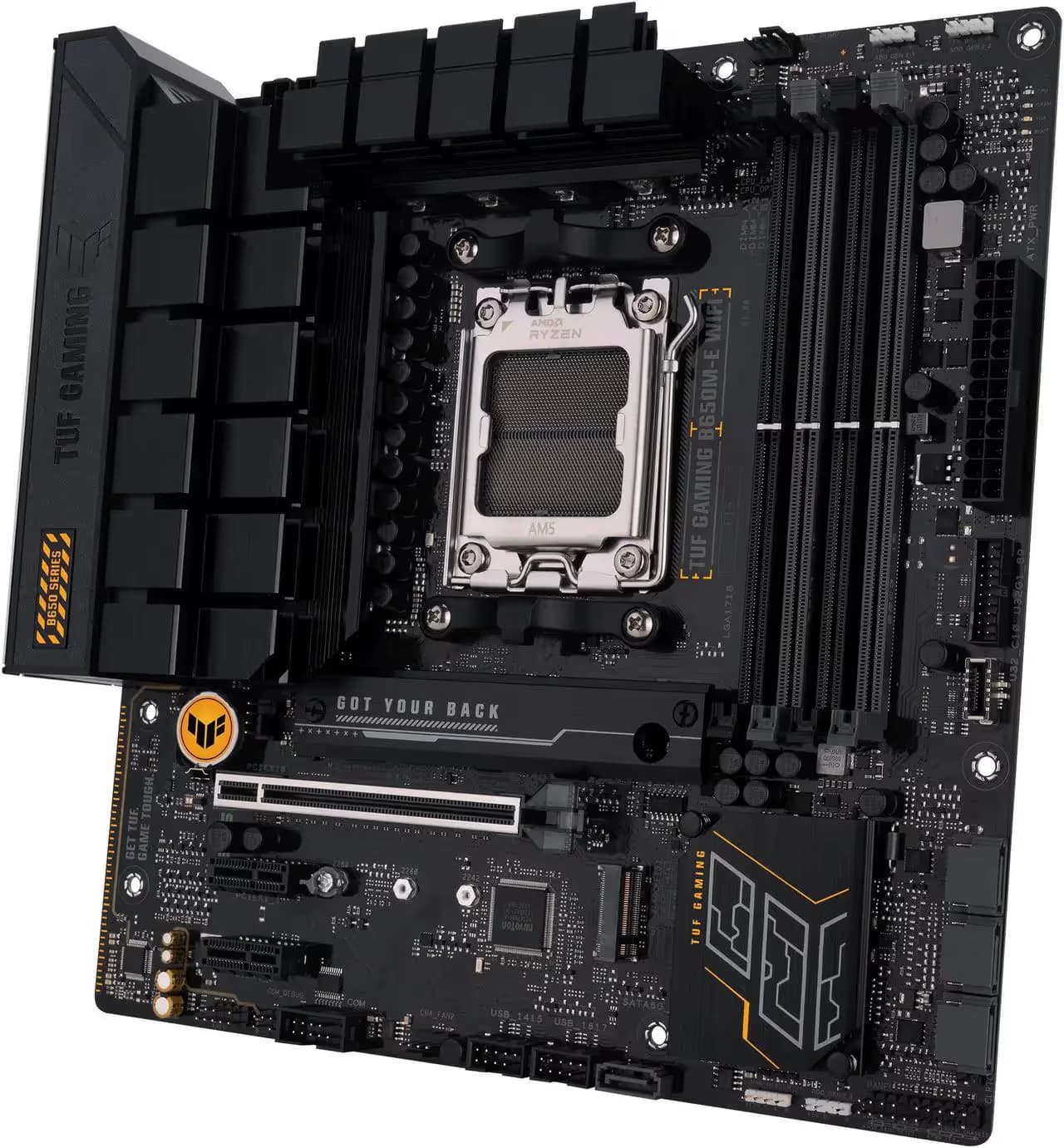

ASUS TUF GAMING B650M-E WIFI AM5 DDR5 MICRO-ATX image

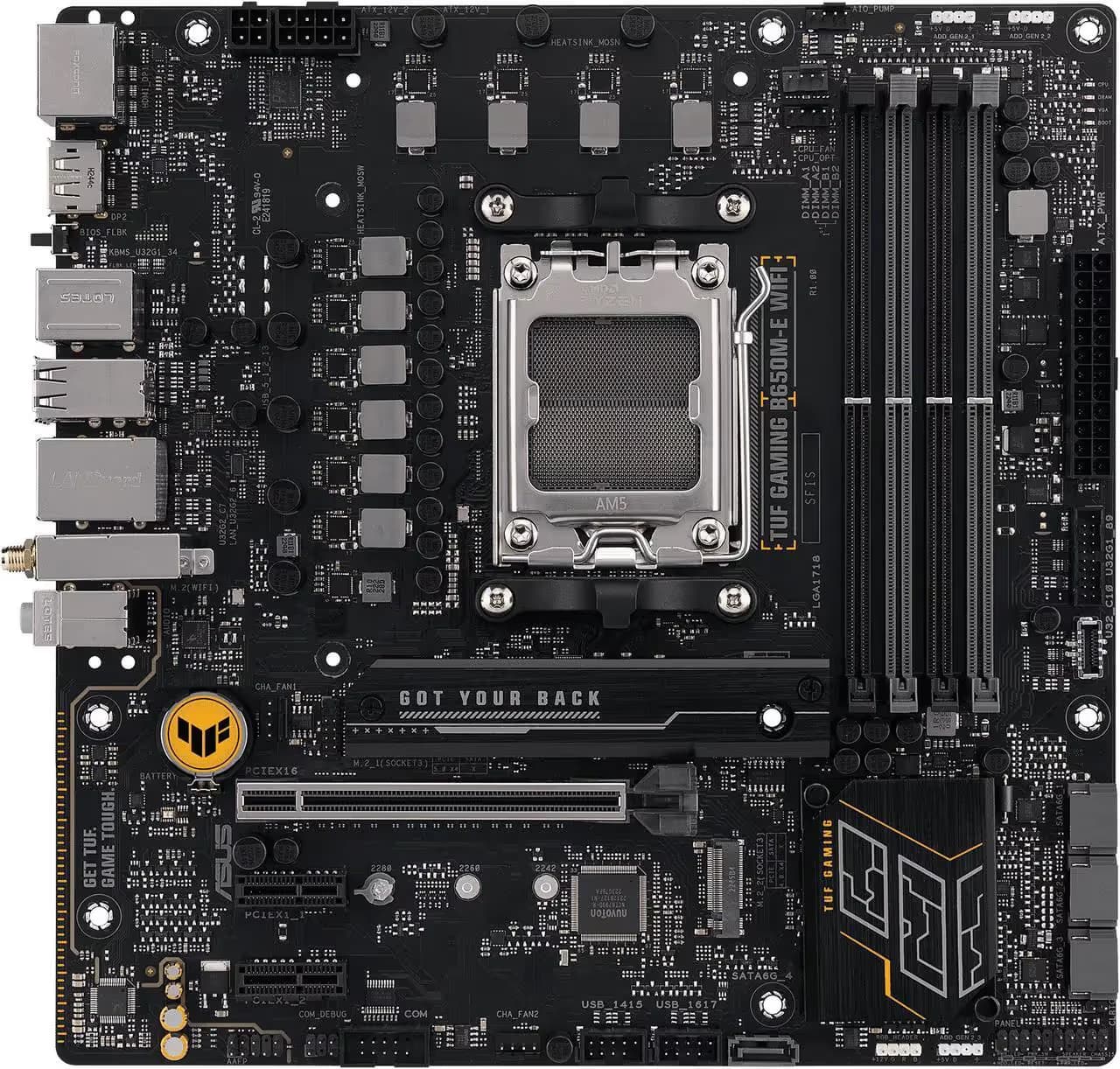

ASUS TUF GAMING B650M-E WIFI AM5 DDR5 MICRO-ATX main image

General Specifications

Socket

AM5

Form Factor

Micro ATX

Chipset

AMD B650

Max Memory

192 GB

Memory Type

DDR5

Memory Slots

Colors

BLACK GREY

Lighting

ARGB RGB

PCIe Slots

1 x PCIe 4.0 x16 2 x PCIe 4.0 x1

M.2 Slots

M 2242/2260/2280 PCIe 5.0 x4 M 2242/2260/2280 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek 2.5 Gb/s

WiFi

Wifi 6

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Thunderbolt Headers

COM Port Headers

Main Power

24-pin

CPU Power

8-pin 4-pin

ECC Support

Yes

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Audio Chipset

Realtek

Audio Channels

7.1

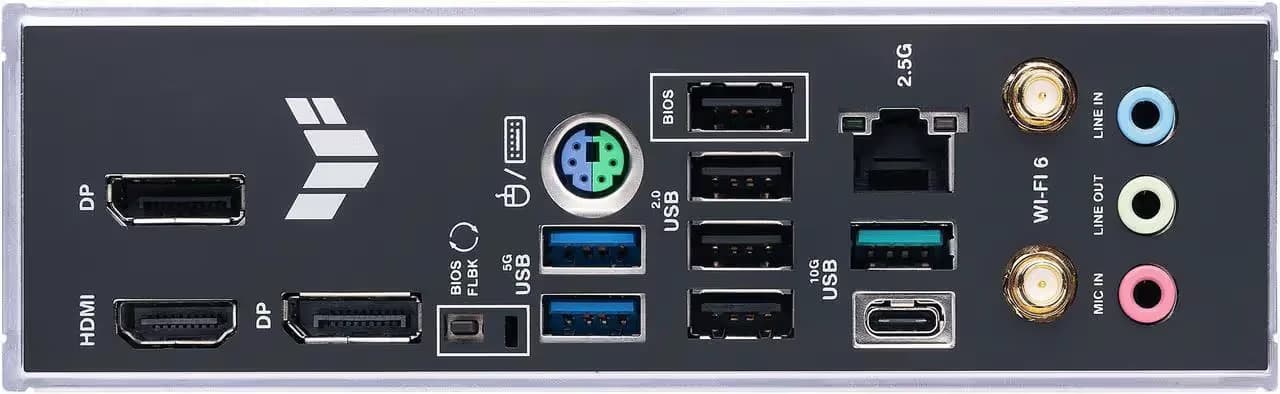

Back Panel Ports

2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C®) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 2 x DisplayPort 1 x HDMITM port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack™ button 1 x PS/2 Keyboard/Mouse combo port

Product Information

Manufacturer

ASUS

Series

TUF GAMING

Variant

B650M-E WIFI

Release Year

2023

Manufacturer Color

Black

UPC

197105222045

EAN

None

Part Numbers

TUF GAMING B650M-E WIFI 90MB1FV0-M0EAY0

BuildCores ID

hjtua8rco

See an issue?Report an issue on OpenDB

Motherboard

ASUS TUF GAMING B650M-E WIFI AM5 DDR5 MICRO-ATX

SocketAM5

Form FactorMicro ATX

ChipsetAMD B650
